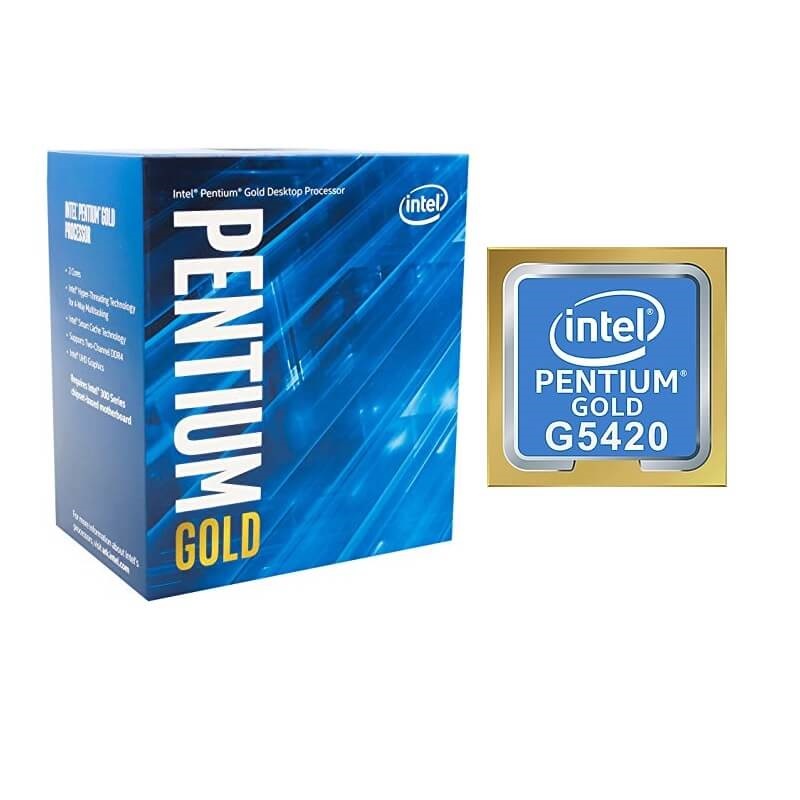

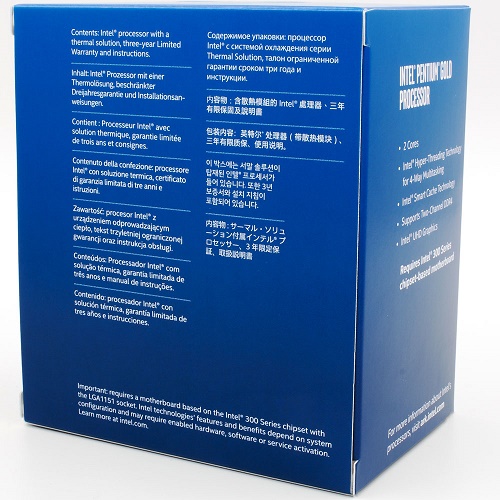

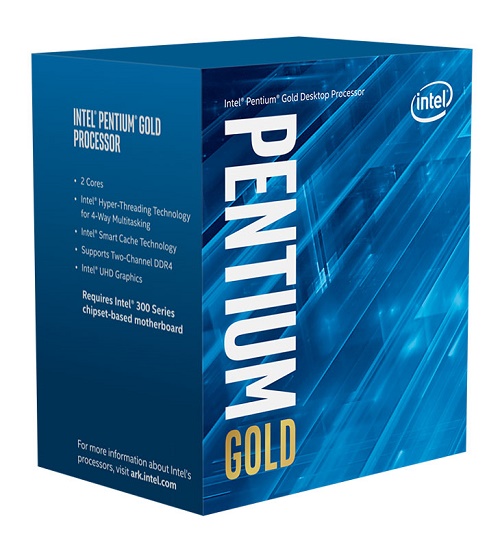

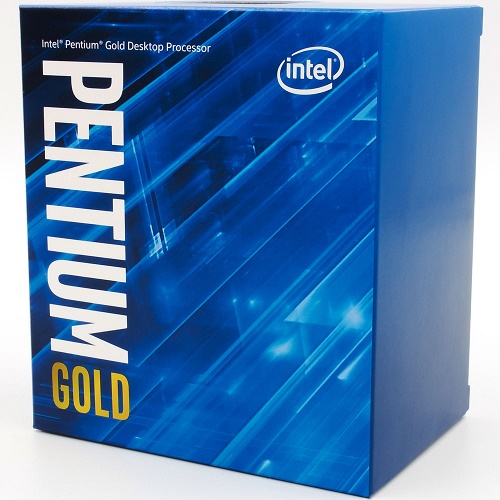

INTEL - CP-IP-G5420



INTEL PENTIUM G5420 3.8GHZ SKT1151 4MB C

Description

Intel Pentium Gold G5420 14 nm, 3.80 GHz, 4MB, 8 GT/s, 54W, 64GB, DDR4-240, ECC Memory Supported, Intel HD Graphics 610, HDMI, DP, DirectX Support, OpenGL Support, Supports up to 3 Displays.


Specification

INTEL PENTIUM GOLD G5420 PROCESSOR 4M CACHE, 3.80 GHz

Specifications:
Essentials:
-Vertical Segment: Desktop
-Product Collection: Intel® Pentium® Gold Processor Series
-Processor Number: G5420
-Status: Launched
-Launch Date: Q2'19
-Lithography: 14 nm
-Use Conditions : PC/Client/Tablet

Performance
-# of Cores: 2
-# of Threads: 4
-Processor Base Frequency: 3.80 GHz
-Cache: 4 MB Intel® Smart Cache
-Bus Speed : 8 GT/s
-TDP: 54 W

Supplemental Information
-Embedded Options Available: No

Memory Specifications
-Max Memory Size (dependent on memory type): 64 GB
-Memory Types: DDR4-2400
-Max # of Memory Channels: 2
-Max Memory Bandwidth: 37.5 GB/s
-ECC Memory Supported: Yes

-Processor Graphics:
Intel® UHD Graphics 610
-Graphics Base Frequency: 350 MHz
-Graphics Max Dynamic Frequency: 1.05 GHz
-Graphics Video Max Memory: 64 GB
-4K Support: Yes, at 60Hz
-Max Resolution (HDMI 1.4): 4096x2304@24Hz
-Max Resolution (DP): 4096x2304@60Hz
-Max Resolution (eDP - Integrated Flat Panel): 4096x2304@60Hz
-DirectX* Support: 12
-OpenGL* Support: 4.5
-Intel® Quick Sync Video: Yes
-Intel® InTru™ 3D Technology : Yes
-Intel® Clear Video HD Technology: Yes
-Intel® Clear Video Technology: Yes
-# of Displays Supported: 3
-Device ID: 0x3E90/x93

Expansion Options
-Scalability: 1S Only
-PCI Express Revision: 3.0
-PCI Express Configurations: Up to 1x16, 2x8, 1x8+2x4
-Max # of PCI Express Lanes: 16

Package Specifications
-Sockets Supported: FCLGA1151
-Max CPU Configuration: 1
-Thermal Solution Specification: PCG 2015C (65W)
-TJUNCTION: 100°C
-Package Size: 37.5mm x 37.5mm

Advanced Technologies
-Intel® Optane Memory Supported: Yes
-Intel® Turbo Boost Technology:
No
-Intel® vPro Platform Eligibility: No
-Intel® Hyper-Threading Technology: Yes
-Intel® Virtualization Technology (VT-x) : Yes
-Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
-Intel® VT-x with Extended Page Tables (EPT): Yes
-Intel® Transactional Synchronization Extensions: No
-Intel® 64: Yes
-Instruction Set: 64-bit
-Instruction Set Extensions:
Intel® SSE4.1, Intel® SSE4.2
-Idle States: Yes
-Enhanced Intel SpeedStep® Technology: Yes
-Thermal Monitoring Technologies: Yes
-Intel® Identity Protection Technology : Yes
-Intel® Stable Image Platform Program (SIPP): No

Security & Reliability
-Intel® AES New Instructions: Yes
-Secure Key: Yes
-Intel® Software Guard Extensions (Intel® SGX):
Yes with Intel® ME
-Intel® Memory Protection Extensions (Intel® MPX): Yes
-Intel® OS Guard: Yes
-Intel® Trusted Execution Technology: No
-Execute Disable Bit: Yes
-Intel® Boot Guard: Yes
