Specification

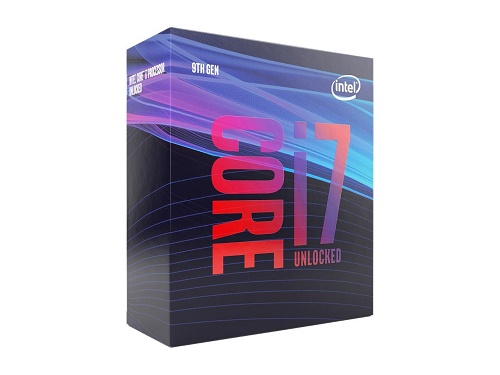

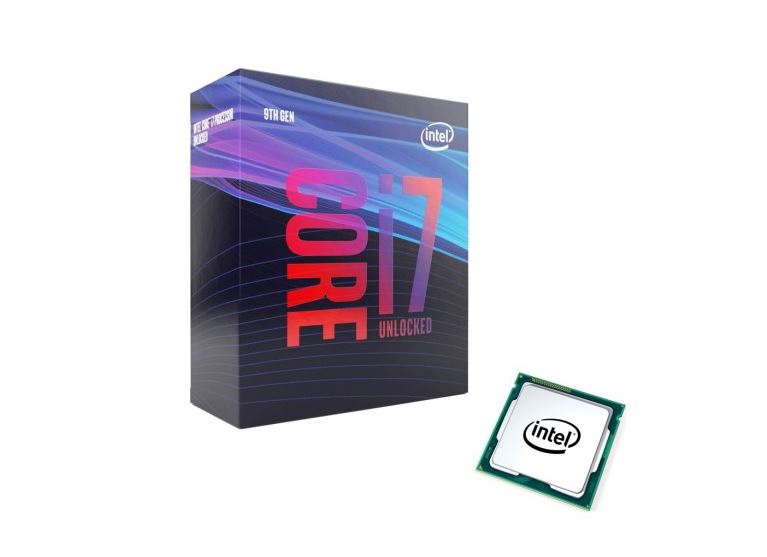

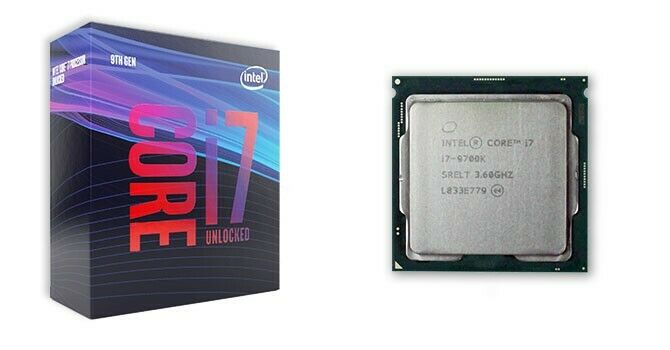

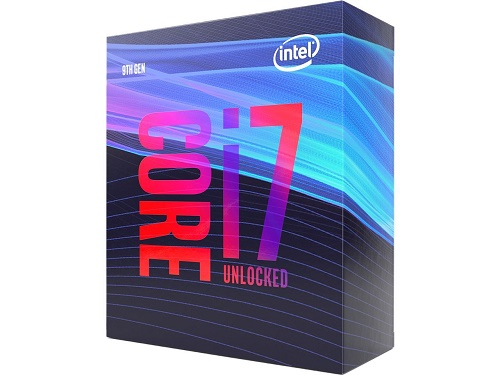

INTEL Core I7-9700K Processor
Specifications:
Essentials:
Product Collection: 9th Generation Intel Core i7 Processors
Vertical Segment: Desktop
Processor Number: i7-9700K
Lithograohy: 14 nm
Use Conditions: PC/Client/Tablet
Performance:
# of Cores: 8
# of Threads: 8
Processor Base Frequency: 3.60GHz
Max Turbo Frequency: 4.90GHz
Cache: 12MB SmartCache
Bus Speed: 8 GT/s DMI3
TDP: 95 W
Memory Specifications:
Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-2666
Max # of Memory Channels: 2
Max Memory Bandwidth: 41.6 GB/s
Processor Graphics: Intel UHD Graphics 630
Graphics Base Frequency: 350 MHz
Graphics Max Dynamic Frequency: 1.20 GHz
Graphics Video Max Memory: 64 GB
4K Support: Yes, at 60Hz
Max Resolution (HDMI 1.4): 4096x2304@24Hz
Max Resolution (DP): 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel): 4096x2304@60Hz
DirectX Support: 12
OpenGL Support: 4.5
Intel Quick Sync Video: Yes
Intel InTru 3D Technology: Yes
Intel Clear Video HD Technology: Yes
Intel Clear Video Technology: Yes
# of Displays Supported: 3
Expansion Options:
Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes: 16
Package Specifications:
Sockets Supported: FCLGA1151
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2015D (130W)
TJUNCTION: 100 C
Package Size: 37.5 x 37.5mm
Advanced Technologies:
Intel Optane Memory Supported: Yes
Intel Turbo Boost Technology: 2.0
Intel vPro Platform Eligibility: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel TSX-NI: Yes
Intel 64: Yes
Instruction Set: 64bit
Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technology: Yes
Intel Identity Protection Technology: Yes
Intel Stable Image Platform Program (SIPP): Yes
Security & Reliability:
Intel AES New Instruction: Yes
Secure Key: Yes
Intel Software Guard Extensions (Intel SGX): Yes with Intel ME
Intel Memory Protection Extensions (Intel MPX): Yes
Intel OS Guard: Yes
Intel Trusted Execution Technology: Yes
Execute Disable Bit: Yes
Intel Boot Guard: Yes
