Specification

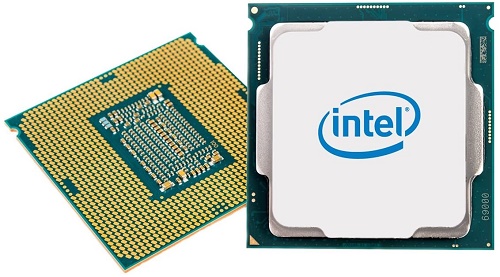

INTEL I7-8700 Processor
Specifications:
Essentials:
Product Collection: 8th Generation Core i7 Processors
Vertical Segment: Desktop
Processor Number: i7-8700
Lithography: 14 nm
Performance:
# of Cores: 6
# of Threads: 12
Processor Base Frequency: 3.20GHz
Max Turbo Frequency: 4.60GHz
Cache: 12 MB
Bus Speed: 8 GT/s DMI3
TDP: 65 W
Supplemental Information:
Conflict Free: Yes
Memory Specifications:
Max Memory Size (dependent on memory type): 64 GB
Memory Type: DDR4-2666
Max # of Memory Channels: 2
Graphics Specifications:
Processor Graphics: Intel UHD Graphics 630
Graphics Base Frequency: 350 MHz
Graphics Max Dynamic Frequency: 1.20GHz
Graphics Video Max Memory: 64GB
Execution Units: 24
4K Support: Yes, at 60Hz
Max Resolution (HDMI 1.4): 4096x2304@24Hz
Max Resolution (DP): 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel): 4096x2304@60Hz
DirectX Support: 12
OpenGL Support: 4.5
Intel Quick Sync Video: Yes
Intel InTru 3D Technology: Yes
Intel Clear Video HD Technology: Yes
Intel Clear Video Technology: Yes
# of Displays Supported: 3
Expansion Options:
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16 or 2x8 or 1x8+2x4
Max # of PCI Express Lanes: 16
Package Specifications:
Sockets Supported: FCLGA1151
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2015G (65W)
TJunction: 100 C
Package Size: 37.5mm x 37.5mm
Advanced Technologies:
Intel Optane Memory Supported: Yes
Intel Turbo Boost Technology: 2.0
Intel vPro Technology: Yes
Intel Hyper-Threading Technology: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended page Tables (EPT): Yes
Intel TSX-NI: Yes
Intel 64: Yes
Instruction Set: Yes
Instruction set Extensions: SSE4.1/4.2, AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes
Intel Identity Protection Technology: Yes
Intel Stable Image Platform Program (SIPP): Yes
Security & Reliability:
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Software Guard Extensions (Intel SGX): Yes
Intel Memory Protection Extensions (Intel MPX): Yes
Intel OS Guard: Yes
Intel Trusted Execution Technology: Yes
Execute Disable Bit: Yes
Intel Boot Guard: Yes
