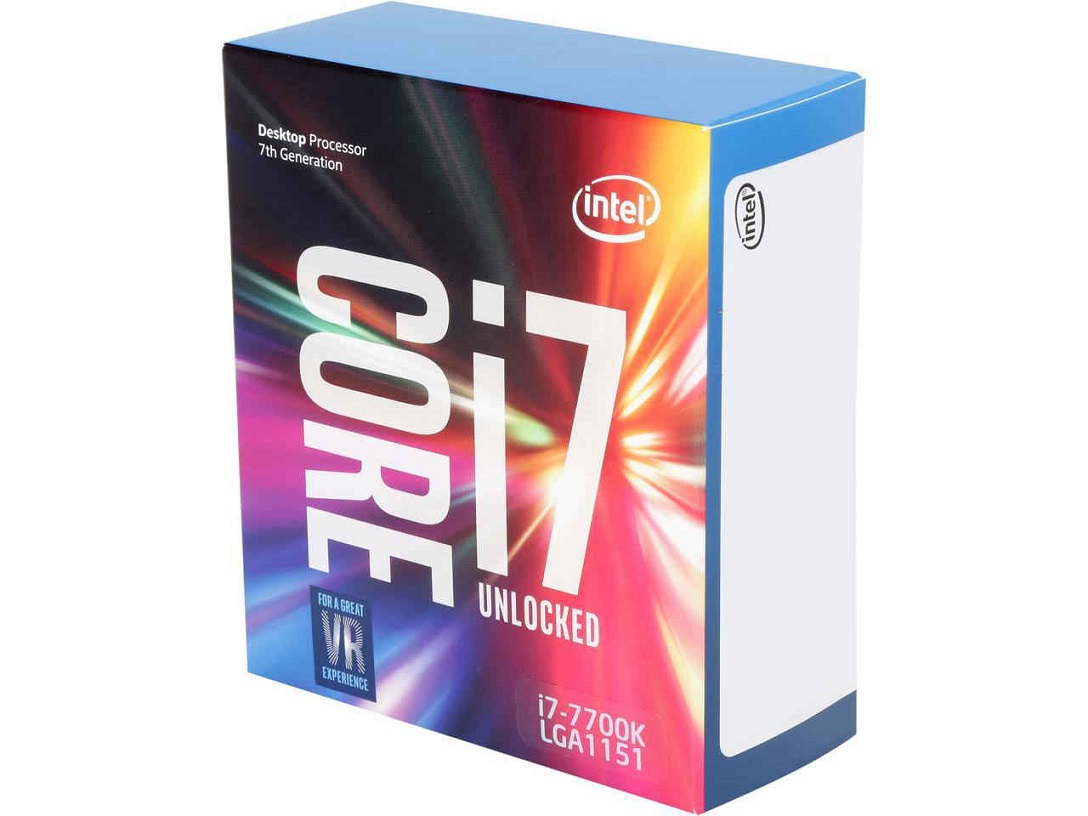

INTEL Core I7-7700K Processor

Specifications:
Essentials:
Product Collection: 7th Generation Intel Core i7 Processors
Processor Number: i7-7700K
Lithography: 14 nm

Performance:
# of Cores: 4
# of Threads: 8
Processor Base Frequency: 4.20 GHz
Max Turbo Frequency: 4.50 GHz
Cache: 8 MB SmartCache
Bus Speed: 8 GT/s DMI3
TDP: 91 W

Supplemental Information:
Conflict Free: Yes

Memory Specifications:
Max Memory Size (dependent on memory type): 64 GB
Memory Types: DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels: 2

Graphics Specifications:
Processor Graphics: Intel® HD Graphics 630
Graphics Base Frequency: 350.00 MHz
Graphics Max Dynamic Frequency: 1.15 GHz
Graphics Video Max Memory: 64 GB
4K Support: Yes, at 60Hz
Max Resolution (HDMI 1.4): 4096x2304@24Hz
Max Resolution (DP): 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel): 4096x2304@60Hz
DirectX* Support: 12
OpenGL* Support: 4.4
Intel® Quick Sync Video: Yes
Intel® InTru™ 3D Technology: Yes
Intel® Clear Video HD Technology: Yes
Intel® Clear Video Technology: Yes
# of Displays Supported: 3
Device ID: 0x5912

Expansion Options:
Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes: 16

Package Specifications:
Socket Supported: FCLGA1151
Max CPU Configuration: 1
TJunction: 100 C
Package Size: 37.5mm x 37.5mm

Advanced Technologies:
Intel Optane Memory Supported: Yes
Intel® Turbo Boost Technology: 2.0
Intel® Hyper-Threading Technology: Yes
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® TSX-NI: Yes
Intel® 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX 2.0
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Identity Protection Technology: Yes

Security & Reliability:
Intel® AES New Instructions: Yes
Secure Key: Yes
Intel® Software Guard Extensions (Intel® SGX): Yes
Intel® Memory Protection Extensions (Intel® MPX): Yes
OS Guard: Yes
Execute Disable Bit: Yes
Intel® Device Protection Technology with Boot Guard: Yes
