Specification

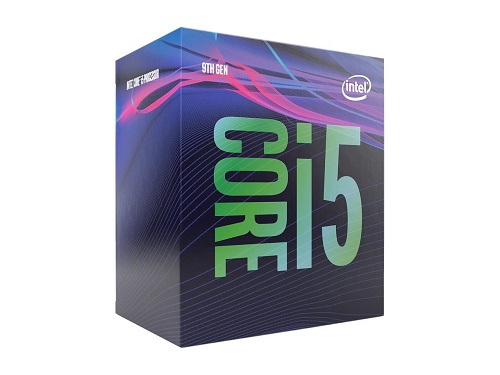

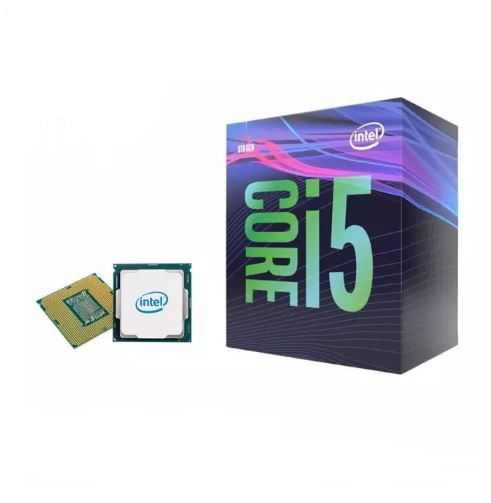

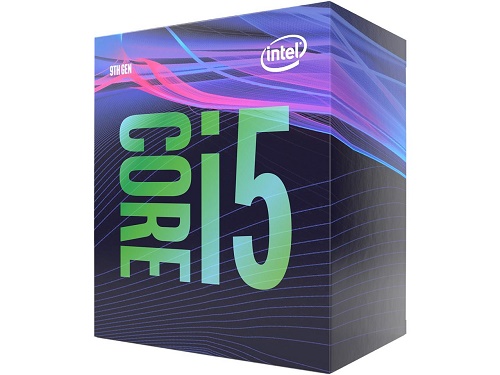

INTEL I5-9400 PROCESSOR
Specifications:
Essentials:
-Product Collection: 9th Generation Intel Core i5 Processors
-Processor Number: i5-9400
-Lithography: 14 nm
Performance:
-# of Cores: 6
-# of Threads: 6
-Processor Base Frequency: 2.90GHz
-Max Turbo Frequency: 4.10GHz
-Cache: 9 MB Intel Smart Cache
-Bus Speed: 8 GT/s
-TDP: 65 W
Memory Specifications:
-Max Memory Size (dependent on memory type): 128 GB
-Memory Types: DDR4-2666
-Max # of Memory Channels: 2
-Max Memory Bandwidth: 41.6GB/s
Processor Graphics:
-Proccessor Graphics: Intel UHD Graphics 630
-Graphics Base Frequency: 350 MHz
-Graphics Max Dynamic Frequency: 1.05 GHz
-Graphics Video Max Memory: 64 GB
-4K Support: Yes, at 60Hz
-Max Resolution (HDMI 1.4): 4096x2304@24Hz
-Max Resolution (DP): 4096x2304@60Hz
-Max Resolution (eDP - Integrated Flat Panel): 4096x2304@60Hz
-DirectX Support: 12
-OpenGL Support: 4.5
-Intel Quick Sync Video: Yes
-Intel InTru 3D Technology: Yes
-Intel Clear Video HD Technology: Yes
-Intel Clear Video Technology: Yes
-# of Displays Supported: 3
Expansion Options:
-PCI Express Revision: 3.0
-PCI Express Configurations: 3.0
-PCI Express Configurations: Up to 1x16, 2x8, 1x8+2x4
-Max # of PCI Express Lanes: 16
Package Specifications:
-Sockets Supported: FCLGA1151
-Max CPU Configuration: 1
-Thermal Solution Specification: PCG 2015C (65W)
-TJUNCTION: 100 C
-Package size: 37.5 x 37.5mm
Advanced Technologies:
-Intel® Optane Memory Supported: Yes
-Intel® Turbo Boost Technology: 2.0
-Intel® vPro™ Platform Eligibility: No
-Intel® Hyper-Threading Technology: No
-Intel® Virtualization Technology (VT-x): Yes
-Intel® Virtualization Technology for Directed I/O (VT-d): Yes
-Intel® VT-x with Extended Page Tables (EPT): Yes
-Intel® Transactional Synchronization Extensions: No
-Intel® 64: Yes
-Instruction Set: 64-bit
-Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
-Idle States: Yes
-Enhanced Intel SpeedStep® Technology: Yes
-Thermal Monitoring Technologies: Yes
-Intel® Identity Protection Technology: Yes
-Intel® Stable Image Platform Program (SIPP): No
Security & Reliability:
-Intel® AES New Instructions: Yes
Secure Key: Yes
-Intel® Software Guard Extensions (Intel® SGX): Yes with Intel® ME
-Intel® Memory Protection Extensions (Intel® MPX): Yes
-Intel® OS Guard: Yes
-Intel® Trusted Execution Technology: No
-Execute Disable Bit: Yes
-Intel® Boot Guard: Yes
