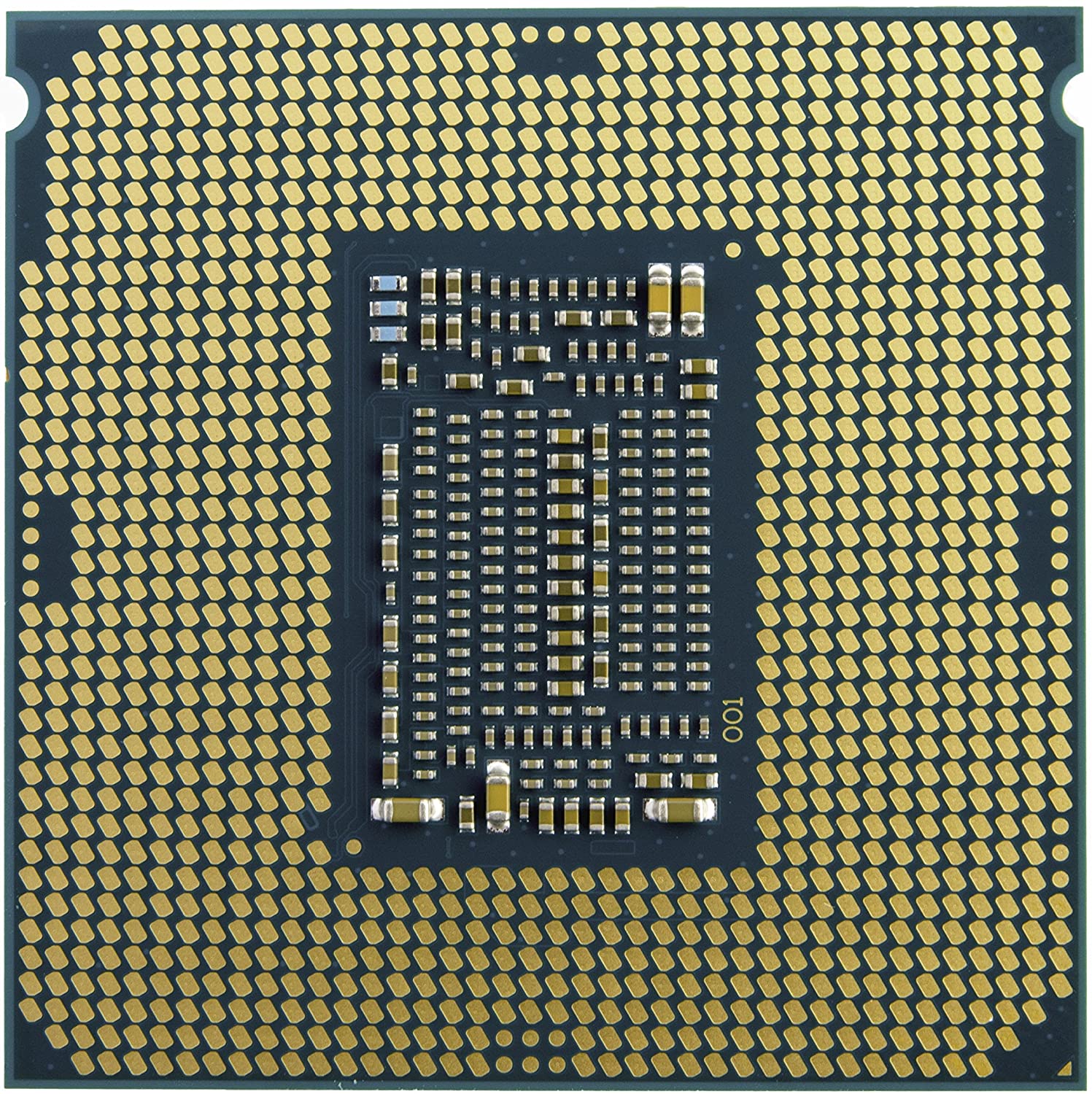

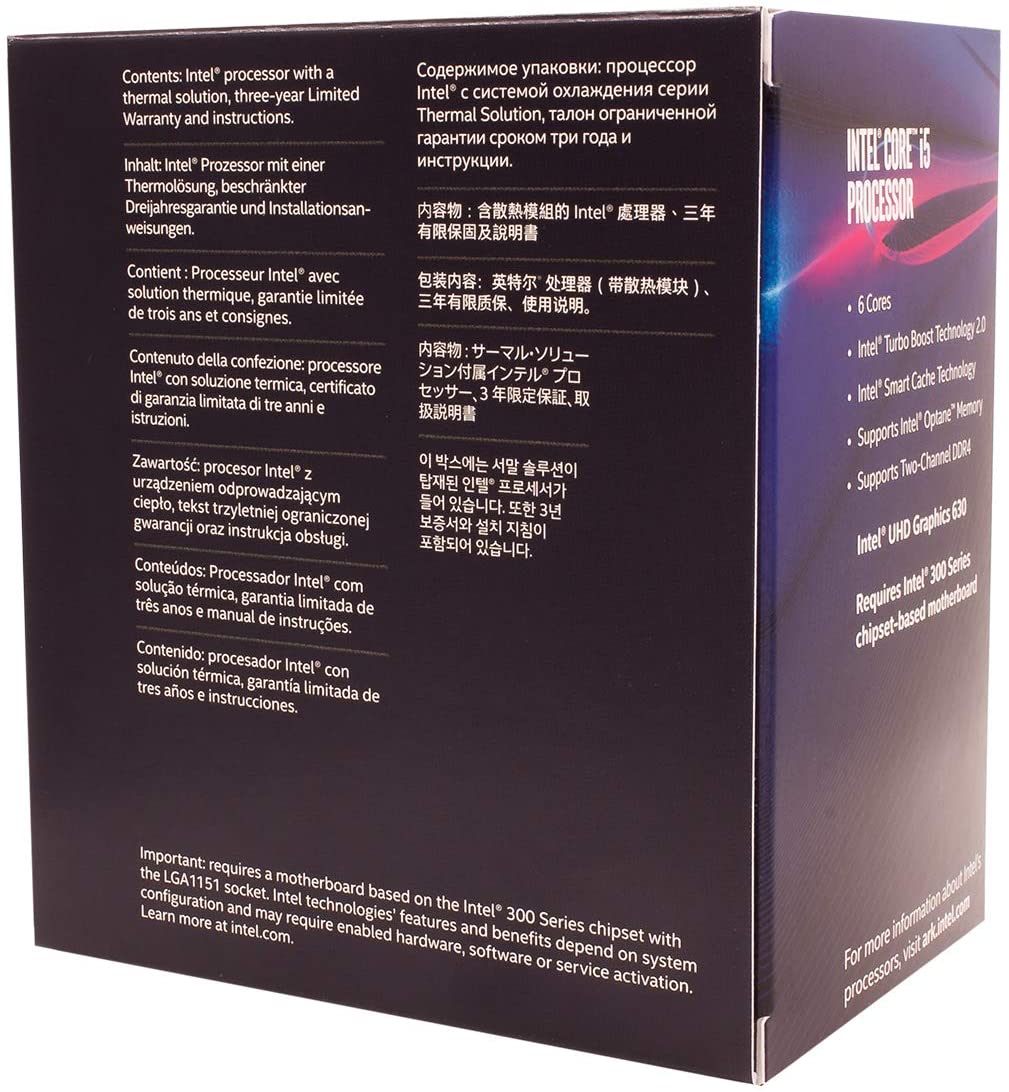

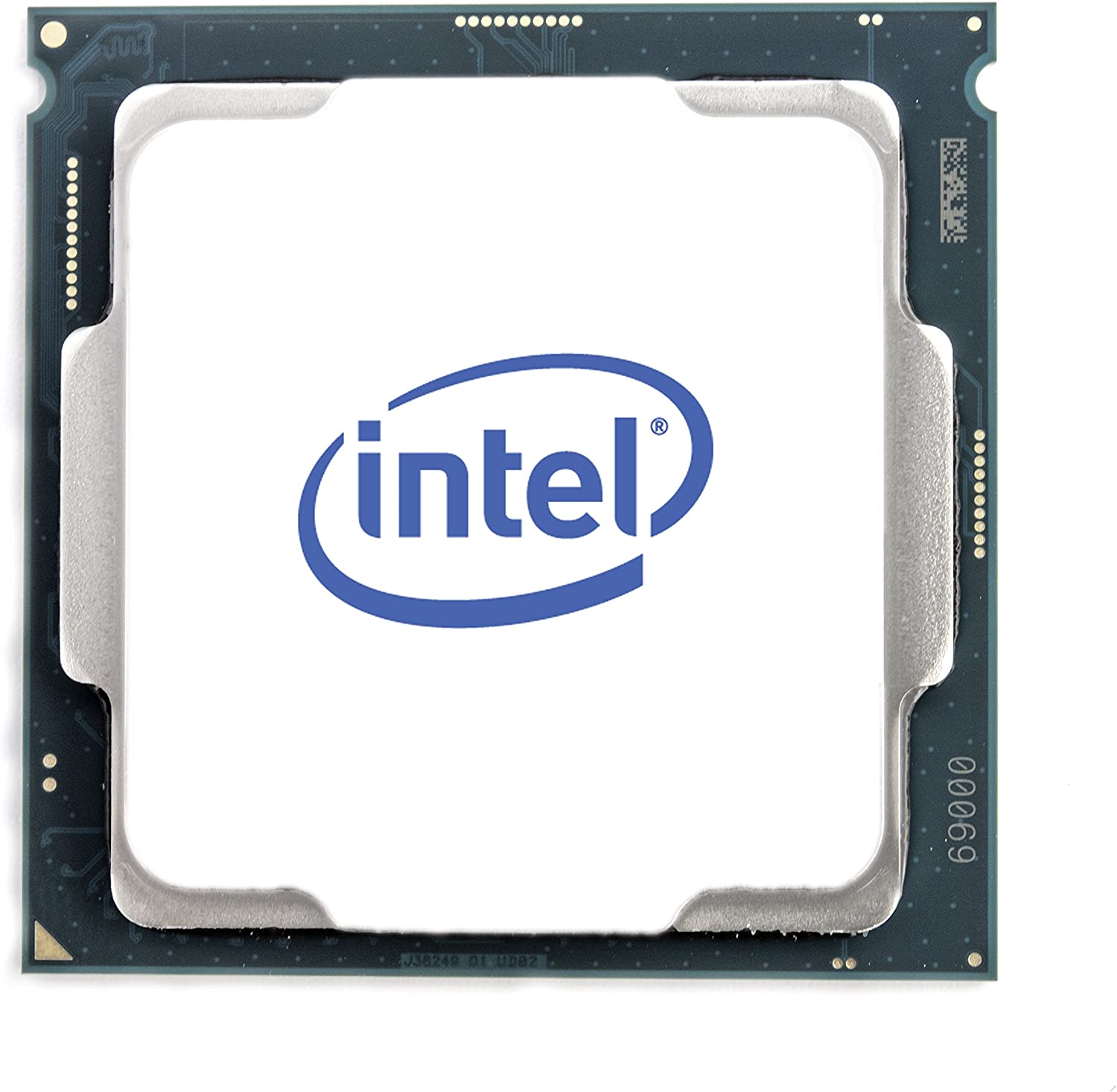

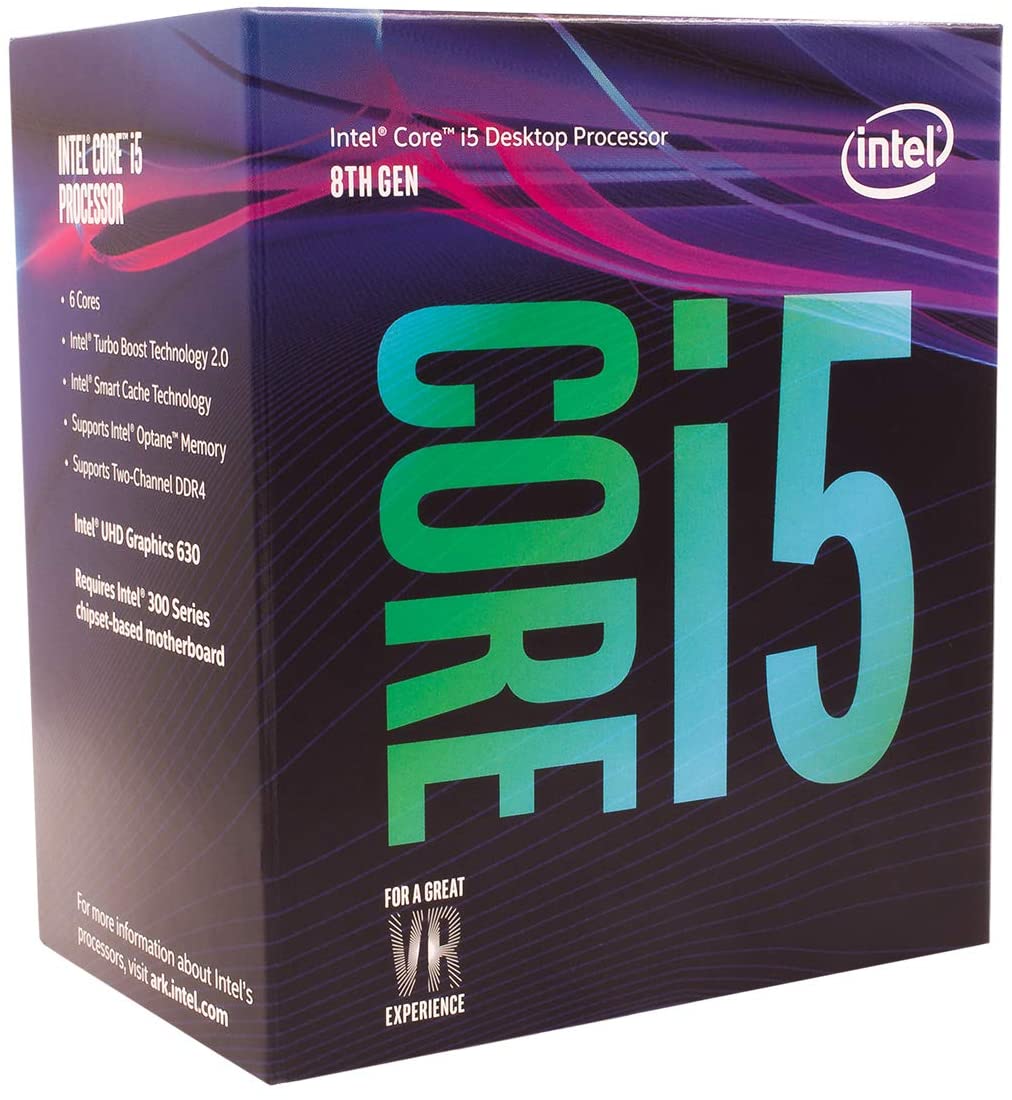

INTEL - CP-I5-8400



INTEL CORE I5 8400 2.8GHZ LGA1151 9MB CA

Description

8th Generation Intel® Core i5 Processors. Desktop Intel® Core i5-8400 Processor (9M Cache, up to 4.00 GHz). 14 nm, # of Cores: 6, # of Threads: 6. TDP: 65 W


Specification

INTEL Core I5-8400 Processor

Specifications:
Essentials:
Product Collection: 8th Generation Intel Core i5 Processors
Vertical Segment: Desktop
Processor Number: i5-8400
Lithography: 14 nm

Performance:
# of Cores: 6
# of Threads: 6
Processor Base Frequency: 2.80 GHz
Max Turbo Frequency: 4.00 GHz
Cache: 9 MB
Bus Speed: 8 GT/s DMI3
TDP: 65 W

Supplemental Information:
Conflict Free: Yes

Memory Specifications:
Max Memory Size (dependent on memory type): 64 GB
Memory Type: DDR4-2666
Max # of Memory Channels: 2

Graphics Specifications:
Graphics Base Frequency: 350 MHz
Graphics Max Dynamic Frequency: 1.05 GHz
Graphics Video Max Memory: 64 GB
Execution Units: 23
4K Support: Yes, at 60Hz
Max Resolution (HDMI 1.4): 4096x2304@24Hz
Max Resolution (DP): 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel): 4096x2304@60Hz
DirectX Support: 12
OpenGL Support: 4.5
Intel Quick Sync Video: Yes
Intel InTru 3D Technology: Yes
Intel Clear Video HD Technology: Yes
Intel Clear Video Technology: Yes
# of Displays Supported: 3

Expansion Options:
Scalability: 1S Only
PCI Express Revision: 3.0
PCI Express Configurations: Up to 1x16 or 2x8 or 1x8+2x4
Max # of PVI Express Lanes: 16

Package Specifications:
Sockets Supported: FCLGA1151
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2015C (65W)
TJunction: 100 C
Package Size: 37.5 x 37.5 mm

Advanced Technologies:
Intel Optane Memory Supported: Yes
Intel Turbo Boost Technology: 2.0
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1/4.2, AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes
Intel Identity Protection Technology: Yes

Security & Reliability:
Intel AES New Instructions: Yes
Secure Key: Yes
Intel Software Guard Extensions (Intel SGX): Yes
Intel Memory Protection Extensions (Intel MPX): Yes
Intel OS Guard: Yes
Execute Disable Bit: Yes
Intel Boot Guard: Yes
