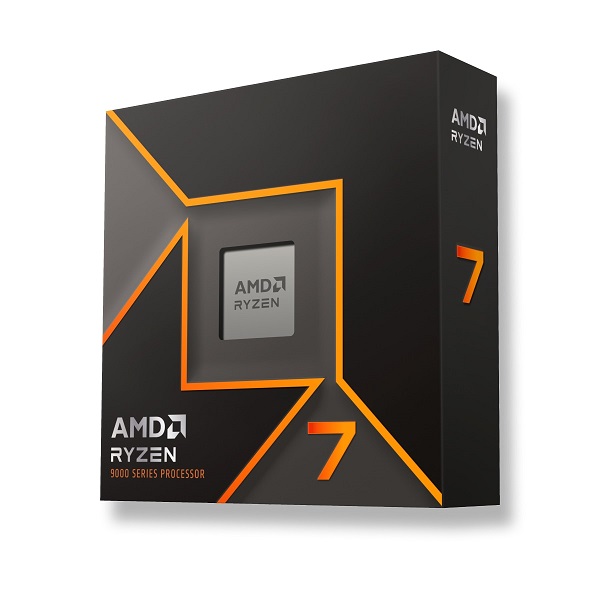

AMD Ryzen 7 9700X AM5 Processor With AMD Radeon 2200MHz Graphics, 8-Cores / 16-Threads, 11-GPU Cores, 3.8GHz Base Clock And TDP 65W

Specifications:
-Name: AMD Ryzen 7 9700X
-Family: Ryzen
-Series: Ryzen 9000 Series
-Form Factor: Desktops, Boxed Processor
-Market Segment: Enthusiast Desktop
-Regional Availability: Global
-Former Codename: Granite Ridge AM5
-Processor Architecture: Zen 5
-# of CPU Cores: 8
-Multithreading (SMT): Yes
-# of Threads: 16
-Max. Boost Clock: Up to 5.5GHz
-Base Clock: 3.8GHz
-L1 Cache: 640KB
-L2 Cache: 8MB
-L3 Cache: 32MB
-Default TDP: 65W
-Processor Technology for CPU Cores: TSMC 4nm FinEFT
-Processor Technology for I/O Die: TSMC 6nm FinEFT
-Package Die Count: 2
-Unlocked for Overclocking: Yes
-AMD EXPO Memory Overclocking Technology: Yes
-Precision Boost Overdrive: Yes
-Curve Optimizer Voltage Offsets: Yes
-AMD Ryzen Master Support: Yes
-CPU Socket: AM5
-Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
-CPU Boost Technology: Precision Boost 2
-Instruction Set: x86-64
-Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
-Recommended Cooler: Premium air recommended for optimal performance
-Max. Operating Temperature: 95C
-OS Support: Windows 11 64-Bit Edition, Windows 10 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

Connectivity:
-4x Native USB3.2 Gen 2 10Gbps
-1x Native USB2.0 480Mbps
-PCI Express 5.0
-Native PCIe Lanes (Total/Usable): 28, 24
-Additional Usable PCIe Lanes from M/B: X870E 8x Gen4, X870 4x Gen4, X670E 12x Gen4, X670 12x Gen4, B650W 8x Gen4, B650 8x Gen4
-NVMe Support: Boot, RAID0, 1, 5, 10
-System Memory Type: DDR5
-Memory Channels: 2
-Max. Memory: 256GB
-System Memory Subtype: UDIMM
-Max Memory Speed: 2x1R DDR5-5600, 2x2R DDR5-5600. 4x1R DDR5-3600, 4x2R DDR5-3600
-ECC Support: Yes (Requires mobo support)

Graphics Capabilities:
-Graphics Model: AMD Radeon Graphics
-Graphics Core Count: 2
-Graphics Frequency: 2200 MHz
-USB-C DisplayPort Alternate Mode: Yes

Supported Technologies:
-AMD EXPO Technology, AMD Ryzen Technologies

-Weight: 100g
-Dimensions: (L)13 x (W)5 x (H)13.5 cm

What's in the box:
-1x AMD Ryzen 7 9700X AM5 CPU
