COOLER MASTER - MCB-NR200P-KGNN-S00



COOLER MASTER MBOX NR200P M-ITX CASE-BK

Description

COOLER MASTER MASTERBOX NR200P WITH TEMPERED GLASS MINI ITX CHASSIS - BLACK


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/main-components-cases-mini-itx/mcb-nr200p-kgnn-s00;

COOLER MASTER MASTERBOX NR200P WITH TEMPERED GLASS MINI ITX CHASSIS - BLACK

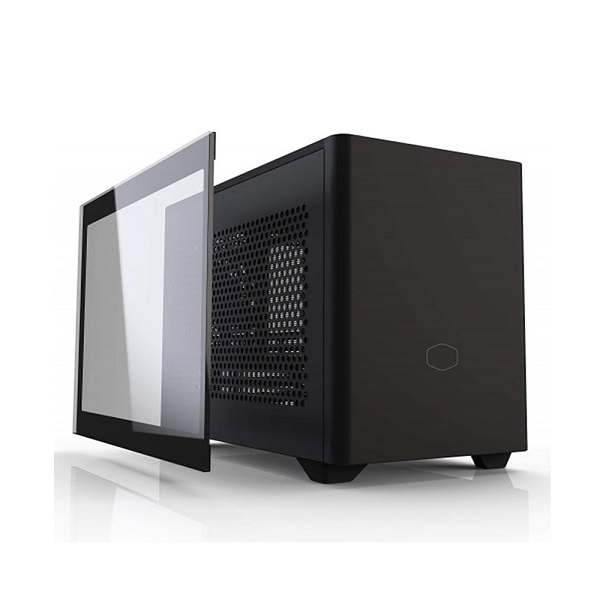

The NR200P includes many features found in larger ATX chassis while retaining a space-efficient form factor. The NR200P comes with the choice of a vented steel side panel for unrestricted airflow, or a crystal-clear tempered glass side panel. A PCIe Riser is included for vertical GPU installation to better showcase it against the glass, or to feed it fresh air from the side with the vented panel.

Features:
-Limited size, unlimited options
-Unrestricted cooling potential
-Triple-slot GPU support/included Vertical Riser cable
-360 degree accessibility
-Multiple motherboard support options

Specifications:
-Motherboard Support: Mini-ITX/Mini-DTX, Max size: 244*226mm
-Expansions slots: 3
-Volume: 18.25L
-Exterior Colour: Black
-Dust Filters: Bottom, left, roght, top panels
-Power Supply Support: SFX, SFX-L
-Included Accessories: PCIe3.0 x16 riser cable
x1
-Fan Included: Top: 2 x 120mm 650~1800rpm PWM SickleFlow

Materials:
-Exterior: SGCC Steel, Mesh, ABS Plastic
-Left Side Panel: Tempered Glass x 1/Steel x 1

Drive Bays:
-5.25": 0
-3.5" HDD 1 (Max2)
-3.5"/2.5" Combo: 1
-2.5" SSD: 2(Max. 3)

I/O Panels:
-USB Ports: 2 x USB 3.2 Gen 1 (USB 3.0)
-Audio In/Out: 1x 3.5mm Headset Jack (Audio + Mic)

Fan Support:
-Top: 2 x 120mm
-Left: 2 x 120mm
-Rear: 1 x 92mm
-Bottom: 2 x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)

Radiator Support:
-Top: N/A
-Left: 120/140/240/280mm(max width 141mm, not compatible with vertical GPU installation)
-Rear: 92mm (not compatible with vertical GPU installation)
-Bottom: 120/240mm (recommended only for single slot water-cooled GPUs or vertically mounted GPUs)

Clearances:
-CPU Cooler:
--155mm(vented steel side panel)
--153mmm(tempered glass side panel)
--76mm(GPU in vertical position)
-Power Supply: 130mm
-Graphics Card:
--L: 330mm(inlc. power connector)
--H: 156mm(incl. power connector)
--W: 60mm(triple slot)

Package Specs:
-Weight: 7kg
-Dimensions(L*W*H): 348*284*435mm

In the Box:
-1 x NR200P Black Case
-1 x PCIe3.0 x16 riser cable
-1 x User Manual
