Cooler Master QUBE 540 ATX Case with Tempered Glass Side Panel, 1X 120mm (Rear) Black Fan Pre-Installed and Supporting Vertical / Horizontal Orientation and ITX to Full-Size E-ATX Motherboards (up to 280mm wide) – Stardust Icon

Features:
-Compact size design

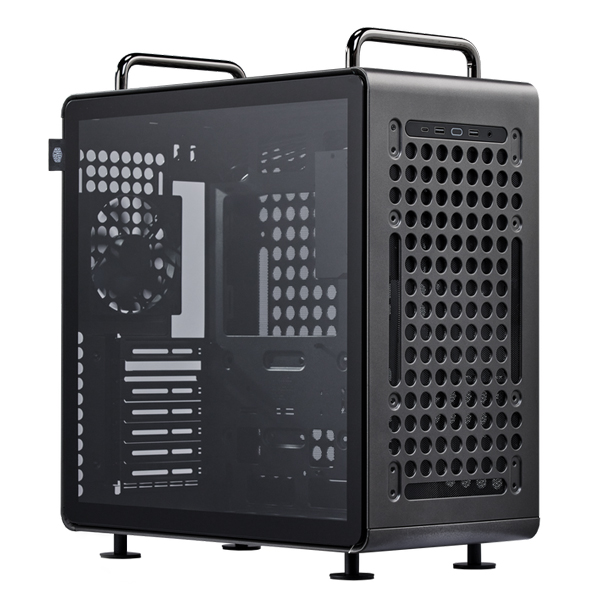

-Tempered Glass Side Panel
-Vertical GPU Installation ready
-Pre-installed 1x 120mm black fan
-Supports high-end GPUs and 360mm liquid cooling

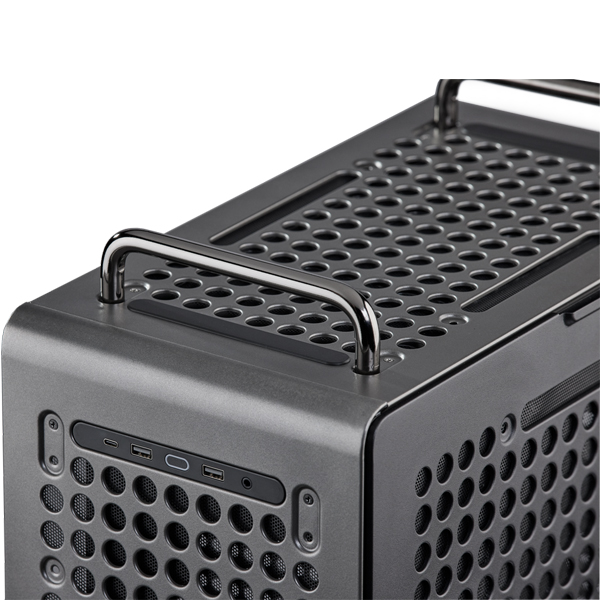

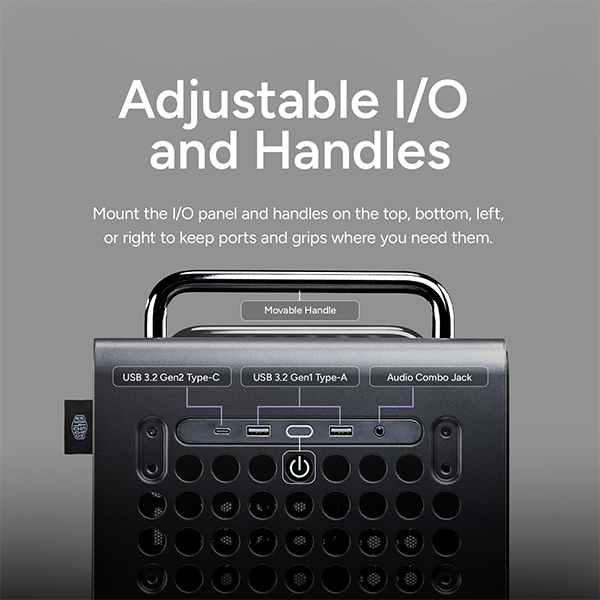

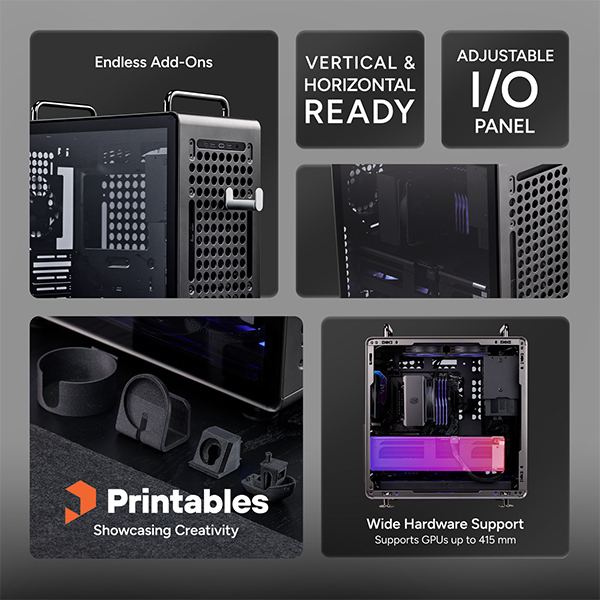

-Built with repositionable I/O Panel and Movable Handles
-Repositionable components and flexible mounting options

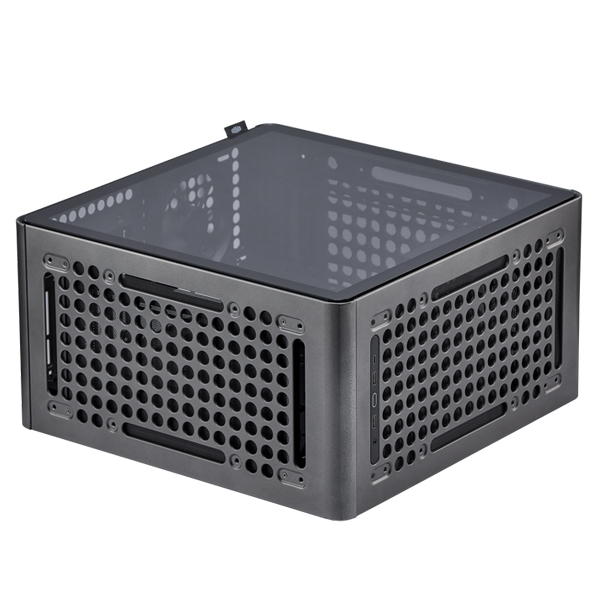

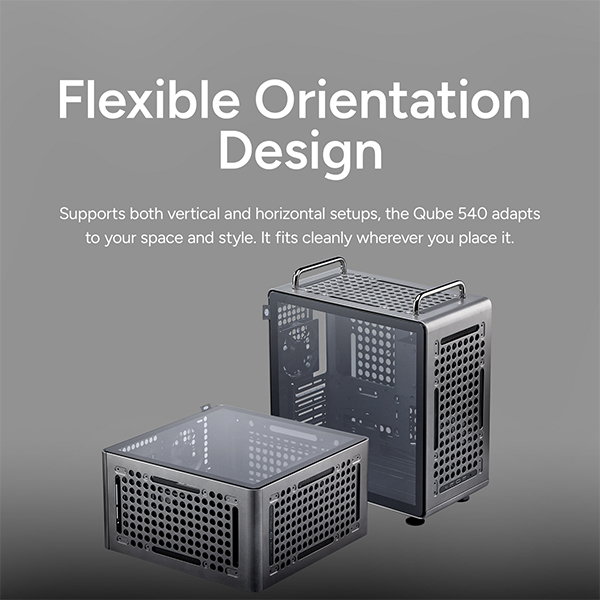

-Supports vertical and horizontal orientation installation needs
-Supporting from ITX to full-size E-ATX motherboards (up to 280mm wide)

Specifications:
-Product Name: QUBE 540
-Product Number: Q540-MGNN-S00
-Color: Stardust Icon
-Material: Steel (Exterior / Side Panel (Right)), TG (Side Panel (Left))
-Dimensions: (L)425 x (W)225 x (H)425mm
-Volume: 40.64L
-Motherboard Support: ITX / M-ATX / ATX / *E-ATX (*Up to 280mm)
-Expansion Slots: 7
-Drive Bays – 5.25” ODD: N/A
-Drive Bays – 3.5” HDD: 1 (Shared 3.5” and 2.5” mounting on PSU bracket)
-Drive Bays – 2.5” SSD: 2 (Max. 5)
-USB Ports: 2x USB3.2 Gen1 / 1x USB-C 3.2 Gen2
-Audio I/O 3.5mm: 1x 3.5Mic / Audio Combo Jack

Fan Support:
-Front: 3x 120mm (w/o I/O panel) / 2x 140mm
-Top: 3x 120mm (w/o I/O panel) / 2x 140mm
-Rear: 1x 120mm
-Bottom: 3x 120mm / 2x 140mm
-Pre-Installed Fan: Rear - 1x 120mm Black

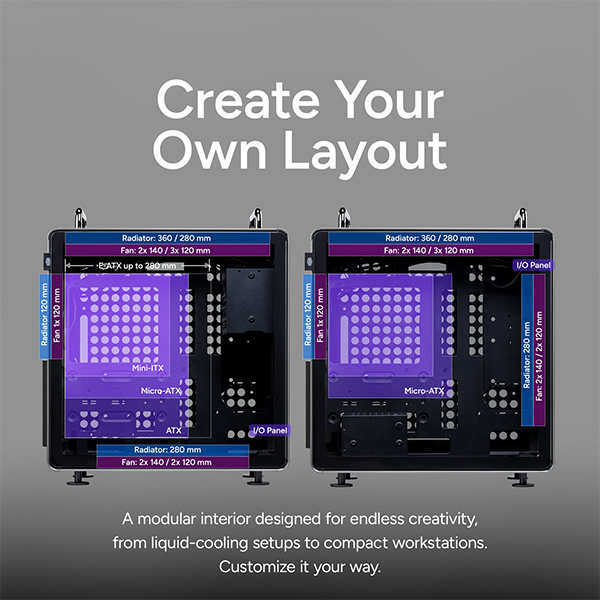

Radiator Support:
-Front: 140/280/360mm (w/o I/O panel)
-Top: 140/280/360mm (w/o I/O panel) -Rear: 120mm
-Bottom: 140/280/360mm (w/o I/O panel)

Clearances:
-CPU Cooler: 172mm
-Power Supply: 200mm

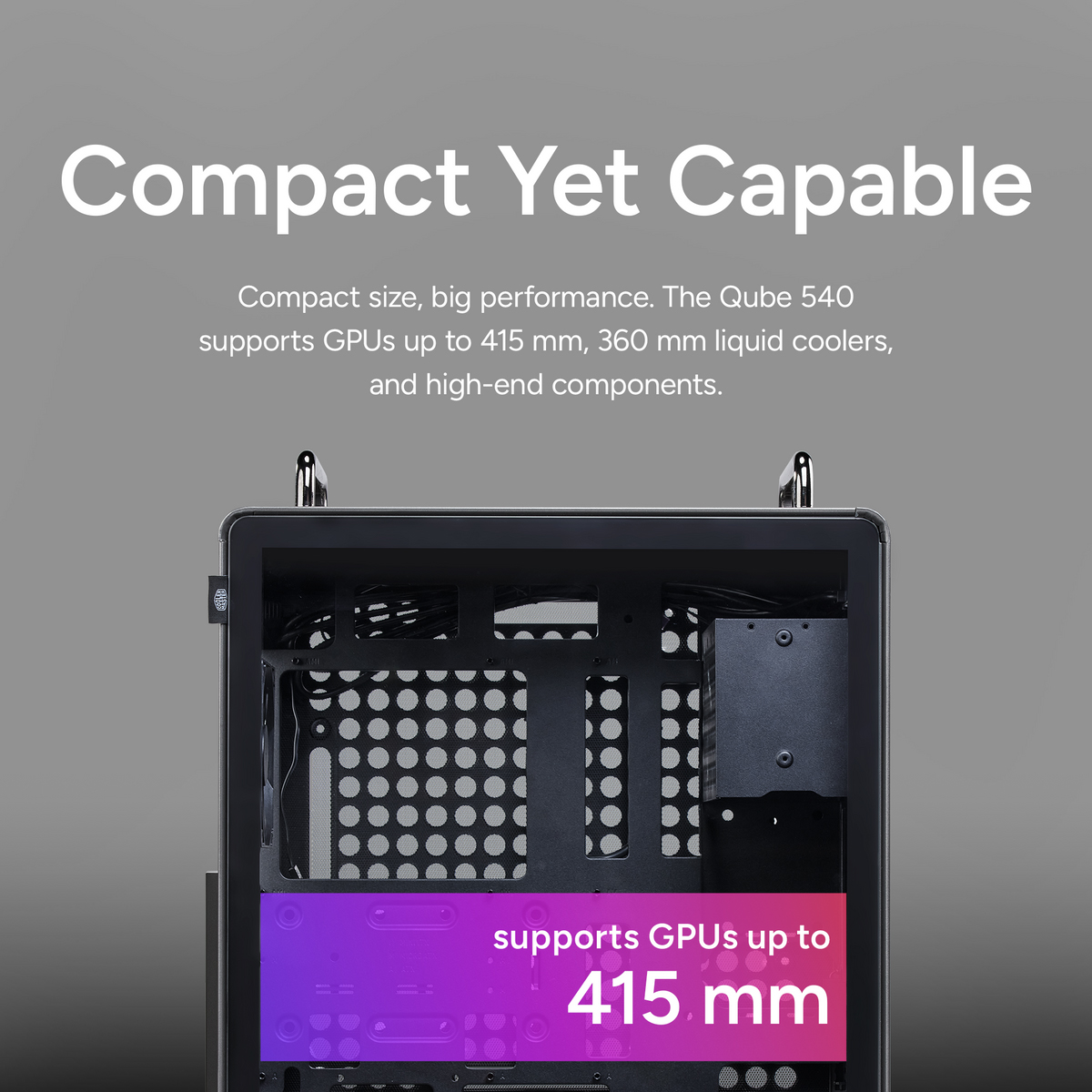

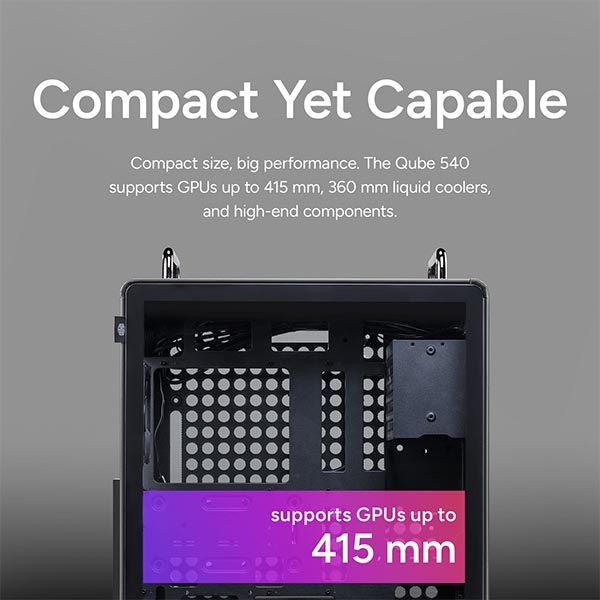

-Graphics card: 415mm (w/o Front Fan)
-Cable Routing – Behind MB Tray: 27mm
-Dust Filters: Top, Bottom, Front
-Power Supply Support: ATX / SFX

-Weight: 9100g
-Dimensions: (L)49.5 x (W)27.5 x (H)57.8cm

What’s in the box:
-1x Cooler Master QUBE 540 ATX Case
