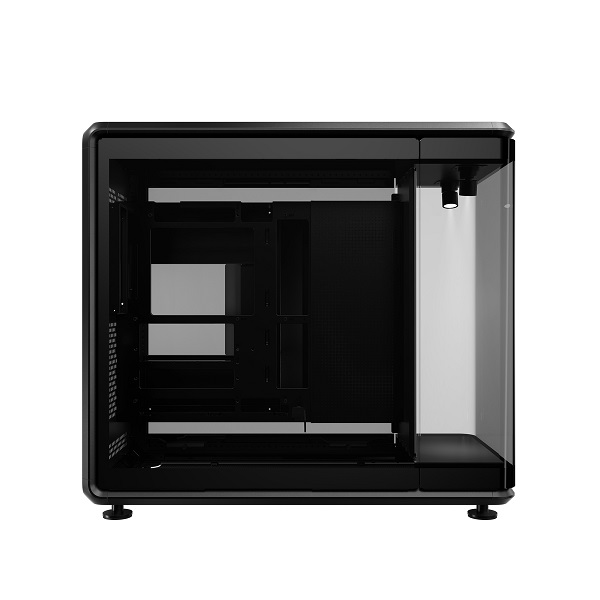

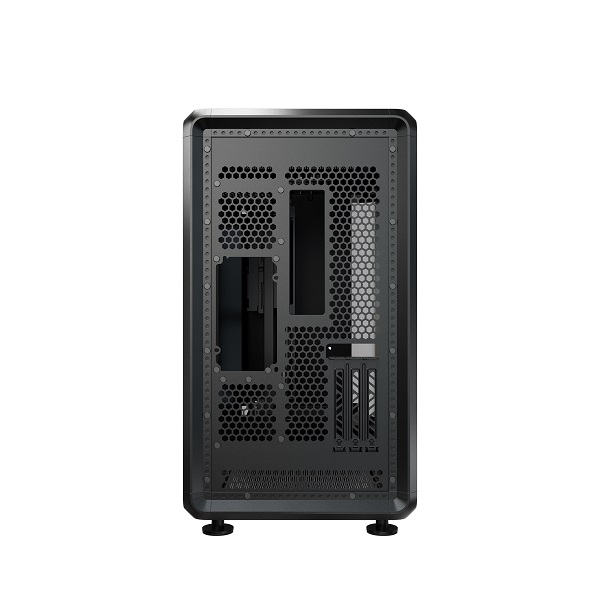

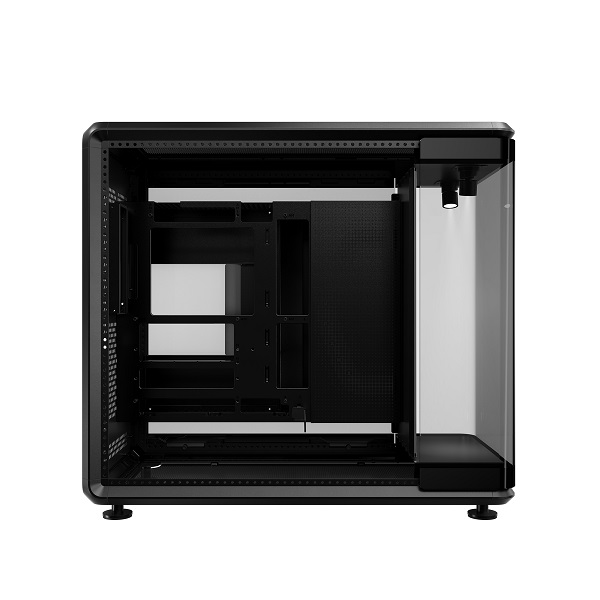

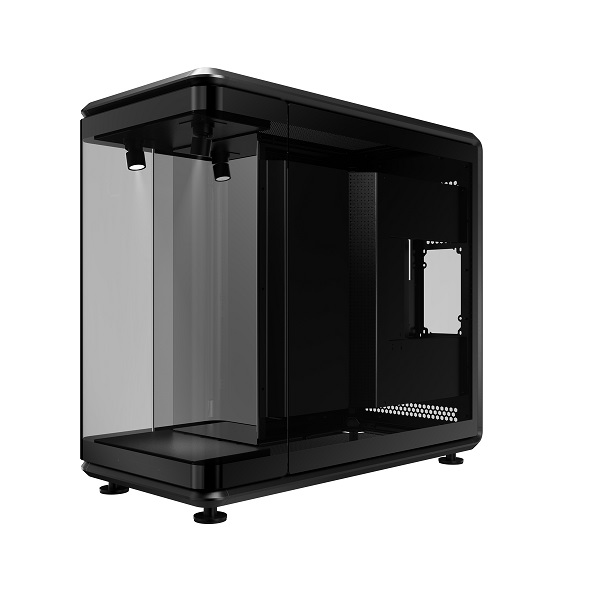

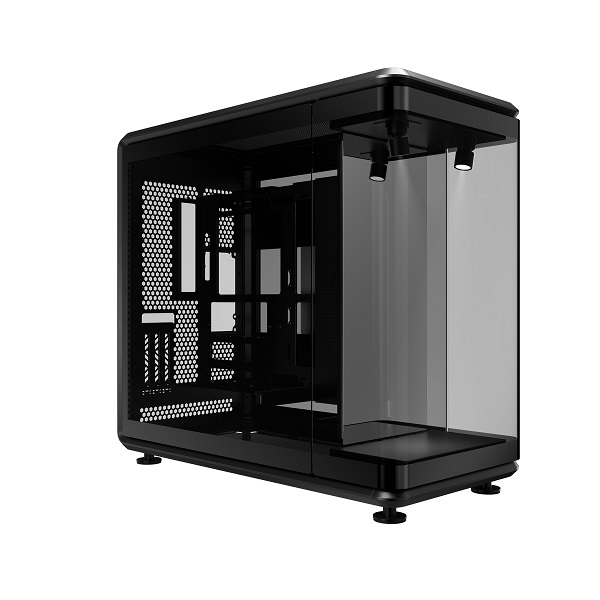

Cooler Master MasterFrame 360° DIY Liquid Cooling ATX Case with 360° Panoramic Display, Front Display Stage Enhanced by Front-Facing ARGB Lighting and Support Up to 12x 120mm fans (six top, six bottom) – Black Colour

Features:
-Fits GPUs up to 430mm & PSUs up to 210mm
-110mm cable clearance for clutter-free routing
-Supports up to 12×120mm fans (top & bottom)
-Includes PCIe 5.0 riser for vertical GPU mounting
-Front ARGB display stage for premium showcase
-360° panoramic display with ultra-clear tempered glass
-Supports Mini-ITX, Micro-ATX, ATX & BTF motherboards
-Connectivity: USB 4.0 (20 Gbps) + 2× USB 3.2 Gen 1 (5 Gbps)
-Industry-first 360° liquid cooling layout; supports 360mm radiators

Specifications:
-Product Name: MASTERFRAME 360 PANORAMA
-Series: MASTERFRAME Series
-Color: Black
-Model Number: MF360-KINN-S00
-Materials: SGCC (Exterior), TG (Side Panel – Left/Right)
-Dimensions: (L)549x(W)291x(H)581mm, Volume: 93L
-Motherboard Support: Mini-ITX, Micro-ATX, ATX, BTF (ATX)
-Power Supply Support: ATX
-PCI Expansion Slots: 3.5
-Drive Bay Support – 3.5” Drive Bays: 0
-Drive Bay Support – 2.5 / 3.5” Drive Bays (or SSD): 1x HDD or 2x SSD
-Pre-installed Drive Bay – 3.5” Drive Bay (remark Toolfree qty) / 2.5” Drive Bay (or SSD) (remark Toolfree qty): 1x HDD or 2x SSD
-USB Ports: 2x USB-A 3.2 Gen 1 5Gbps, 1x USB-C 4.0 Gen 2x2 20Gbps
-Audio I/O: 1x 3.5mm Headset Jack (Audio+Mic)

Fans Support:
-Top: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
-Bottom: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm

Radiator Support:
-Top: 120/140/240/280/360mm (maximum thickness clearance 75mm)
-Bottom: 120/140/240/280/360mm (maximum thickness clearance 75mm)

-Dust Filters – Removable Filters: Mesh Only
-Other electronic components: 1x PCIe 5.0 Riser Cable / 2x ARGB spotlight
-Maximum Dimensions for Front Collectibles Display: (H)360 x (W)220 x (D)118mm
-DIY tank & Pump support: Yes
-Toolbox: Yes
-Cable Routing – Behind MB Tray: 110mm

Clearances:
-CPU Cooler: 145mm
-Power Supply: 210mm
-Graphics Card: 430mm

-Weight: 1923g
-Dimensions: (L)65 x (W)43 x (H)73cm

What’s in the box:
-1x Cooler Master MasterFrame 360 Panorama ATX Case
