COOLER MASTER - CP520-KGNN60-S00



CM CMP520+ELITE NEX PN600 230V PSU-BK

Description

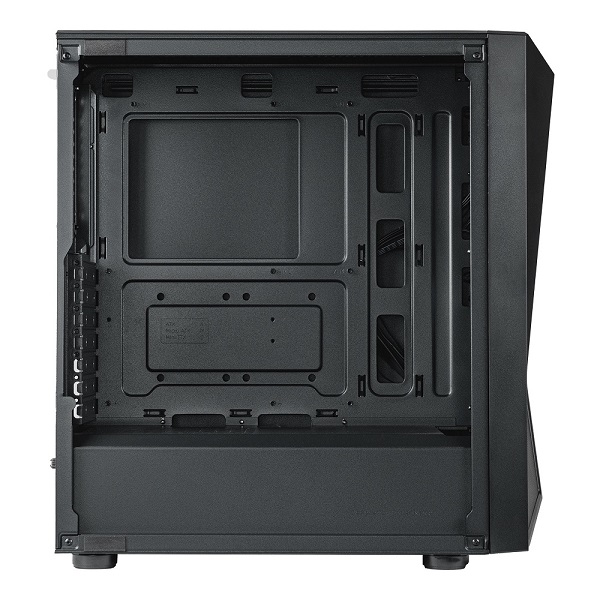

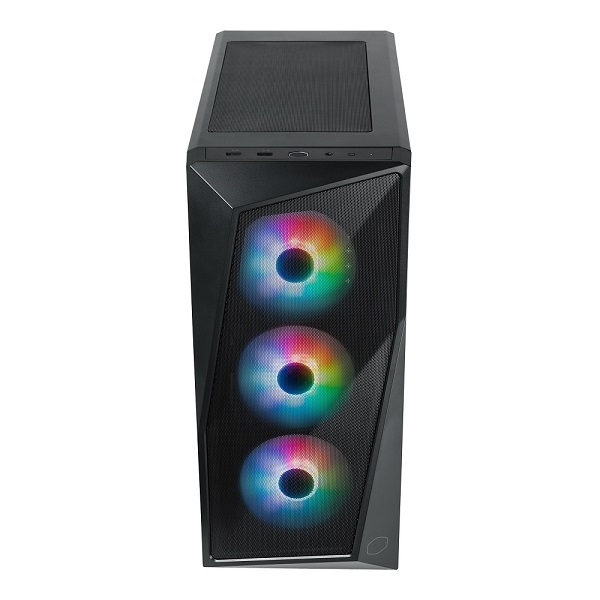

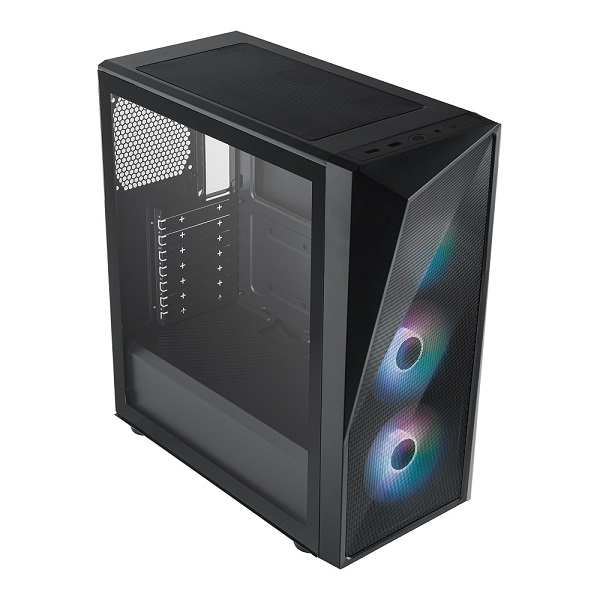

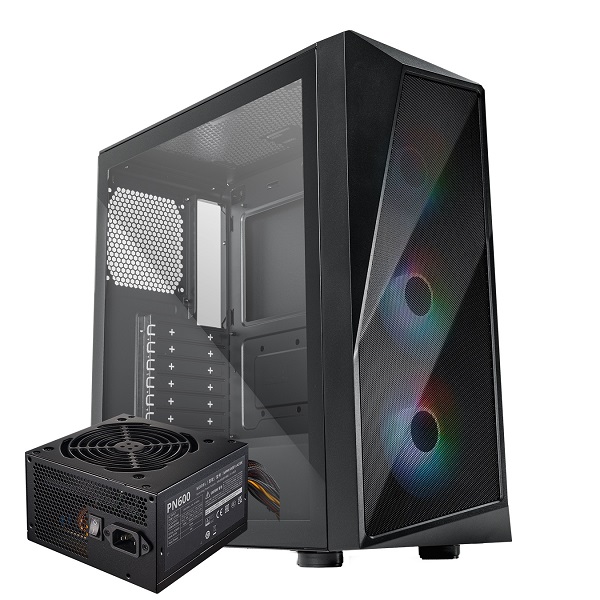

Cooler Master CMP520 ATX Tower Case With Built-in Elite Nex PN600W 230V Power Supply With Mesh Geode Front Panel And 3X 120mm ARGB Fans Plus 1X 120mm Black Fan Pre-Installed - Black Colour


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/main-components-cases-mid-tower/cp520-kgnn60-s00

Cooler Master CMP520 ATX Tower Case With Built-in Elite Nex PN600W 230V Power Supply With Mesh Geode Front Panel And 3X 120mm ARGB Fans Plus 1X 120mm Black Fan Pre-Installed - Black Colour

Features:
-Versatile Cooling options
-Full Black coating & PSU cover
-Breathable power supply shroud
-Three 120mm ARGB Fans pre-installed
-Mesh front panel & efficient dust filtration
-Easily support 350mm GPU & 161mm CPU cooler
-Built in ARGB Hub for streamlined cable management

Specifications:
-Product Name: CMP 520
-Product Number: CP520-KGNN60-S00
-Exterior Color: Black
-Materials: -Exterior: Steel, Plastic /-Left Side Panel: Tempered Glass
-Motherboard: Mini-ITX, Micro-ATX, ATX
-Expansion Slots: 7
-Drive Bays: -2.5/3.5" HDD: 2 /-2.5" SSD: 2
-I/O Panel: 1x USB3.2 Gen 1 Type-A, USB2.0, 3.5mm Headset Jack(Audio+Mic)
-Pre-installed Fans: 3x 120mm ARGB Fans (Front) + 1x 120mm Black Fan(Back)
-Cable Routing: Behind MB Tray-18.5mm
-Dust Filters: top, Bottom
-Power Supply Support: Bottom Mount, ATX

Fan Support:
-Top: 2x 120/140mm
-Front: 3x 120mm, 2x 140mm
-Rear: 1x 120mm

Radiator Support:
-Top: 120/240mm* (*RAM height below 35mm)
-Front: 120/140/240/280mm
-Rear: 120mm

Clearance:
-CPU Cooler: 161mm
-Power Supply: 160mm
-Graphics Card: 350mm (w/o front fans & radiator)

ELITE NEX PN600 230V PSU SPECS:
-Product Name: Elite Nex PN600 230V Peak
-Item Code: MPW-6001-ACBK-PCP (600W)
-ATX Version: ATX12V Rev. 2.41
-PFC: Active PFC
-Input Voltage: 200-240V
-Input Current: 4A
-Input Frequency: 50-60Hz
-Dimensions: (L)140 x (W)150 x (H)86mm
-Fan Size: 120mm
-Fan Bearing: Sleeve Fan
-Efficiency: >75% @ Typical Load
-ErP 2014 Lot 3: Yes
-Operating Temperature: 0-40C
-Power Good Signal: 100-500ms
->10ms at 100% Load
-MTBF: >100,000 hours
-Protections: OVP/OPP/SCP/UVP/OTP/Inrush Protection
-Regulatory: TUV, CE, CCC, EAC, UKCA
-Connectors:
-1x ATX 24Pin (1x 550mm)
-1x EPS 4+4Pin (1x 550mm)
-2x SATA (1x 400+150mm)
-3x SATA (1x 400+150+150mm)
-3x Peripheral 4Pin (1x 400+150+150mm)
-2x PCI-e 6+2Pin (500+120mm)

-Weight: 7000g
-Dimensions: (L)52 x (W)52 x (H)27.5cm

What's in the box:
-1x Cooler Master CMP 520 ATX Case Black
-3x 120mm ARGB Front Fans(included with case)
-1x 120mm Black Fan(included with case)
-1x ARGB Fan Hub(included with case)
-1x Elite Nex PN600W PSU Pre-installed(included with case)
-1x User Manual
