COOLER MASTER - CMP-500-1RWRF60



CM CMP500 CASE W/600W PSU+3X120MM FAN-BK

Description

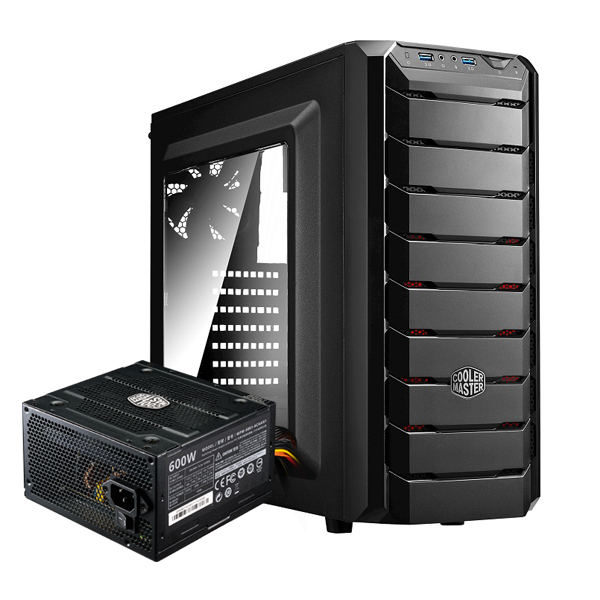

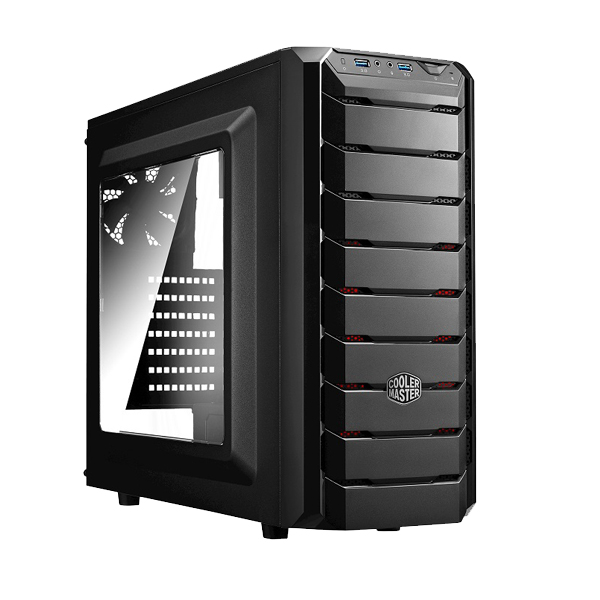

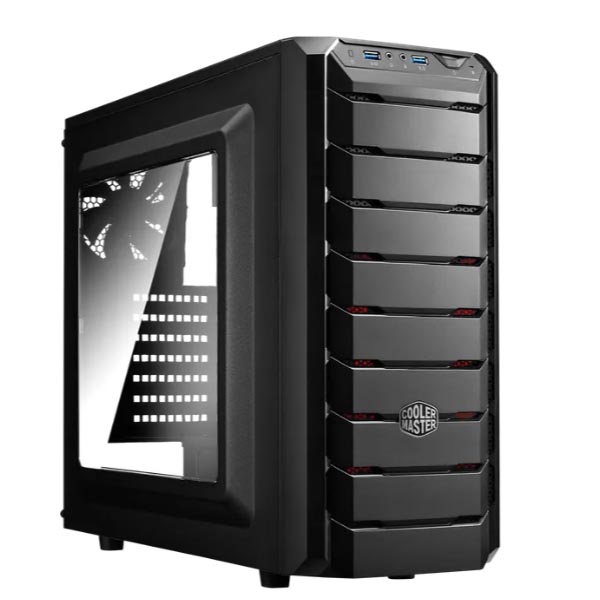

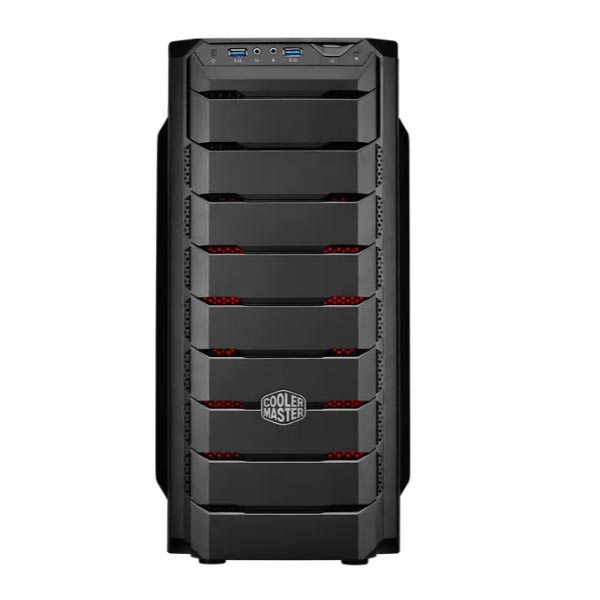

Cooler Master CMP500 ATX Mid-Tower Case With Built-In Elite 600W Power Supply And 2X 120MM RED LED Front Fans Plus 1X 120MM Black Rear Fan And Left Transparent Windowed Side Panel - Black Colour


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/main-components-cases-mid-tower/cmp-500-1rwrf60;

Cooler Master CMP500 ATX Mid-Tower Case With Built-In Elite 600W Power Supply And 2X 120MM RED LED Front Fans Plus 1X 120MM Black Rear Fan And Left Transparent Windowed Side Panel - Black Colour

Features:

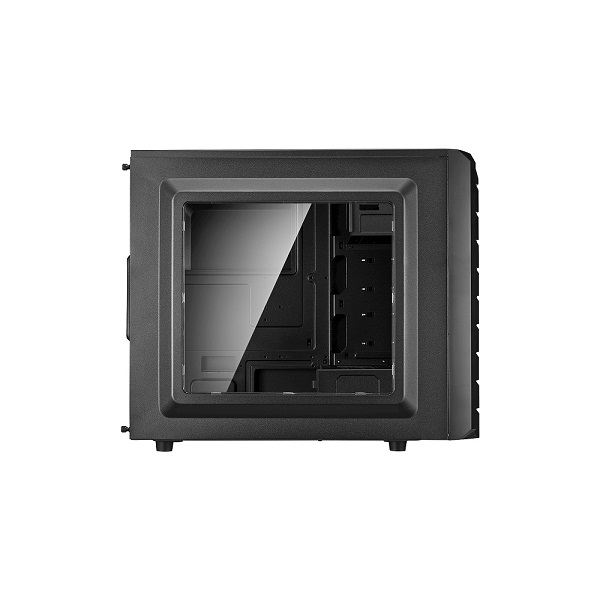

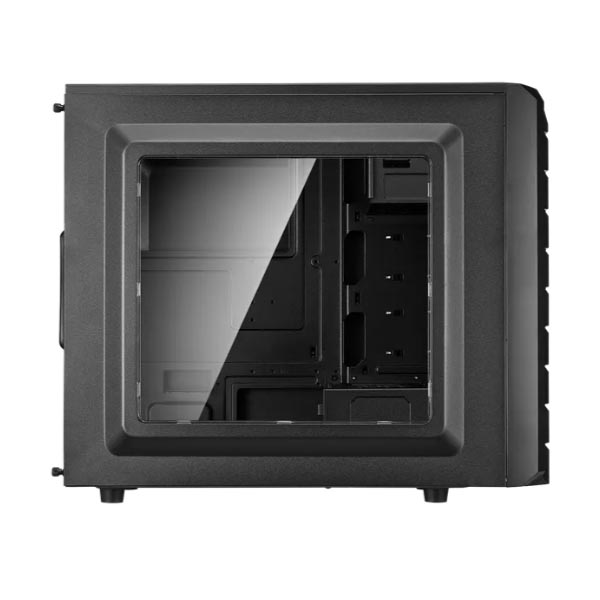

-Left transparent side panel
-Supports 120mm and 240mm radiator
-Micro-ATX, min-ITX and ATX M/B supported
-Built-in Elite V3 600W PSU @ 75% efficiency
-2x 120mm Red LED and 1x 120mm Black Fan pre-installed

Specifications:
-Product Name: CMP 500
-Model Number: CMP-500-1RWRF60
-Color: Black
-Materials: Steel, Plastic
-Side Window: Yes
-Motherboard Support: ATX, Micro-ATX, Mini-ITX
-Expansion Slots: 7
-5.25" Drive Bays: 1(Tool-free)
-3.5" Drive Bays: 2(Tool-free) + 1(ODD Cage)
-2.5" Drive Bays: 2(HDD Tray) + 2(ODD Cage)

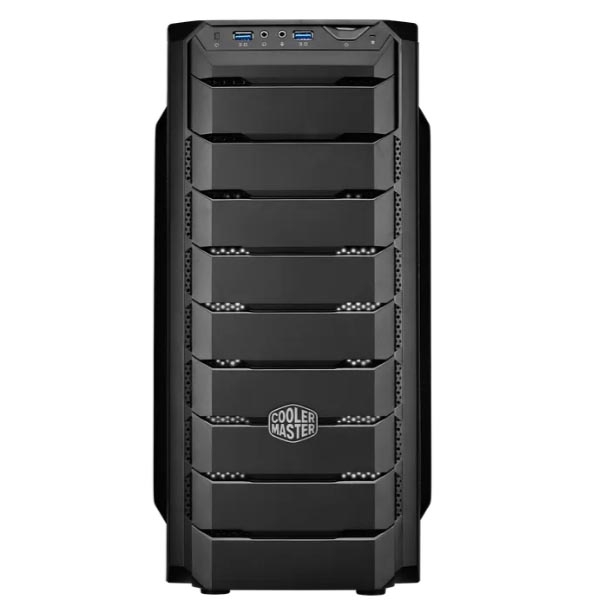

-I/O Panel: 2x USB3.0, Audio I/O
-Pre-installed Fans: 2x 120mm Red LED Fan / 1x 120mm Black Fan

Fan Support:
-Front: 2x 140mm/2x 120mm
-Top: 2x 120mm
-Rear: 1x 120mm

Liquid Cooling Support:
-Front Radiator: 120/140/240mm
-Top Radiator: 120/240mm
-Rear Radiator: 120mm

Clearances:
-CPU Cooler: 172mm
-Power Supply: 180mm/7.1"
-Graphics Card: 426mm

-Cable Routing-Behind M/B Tray: 24-31mm/0.94-1.22"
-Dust Filters: Front, Bottom

ELITE V3 230V 600W PSU SPECS:
-ATX Version: ATX 12V V2.31
-PFC: Active PFC (<0.9 Typical)
-Input Voltage: 200-240Vac
-Input Current: 4A
-Input Frequency: 47-63Hz
-Dimensions: (L)150x(W)140x(H)86mm
-Fan Size: 120mm
-Fan Bearing: Sleeve Fan
-Power Good Signal: 100-500ms
-Hold Up Time: >10ms @ 100% Full Load
-Efficiency: 82% @ Typical Load
-MTBF: >100,000 Hours
-Operating Temperature: 10-40°C
-Protections: OVP, OPP, OTP, SCP
-Regulatory: TUV, cTUVus, CE, FCC, BSMI
-Connectors: MB 24 Pin x1, CPU 12V 4+4 Pin x1, SATA Connectors x5, Peripheral 4 Pin x3, PCI-e 6+2 Pin x2

-Weight: 6400g
-Dimensions:(L)42.6 x (W)50.8 x (H)21.5cm

What's in the box:
-1x Cooler Master CMP500 ATX Case
-1x Elite V3 600W Power Supply pre-installed
-1x 120mm Black Fan(Rear) pre-installed
-2x 120mm Red LED Fans(Front) pre-installed
-1x User Manual
