COOLER MASTER MASTERCASE H500M MESH GAMING ATX CHASSIS

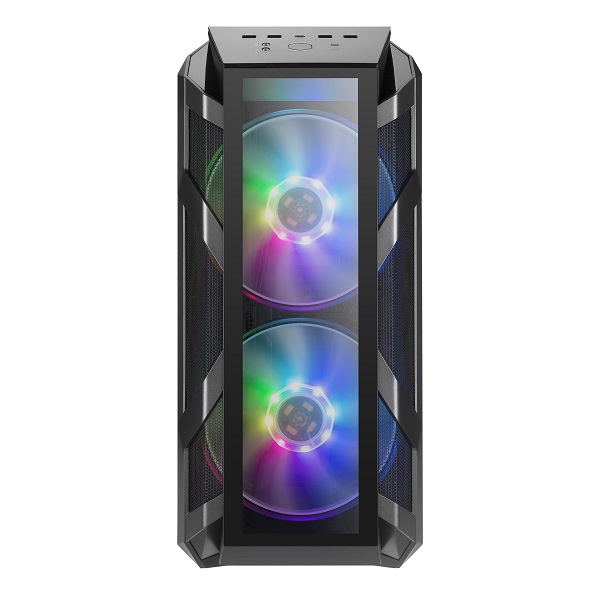

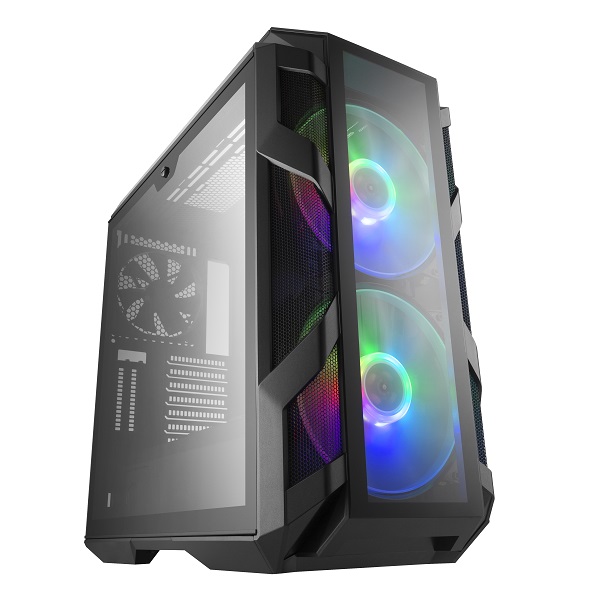

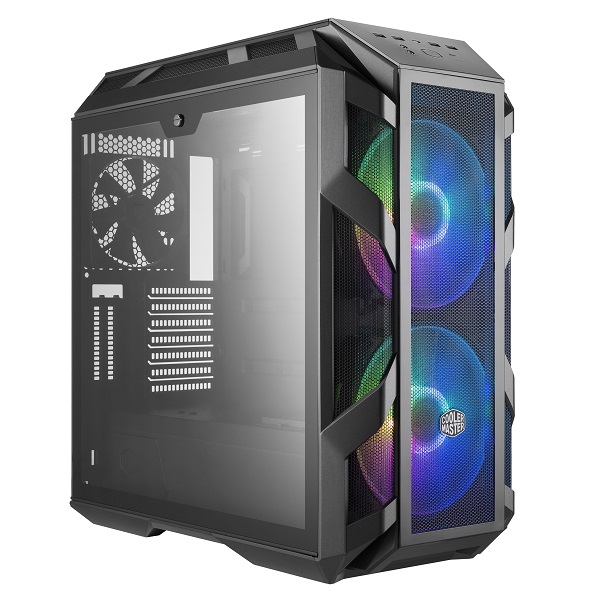

The MasterCase H500M offers 4 panels of tempered glass with a comprehensive system view. Complimented by 200mm addressable RGB fans. Both front mesh and glassy accessory are included to offer a choice between maximum airflow and aesthetics. Covers on frame and PSU shroud offer extra customization.

Features:
-Edge-to-edge glass side panels on both sides
-Glass top panel, and a glass front panel offer a clear and comprehensive system view
-Two 200mm Addressable RGB fans and controller

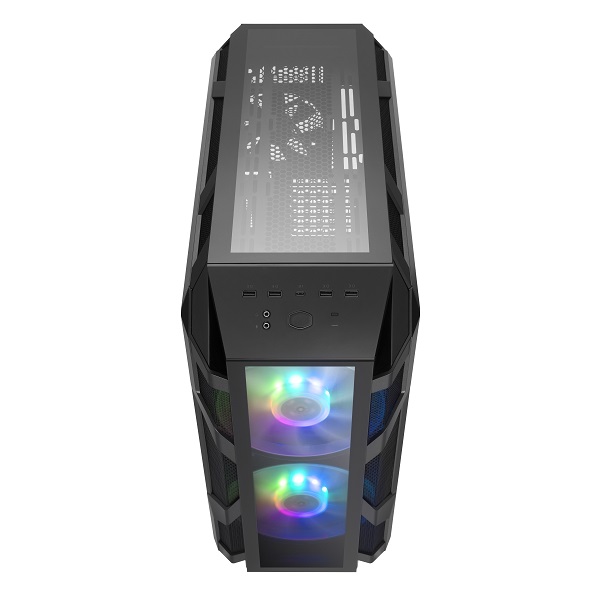

-I/O panel offers USB3.1 (Gen 2) Type-C port, and four additional USB3.0 ports
-Addressable RGB controller included to manage lighting of the system
-PSU cut out cover provides the option of showing off your PSU or leaving it out of sight
-Two additional PCI slots at the rear enable you to show off your graphics cards in the vertical position
The front panel is compatible with up to a 360mm radiator, including support for 1 x 200mm sized radiator
-The top bracket supports up to a 360mm radiator along with 200mm fans

Specifications:
-Materials: Outlook:Steel Mesh, Glass / Body: Steel
-Side Panel: Tempered Glass
-Dimensions: 544(L) x 248(W) x 546(H) mm
-Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (support up to 12" x 10.7")
-Expansion Slots: 7 + 2 (Support vertical graphics card installation)
-Drive Bays: 2.5/3.5": 2 / 2.5" SSD: 6
-I/O Port: USB3.1 Type-C x1, USB3.0 Type-A x4, Audio I/O (supports HD Audio)

Pre-installed Fans:
-Front: 200mm ARGB Fan x2 (Speed: 800RPM / Connector: 3Pin + ARGB 3pin)
-Rear: 140mm Fan x1 (Speed: 1200RPM / Connector: 3Pin)

Fan Support:
-Top: 120 fan x3 or 140mm/200mm fan x2
-Front: 120/140mm fan x3 or 200mm fan x2
-Rear: 120/140mm fan x1

Liquid Cooling Support:
-Top: 120/140/240/280/360mm (maximum thickness clearance 43mm)
-Front: 120/140/200/240/280/360mm (70mm clearance w/radiator lid & M.port removed)
-Rear: 120/140mm

Clearance:
-CPU Cooler: 190mm / Graphics card: 412mm / PSU: 200mm
-Power Supply Support: Bottom Mount, ATX PS2
