Specification

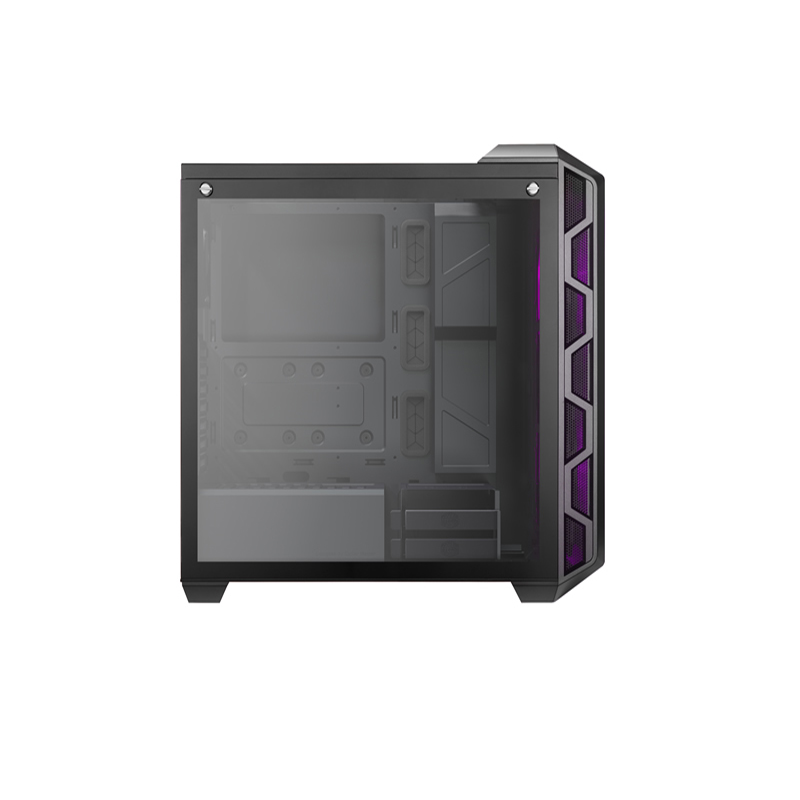

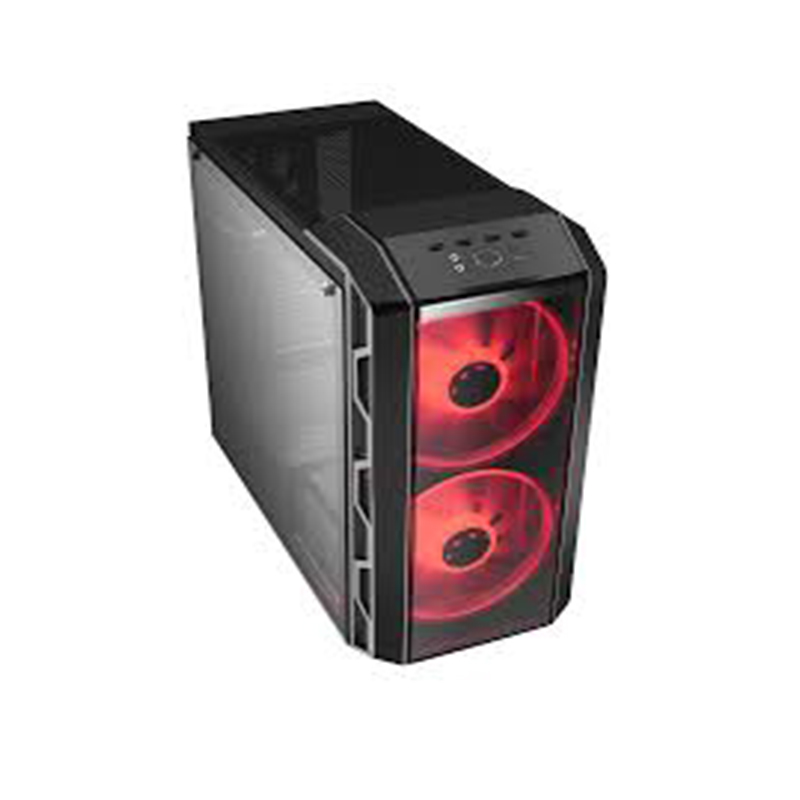

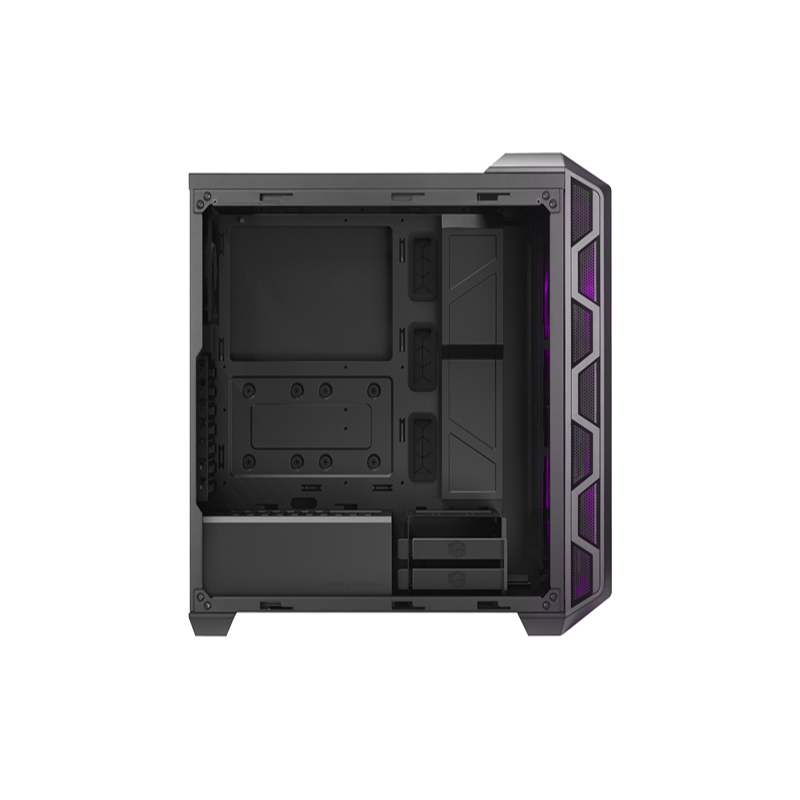

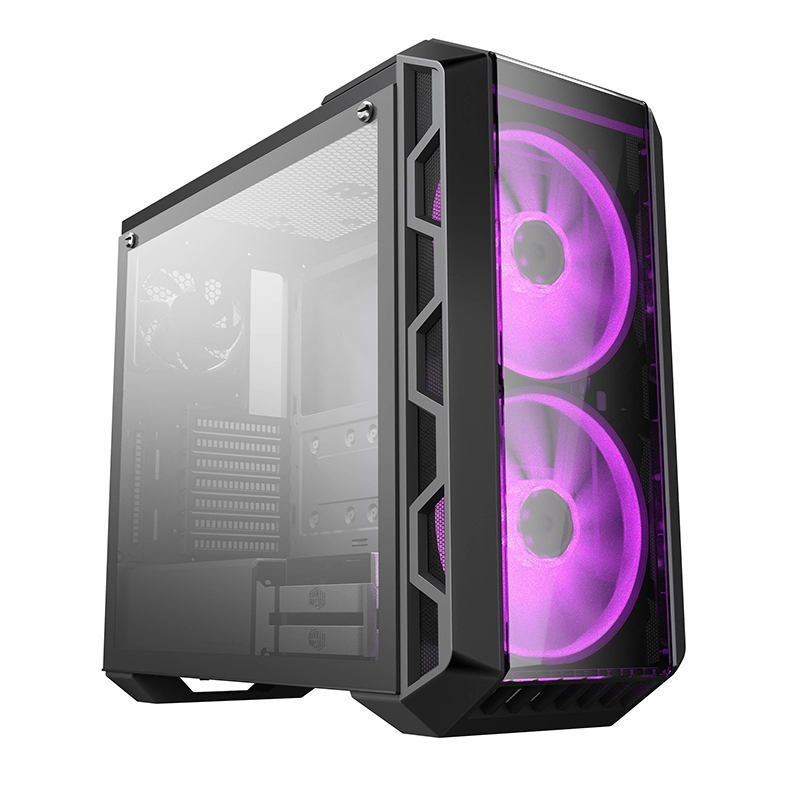

COOLER MASTER MASTERCASE H500 W/TG+ RGB ATX CHASSIS
The MasterCase H500 comes with both the mesh front panel and transparent panel offers a choice between aesthetics and airflow. Two 200mm RGB fans come pre-installed with an included RGB controller. The H500 offers 410mm of GPU clearance for the latest cards. Easy transportation a handle has been fitted at the front of the top panel.
Features:
-RGB Controller included, two 200mm RGB fans come pre-installed with support for one optional 200mm fan on the top panel
-Up to 360mm radiator support in front and 240mm
-A light grey tinted tempered glass side panel is ideal for showcasing your build with (RGB) lighting
-The raised front panel covers a portion of the top panel to act as a handle for transport
-Air passes through a flush magnetic filter on the top panel.
Specifications:
Material:
-Steel (Body)
-Mesh, Acrylic & Plastic (Front Panel)
-Steel & Plastic (Top Panel)
-Tempered Glass (Left Side Panel)
-Steel (Right Side Panel)
-Dimensions: 450x220x445mm (Excl. Panels); 525x228x502mm (Incl. Panels)
Motherboard Support: ATX, Micro-ATX, Mini-ITX
-Expansion Slots: 7
-Drive Bays: Combo 3.5/2.5" X2; SSD X2
I/O Panel:
-Power-LED colour: White
-HDD-LED colour: White
-USB Ports: 2x USB2.0, 2x USB3.0
-Audio In/Out: Yes
-Reset Switch: Yes
-RGB Control: On-board button on the RGB Controller or via the Reset Switch (1x 1-to-3 RGB Splitter Cable Included)
Pre-installed Fans:
-Front: 2x 200mm RGB Fan
-Rear: 1x 120mm (Black) Fan
Fan Support:
-Top: 2x 120/140mm, 1x 200mm
-Front: 3x 120mm, 2x 140/200mm
-Rear: 1x 120mm
Radiator:
-Top: 120/140/240mm
-Front: 120/140/200/240/280/360mm
-Rear: 120mm
Clearances:
-CPU Cooler: 167mm/6.5"; PSU: 180mm/7.1
-GPU: 410mm/16.1"
-Cable Routing: Behind Motherboard Tray - 30mm
-Dust Filters: Top, Front, Bottom
-Power Supply Support: Bottom Mount, ATX
