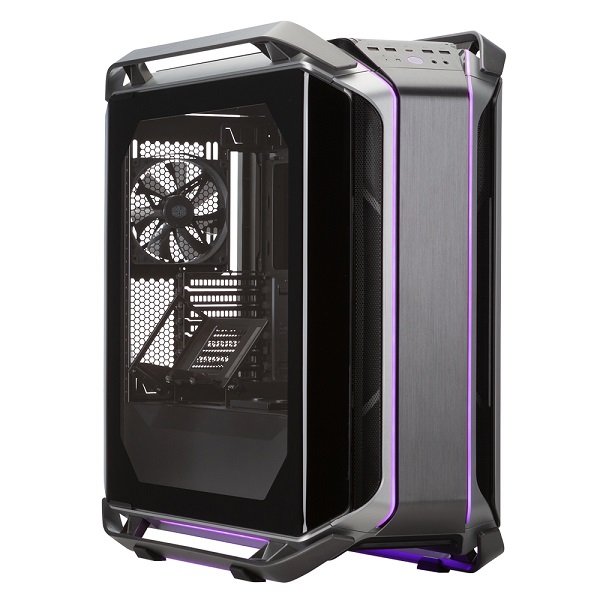

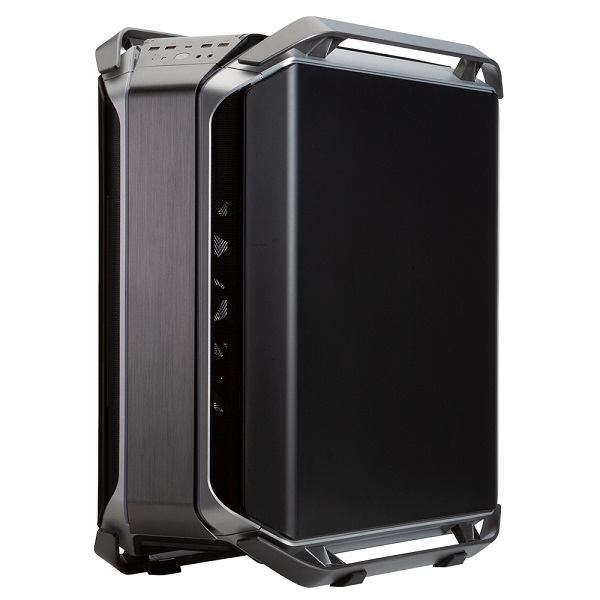

COOLER MASTER - MCC-C700M-MG5N-S00



CM COSMOS C700M XL-ATX CHASSIS

Description

The freedom in layout organization & the support for unique GPU mounting make custom building accessible as soon as the COSMOS C700M is unboxed. The idea is to inspire growth in builders across all levels since the chassis is only as complex.


Specification

CM COSMOS C700M XL-ATX Chassis

Features:

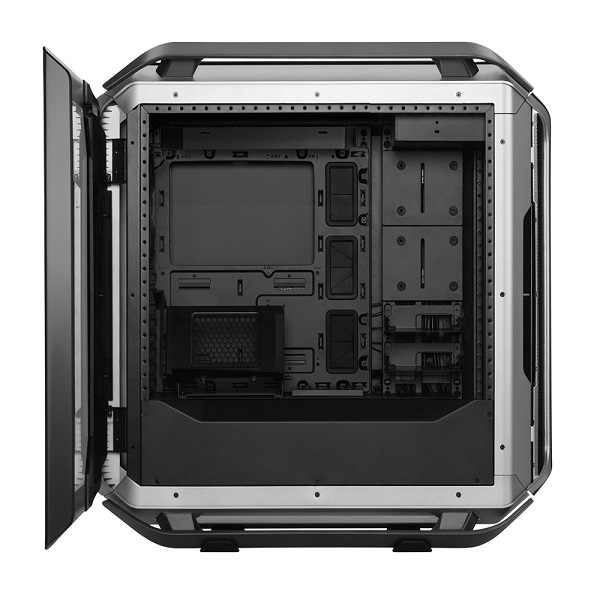

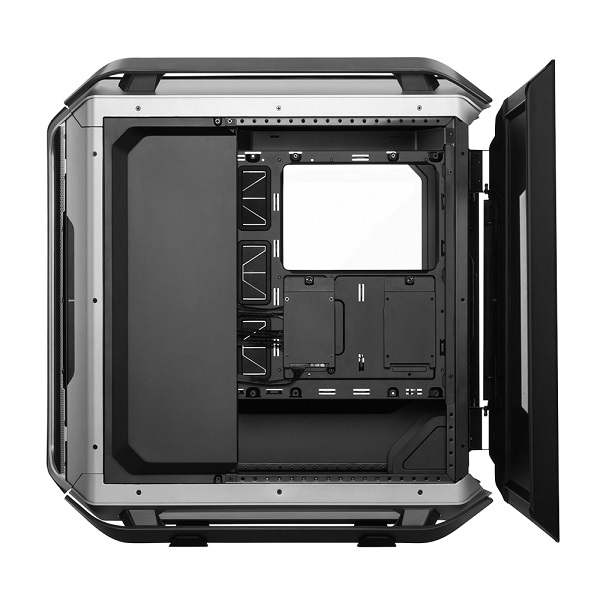

The unique frame design supports a conventional, chimney, inverse layout, or a fully customized layout. The motherboard tray is also removable for installation outside of the chassis
The graphics card bracket can be mounted vertically or horizontally on either the PSU midplate or the M.Port. The bracket can also be rotated from 0 to 90 degrees. Also included is a 400mm riser cable for the convenience of being able to connect a vertically mounted graphics card to the motherboard
Two parallel strips of addressable RGB lighting run continuously from the top panel to the front panel, with ambient ARGB lighting on the bottom that reflects against the aluminum bars
The 3 included covers can be placed on either the M.Port or on the mid-plate, with the ability to mount SSD storage or a reservoir
A flat radiator bracket design offers more versatility for liquid cooling with the ability to be mounted on the top, front, or bottom of the frame. The two included brackets can each support a 420mm radiator, with the ability to mount fans and a radiator on either side of the bracket
Brushed aluminum spans the top panel and front panel, with cast aluminum handles (and feet) that provide protection & support for carry the case
A panoramic tempered glass side panel, with two curved edges, offer a wide view of the system build
The advanced I/O panel comes with a 4-Pole headset jack, USB3.1 (Gen 2) Type-C port, four additional USB3.0 ports, PWM fan speed button, and an addressable RGB control button

Specifications:
Product Name: COSMOS C700M
Product Number: MCC-C700M-MG5N-S00
Available Color: Grey, Silver & Black
Materials: Body: Steel, Side Panel: Curved Tempered Glass, steel
Dimensions: 650(L) x 306(W) x 651(H) mm
Motherboard: Mini-ITX, Micro-ATX, ATX, E-ATX (support up to 12" x 10.7")
Expansion Slots: 8
Drive Bays: 5.25": 1, Combo 3.5/2.5": 4 + 1 (in the accessory box), SSD: 4

I/O Panel:
USB Ports: USB3.1 Type-C x1, USB3.0 Type-A x4
Audio: 3.5mm Headset jack (Audio+Mic) x1, 3.5mm Mic jack x1
Fans/Lighting: Fan Speed Control Button, ARGB Control Button

Pre-installed Fans:
Front: 140mm PWM Fan x3 (Speed: 1200RPM/ Connector: 4Pin)
Rear: 140mm PWM Fan x1 (Speed: 1200RPM/ Connector: 4Pin)

Fan Support:
Top: 120/140mm fan x3
Front: 120/140mm fan x3
Rear: 120/140mm fan x1
Bottom: 120/140mm fan x2 (bracket needed)

Radiator Support:
Top: 120/140/240/280/360/420mm (remove ODD, maximum thickness clearance 70mm)
Front: 120/140/240/280/360/420mm (remove ODD)
Rear: 120/140mm
Bottom: 120/140/240mm

Clearances:
CPU Cooler: 198mm
Graphics card: 490mm (without 3.5" HDD BRK), 320mm (with 3.5" HDD BRK)
Accessories: 400mm PCI-E x16 Riser Cable
Carton dimension: 750(L) x 411(W) x 736(H) mm
