COOLER MASTER - MCB-D500D-KGNN-S01

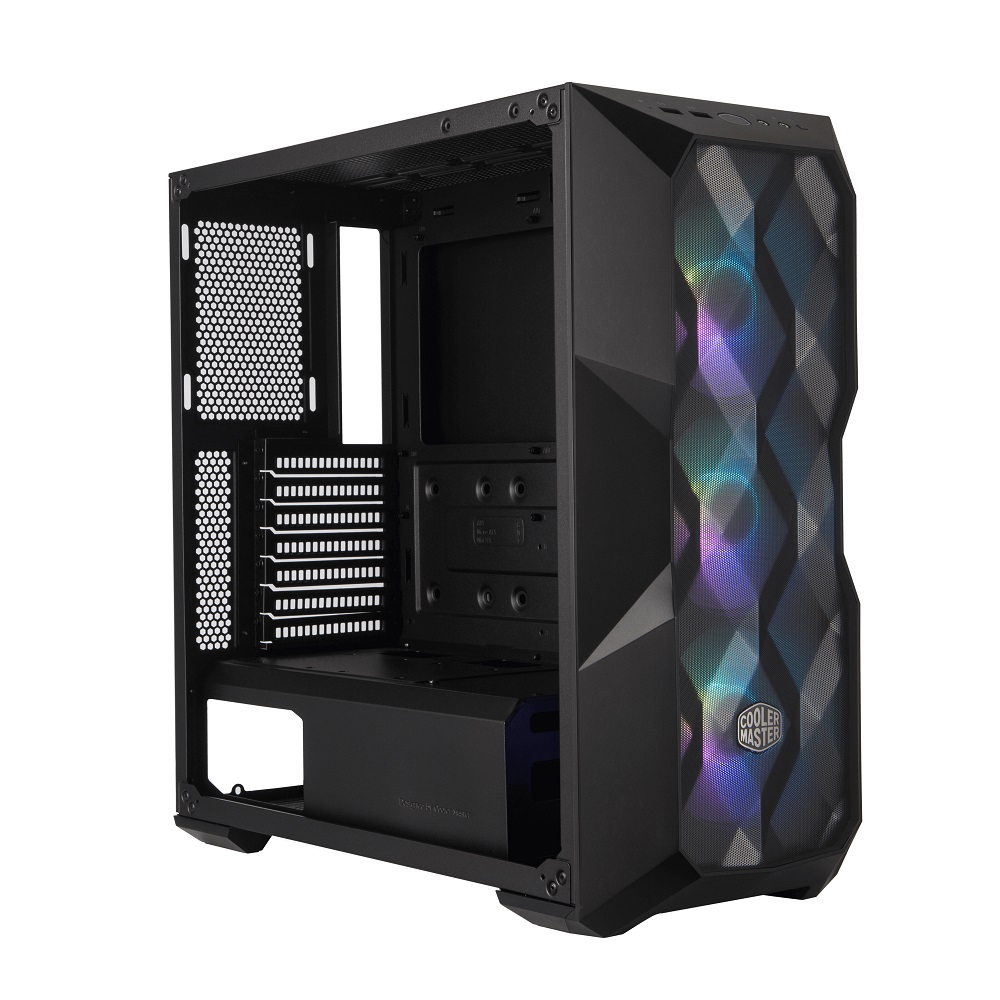

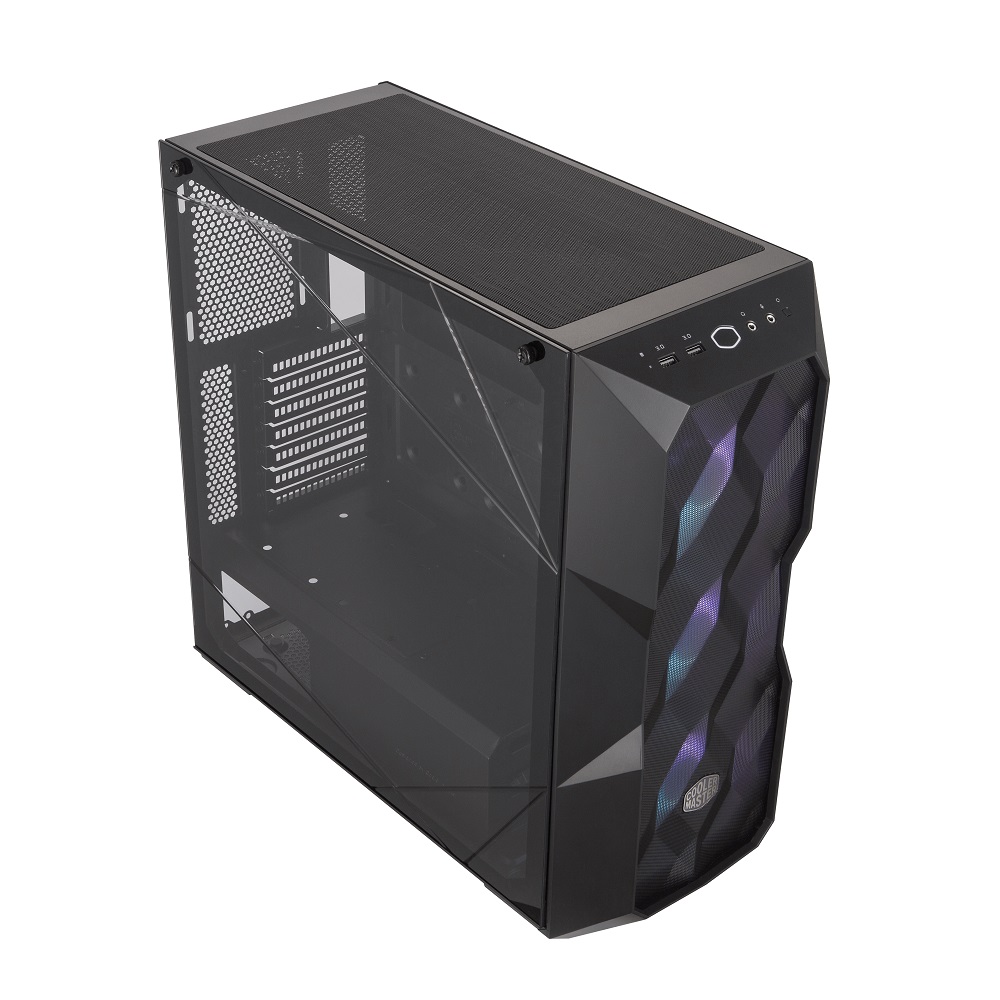

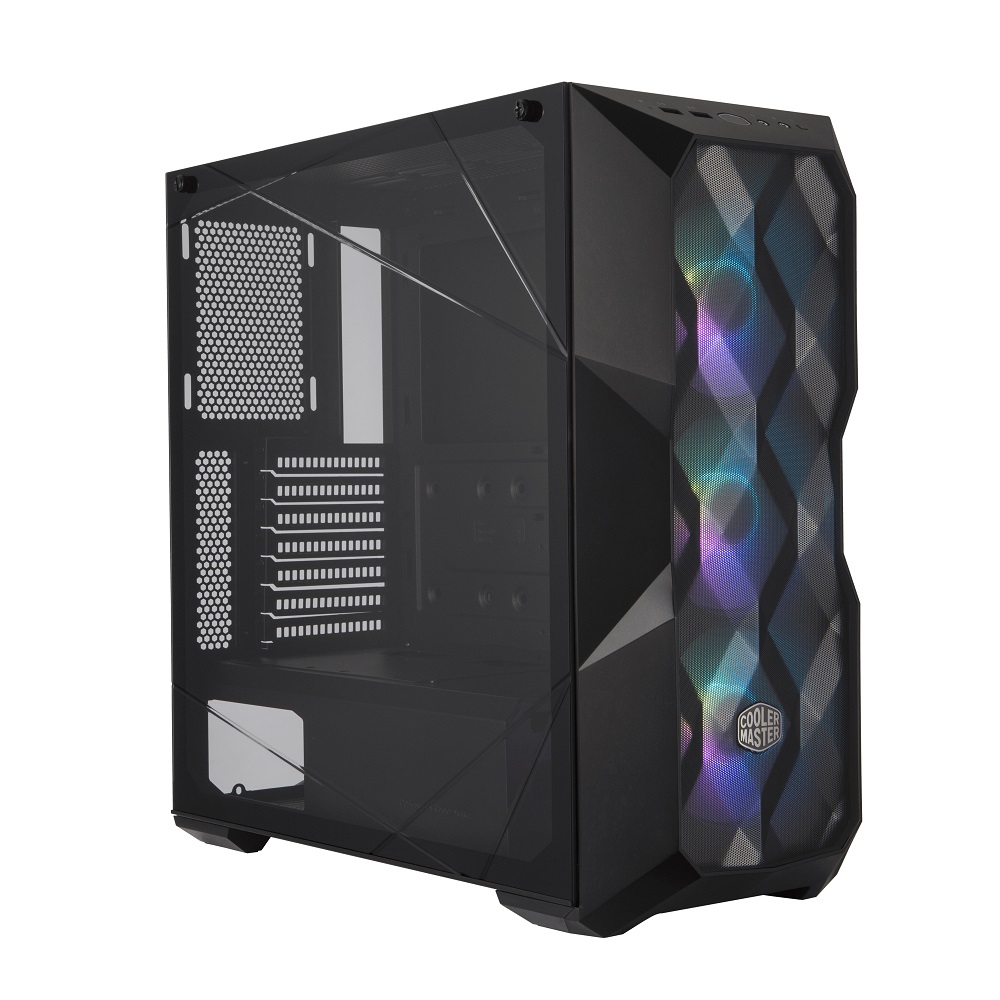

COOLER MASTER MBOX TD500 MESH TG ATX -BK

Description

The MasterBox TD500 Mesh embody "airflow performance". Thi chassis comes with 3 pre-installed ARGB fans and demostrates the unique effect of ARGB through the Crystaline Tempered Glass.


Specification

COOLER MASTER MASTERBOX TD500 MESH ATX CASE W/TEMPERED GLASS

The MasterBox TD500 Mesh embody "airflow performance". The chassis comes with 3 pre-installed ARGB fans and demostrates the unique effect of ARGB through the Crystaline Tempered Glass.

Features:
-Polygonal Mesh features 3-dimensional contour and provides unobsrtucted airflow and dust filtration
-Crystalline Tempered Glass

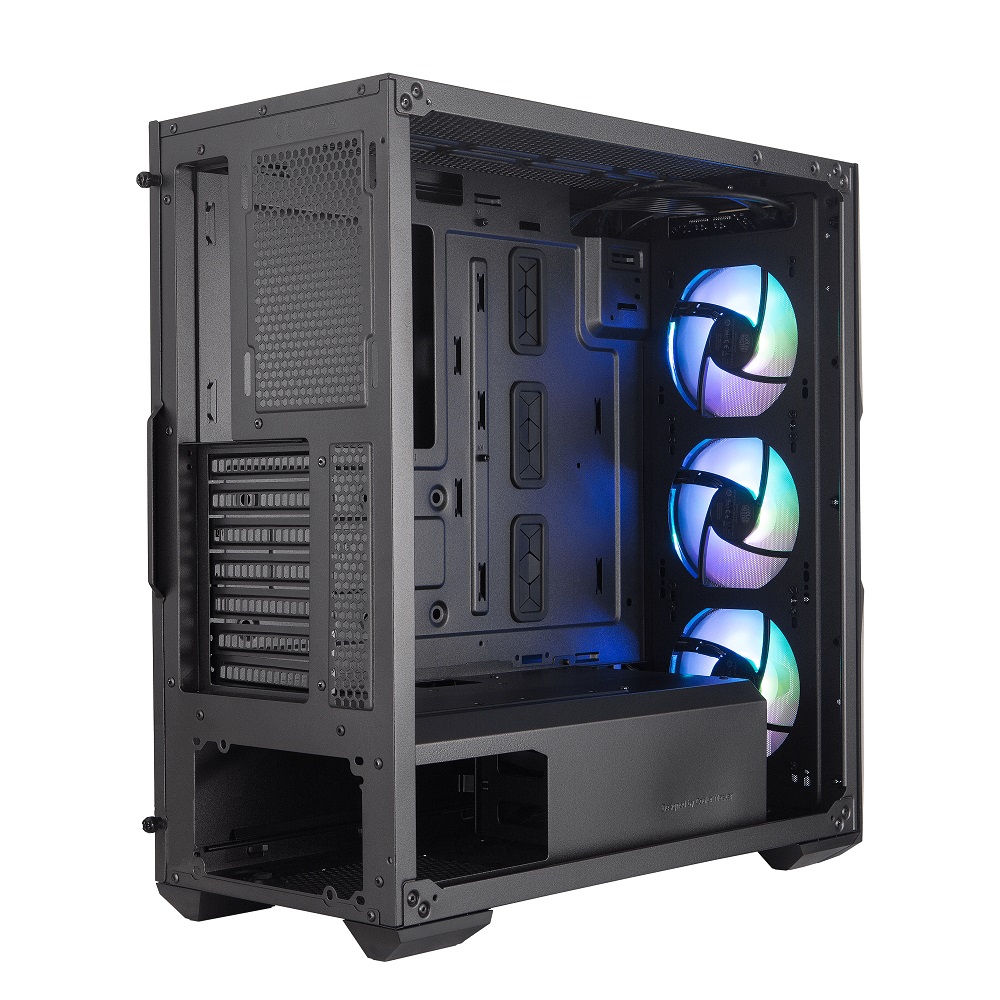

-3 ARGB fans flood Polygonal Mesh with lighting
-Dual 360mm Radiator Support
-Supports up to 7 120mm fans
-Support up to 410mm GPU, 165mm GPU cooler and 180mm PSU in length

Specificiations:
-Left Side Panel: Tempered Glass
-Motherboard Support: M-ITX/M-ATX/ATX/SSI/CEB/E-ATX
-Expansion Slots: 7"
-Cable Routing: Behind MB: 19mm/0.74"
-Dust Filters: Front, Top, Bottom
-Power Supply: Bottom Mount: ATX

Drive Bays:
-3.5"/2.5"Combo(2)
-2.5"SSD 4(2+2 combo)

Pre-Installed Fans:
-Top: N/A
-Front: 120mm ARGB x 3
-Rear: N/A

Fan Support:
-Top: 120mm x 3/ 140mm x 2
-Front: 120mm x 3/140mm x 2
-Rear: 120mm x 1

Radiator Support:
-Top: 120/240/360mm
-Front: 140/140/240/280/360mm
-Rear: 120mm

I/O Panel:
-USB Ports: USB3.0 x 2
-Audio In/Out: 3.5mm Audio/3.5mm Mic Jack
-Other: ARGB Controller

Clearance:
-CPU Cooler: 165mm/6.49"
-Power Supply: 180mm/7.08"
-Graphics Card: 410mm/16.10
