The MasterBox TD500 makes you stand out from the rest with a Three Dimensional diamond-cut design extending from the front bezel to side panel. The included RGB controller connects 3 pre-installed RGB LED fans & an RGB power button.

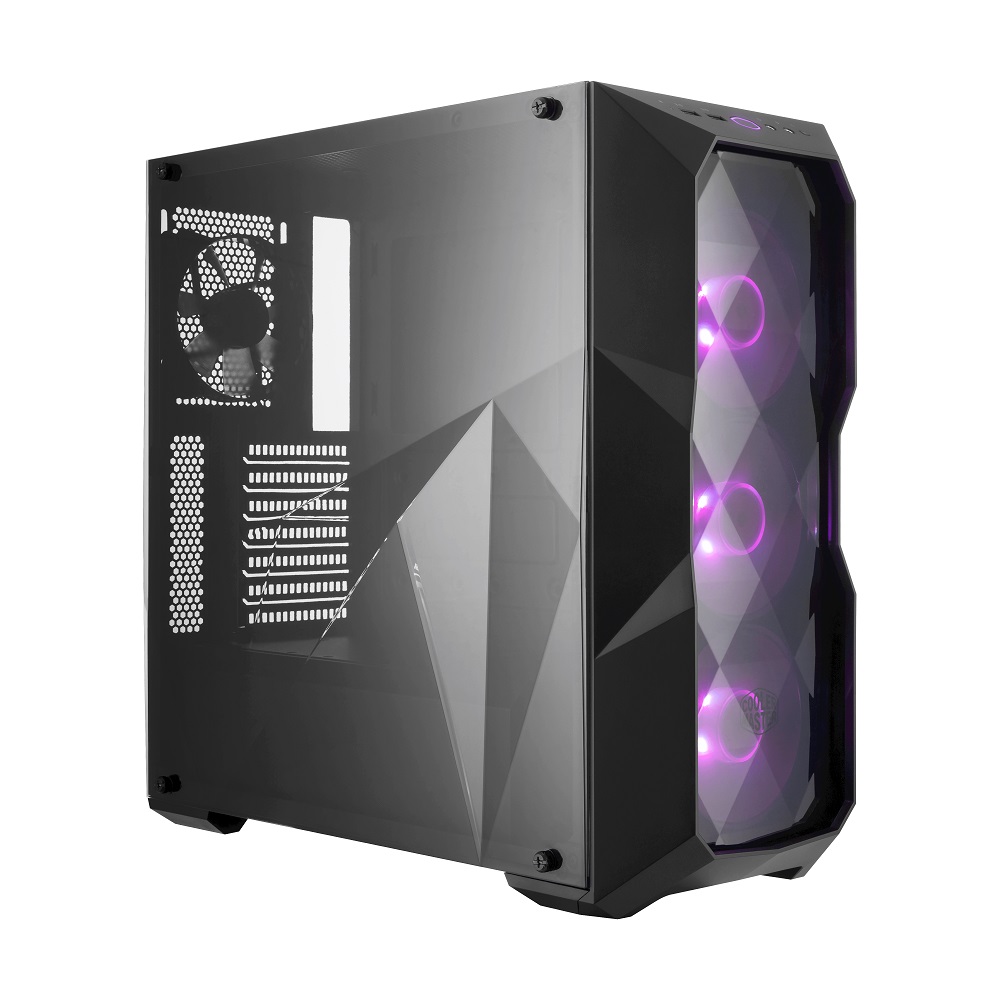

CM MasterBox TD500 RGB ATX Case

Stand out from the rest with a Three Dimensional diamond cut design extending from the front bezel to side panel
The included RGB controller connects three pre-installed RGB LED fans and an RGB power button to create an amazing lighting effect
An additional cable cover takes cable management to the next level
Assemble clean builds like a pro
Support for a total of six 120mm fans and support for front, top and rear radiator placement, ensure you don't have to compromise on performance
Equip yourself with the latest graphics card up to a length of 410mm for your cutting-edge system build
The 19mm width space behind the mainboard tray gives you plenty of cable management options to keep your build nice and clean

Product Number: MCB-D500D-KANN-S00
Product Name: MasterBox TD500
Available Colour: Black
Materials: Steel, Plastic
Dimensions; 493(L) x 217(W) x 468(H)mm
Motherboard Support; ATX (up to 272mm width), Micro-ATX, Mini-ITX
Expansion Slots: 7
3.5" HDD X2 (Max. 2); 2.5" SSD X4 (Max. 6)
I/O Port: USB3.0 x2, Audio In/Out
Pre-installed Fans: Front: 120mm RGB Fan x3, Rear: 120mm black fan x1
Fan Support: Front: 120mm x3/ 140 x2, Top: 120/140mm x2, Rear: 120mm x1
Radiator Support: Front: 120/140/240/280/360mm, Rear: 120mm, Top: 120/240mm
Clearances: CPU Cooler: 165mm/6.49", PSU: 180mm/7.08", GPU: 410mm/16.10"
Cable Routing: Behind MB Tray - 19mm/0.74"
Dust Filters: Front, Top, Bottom
Power Supply Support: Bottom mount, ATX
