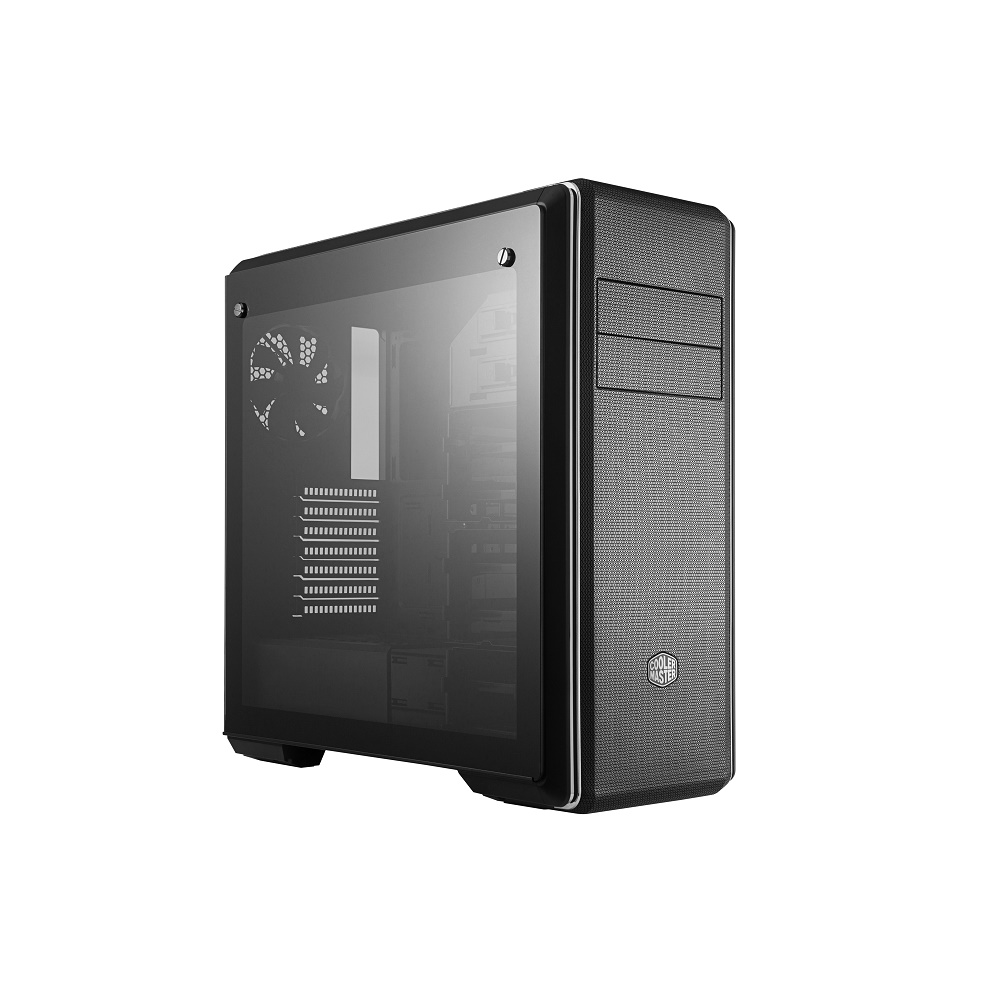

COOLER MASTER - MCB-CM694-KG5N-S00



COOLER MASTER MBOX CM694 W/TG+ODD ATX-BK

Description

MasterBox CM694 stays true to its origin while decreasing its footprint by 10% in comparison to the original CM690 III. Using only the latest technology, the fine mesh on the CM694 achieves optimal airflow.


Specification

COOLER MASTER MASTERBOX CM694 W/TG + ODD ATX BLACK

The CM690 line is praised for its build versatility and expansive capabilities the new MasterBoxCM694 stays true to its origin while decreasing its footprint by 10% in comparison to the original CM690 III. Using only the latest technology, the fine mesh on the CM694 achieves optimal airflow while also filtering out dust with a single layer.

Features:
-Curved Mesh
-Modular drive cages
-Extensive Water Cooling Support
-Graphics Card Support Up To 410mm
-Graphics Card Stabilizer

Specifications:
-Exterior Colour: Black
-Motherboard Support: Mini-ITX/Micro-ATX/ATX
-Expansions slots: 7
-Cable routing: Behind MB Tray: 27~29mm
-Dust Filters: Top, front, bottom
-Power Supply support: Bottom mount, ATX PS2

Drive Bays:
-5.25": 2
-3.5/2.5" Combo: 6(3x drive cages)
-2.5" Combo: 8(2+6 combo)

I/O Panel:
-USB Ports:
--USB3.0 Type A x 2
--USB3.1 Type-C x 1
-Audio In/Out: 4-pole 3.5mm headset jack(Mic+Audio) x 1
-Other: Reset switch

Pre-installed Fans:
-Front: 120mm fan x 2
-Rear: 120mm fan x 1

Fan Support:
-Top: 120mm x 3/140mm x 2
-Front: 120mm x 3/140mm x 2
-Rear: 120mm x 1

Radiator Support:
-Top: 120/140/240/280/360mm
-Front: 120/140/240/280/360mm
-Rear: 120mm

Clearances:
-CPU Cooler: 171mm
-Power Supply: 276mm(max)
-GPU: 410mm(max)/350(w/stabilier)/280mm(w/stabilier+drive cage)

Package Specs:
-Weight: 9.4kg
-Dimensions(L*W*H): 560*312*604mm

In the Box:
-CM694 ATX x 1
-120mm black fan(front) x 2
-120mm black fan(rear) x 1
