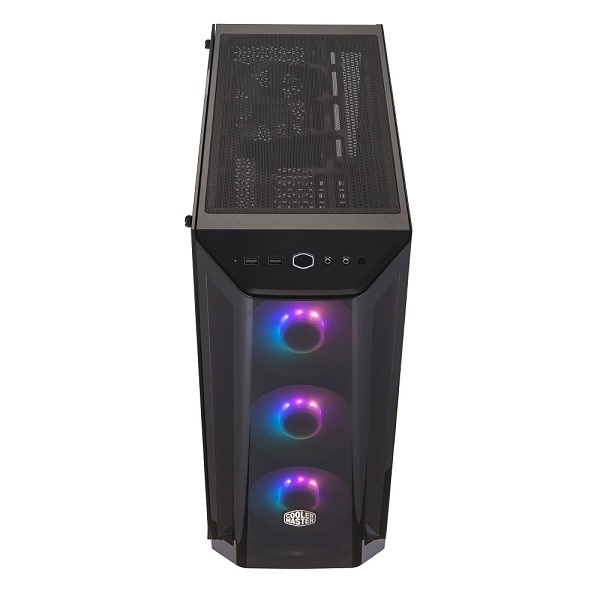

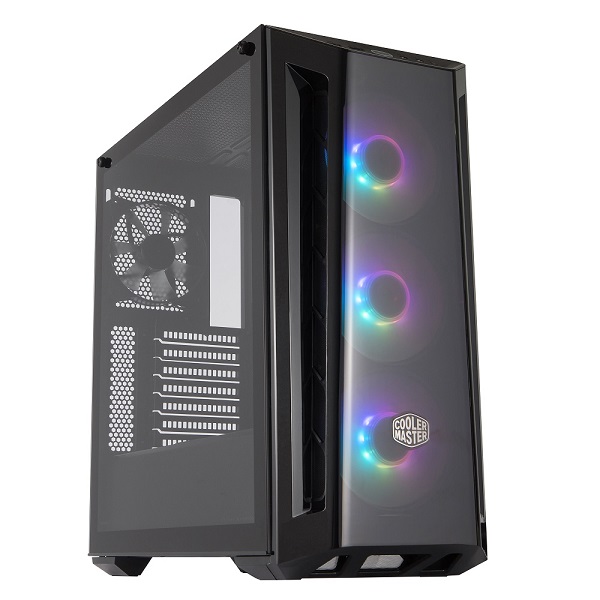

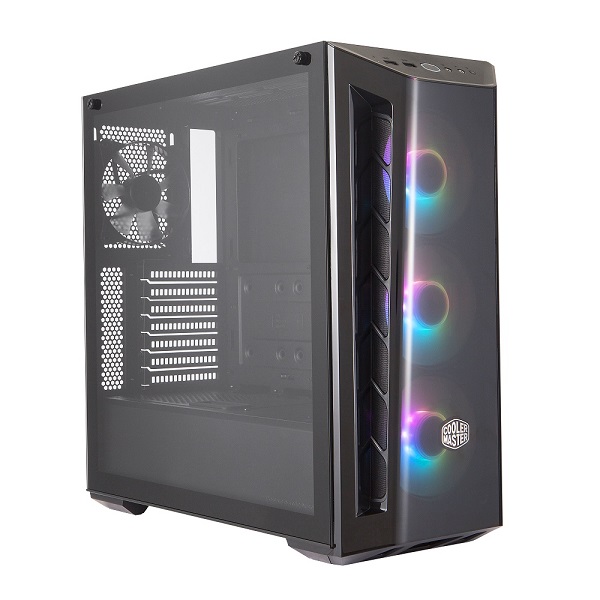

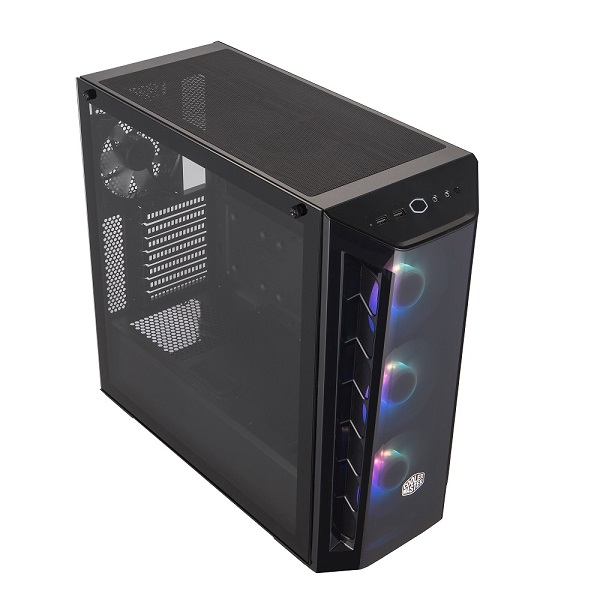

COOLER MASTER - MCB-B520-KGNN-RGA



COOLER MASTER MBOX MB520 TG+ARGB ATX-BK

Description

MasterBox MB520 offer large mesh intakes on each side of the front panel which provides considerable airflow to the system. This chassis also comes with a tempered glass side panel to show off your PC build.


Specification

COOLER MASTER MASTERBOX MB520 W/TG+3 ARGB FANS ATX BLACK

The MasterBox MB520 offers a DarkMirror Front panel which adds a sharper contrast to the pre-installed ARGB fans. On each side of the front panel, mesh ventilation spans from top to bottom which provides considerable airflow to the system. The mesh front panel ventilation works collectively with the top and rear ventilation to optimize airflow.

Features:
-DarkMirror Front Panel provides sharper contrast of the ARGB fans
-Large, mesh intakes on each side of front panel provides considerable airflow to system
-Comes with 3 pre-installed AGRB fans which can be managed either via motherboard or inclduded controller
-Edge to edge tempered glass side panel
-Filtered ventilation on top panel provides additional support
-Versatile cooling options with support up to 7 x 120mm fans
-Room for upgrades

Specifications:
-Motherboard Support: Mini-ITX, Micro-ATX, ATX, ETX
-Expansion Slots: 7
-Cable Routing: Behind MB Tray: 19-27mm
-Dust Filters: Front, Top, Bottom
-Power Supply: Bottom Mount, ATX
Drive Bays:
-5.25" ODD: N/A
-3.5"/2.5" Combo: 2(Max)
-2.5" SSD: 4(Max)
I/O Panel:
-USB Ports: 2x USB 3.2 GEN 1 (USB3.0)
-Audio IN/OUT: 1x3.5mm Aud Jack/1x 3.5mm Mic Jack
-Other: 1x ARGB controller/1x ARGB 2to3 Splitter
Pre-installed Fans:
-Front: 3x 120mm ARGB fans
-Rear: 1x 120mm black fan
Radiator Support:
-Top: 120/240/360mm
-Front: 120*140/240/280/360mm
-Rear: 120mm
Clearance:
-CPU Cooler: 165mm
-Power Supply: 180mm
-Graphics Card: 410mm
