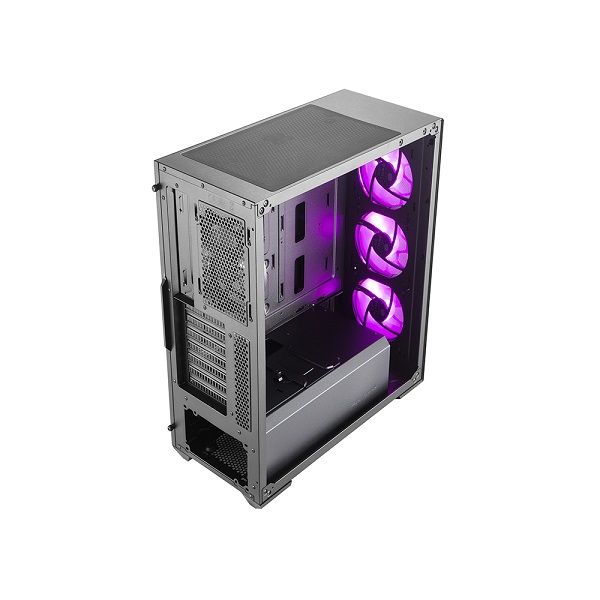

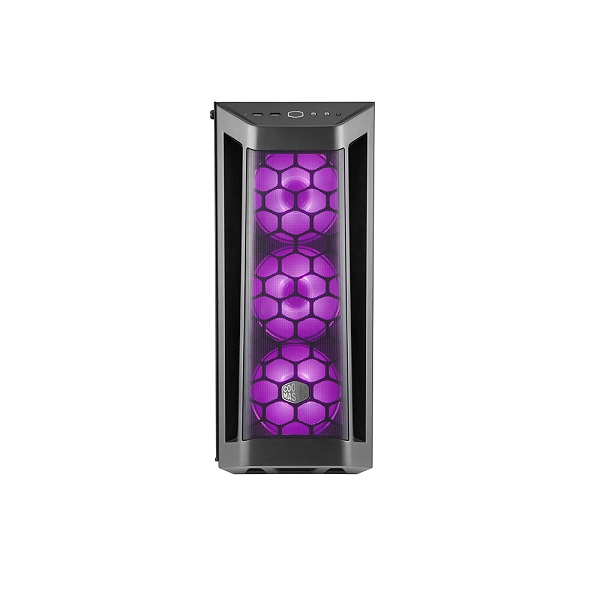

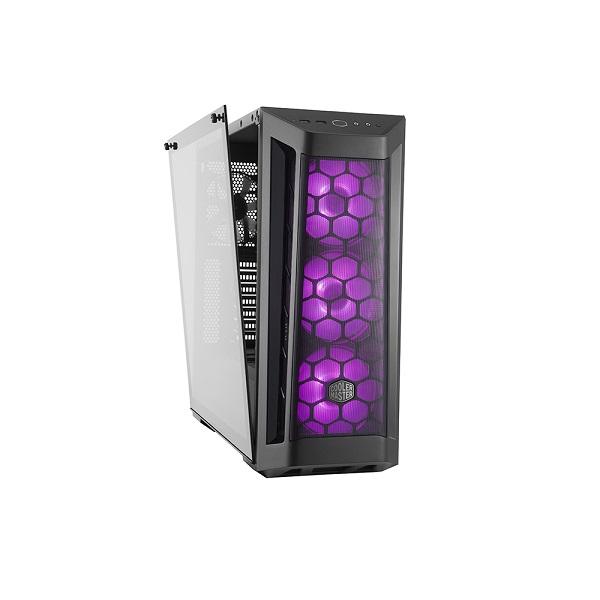

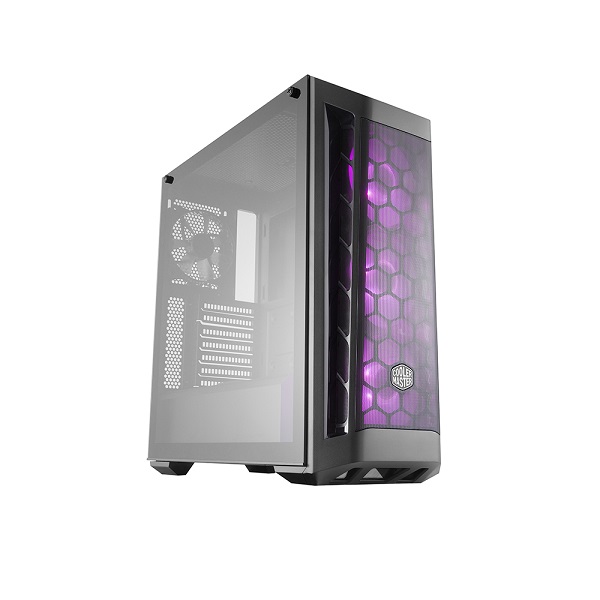

COOLER MASTER - MCB-B511D-KGNN-RGB



COOLER MASTER MBOX MB511 W/RGB ATX-BK

Description

The MasterBox MB511 offers aggressive intake of through the mesh front panel and also ventilation on top for added thermal support. Three 120mm RGB LED fans are pre-installed and one RGB controller is included. MB511 supports up to 210mm GPU.


Specification

COOLER MASTER MASTERBOX MB511 WITH RGB FAN AND CONTROLLER BLACK

The MasterBox MB511 offers aggressive intake of through the mesh front panel and also ventilation on top for added thermal support. Three 120mm RGB LED fans are pre-installed and one RGB controller is included. MB511 supports up to 210mm GPU.

Features:
-Efficient airflow for demanding systems with the mesh front panel
-Large intakes on each side of the front panel pay tribute to high performance
-Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect
-One RGB controller is included in the accessory pack
-Certified compatible with: ASUS, Gigabyte, MSI and ASRock motherboards
-Support for a total of six 120mm fans, front, top and rear radiator placements
-Showcase your build and system lighting effect through 4mm thickness tempered glass side panel
-SSD Bracket-Mount an extra SSD on the PSU shroud for more storage

Specifications:
-Materials: Steel, Plastic, Tempered Glass
-Dimensions: 496(L) x 217(W) x 469(H) mm
-Motherboard Support: ATX (up to 272mm width), Micro-ATX, Mini-ITX
-Expansion Slots: 7
-Drive Bays: Combo 3.5/2.5": 2(Max.2)/ SSD: 5(Max.6)
-I/O Port: USB3.0 x2/ Audio I/O
-RGB Control: RGB Controller included, 1 to 3 RGB splitter cable included

Pre-Installed Fans:
-Front: 120mm RGB Fan x3
-Rear: 120mm x1

Fan Support:
-Top: 120mm x2 /140mm x2
-Front: 120mm x3/ 140mm x2 (can only mount behind the front plate)
-Rear: 120mm x1

Radiator Support:
-Front: 120/140/240/280/360mm radiator (75mm clearance)
-Top: 120/240mm
-Rear: 120mm

Clearance:
-CPU Cooler: 165mm
-PSU: 180mm
-Graphics card: 410mm
-Cable Routing - Behind motherboard tray: 19mm
-Dust Filters: Front, top, bottom
-Power Supply Support: Bottom mount, ATX
