DEEPCOOL - DC-QUADSTELLAR



DEEPCOOL QUADSTELLAR FOUR CABIN ATX-BK

Description

QUADSTELLAR provides a stylish, high-tech housing for the E-ATX mainboard, multiple graphics cards, power supply & cooling components in four independent compartments to eliminate intercompartment heat dissipation interference.


Specification

DEEPCOOL QUADSTELLAR FOUR CABIN ATX CASE W/TG GLASS BLACK

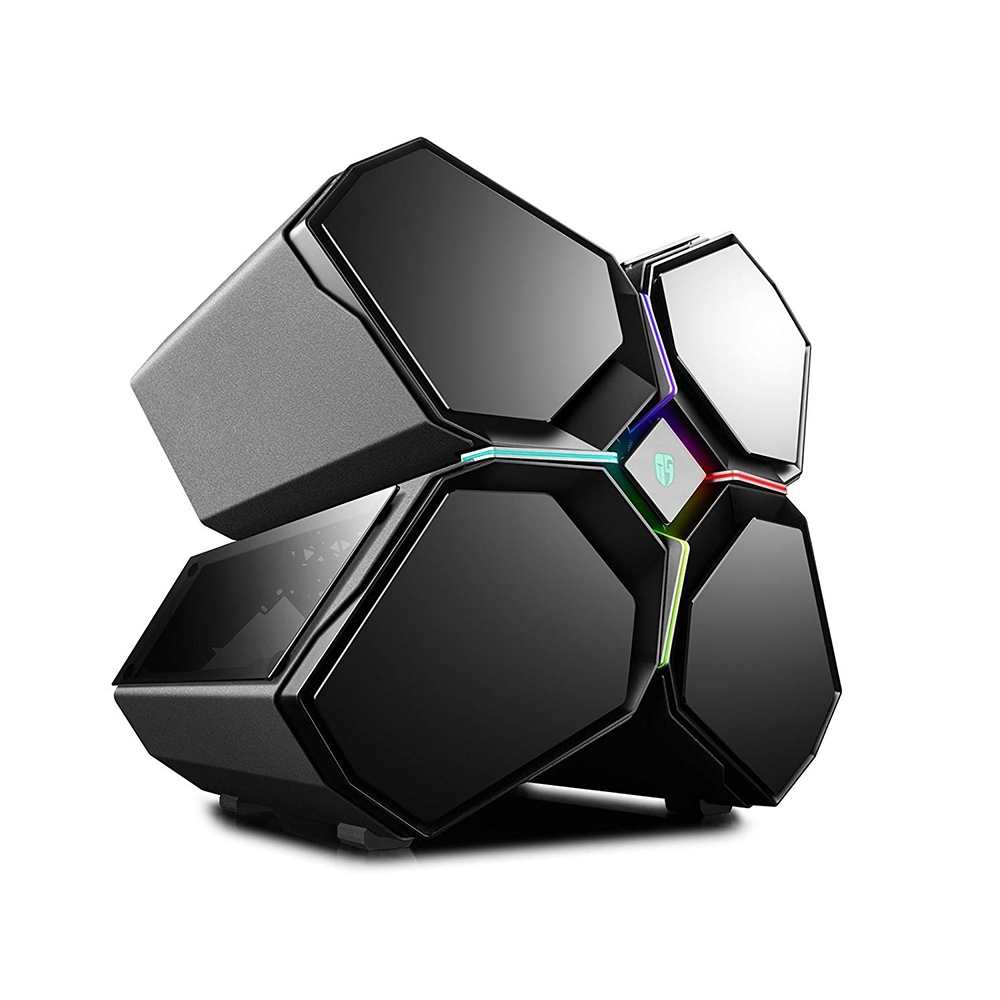

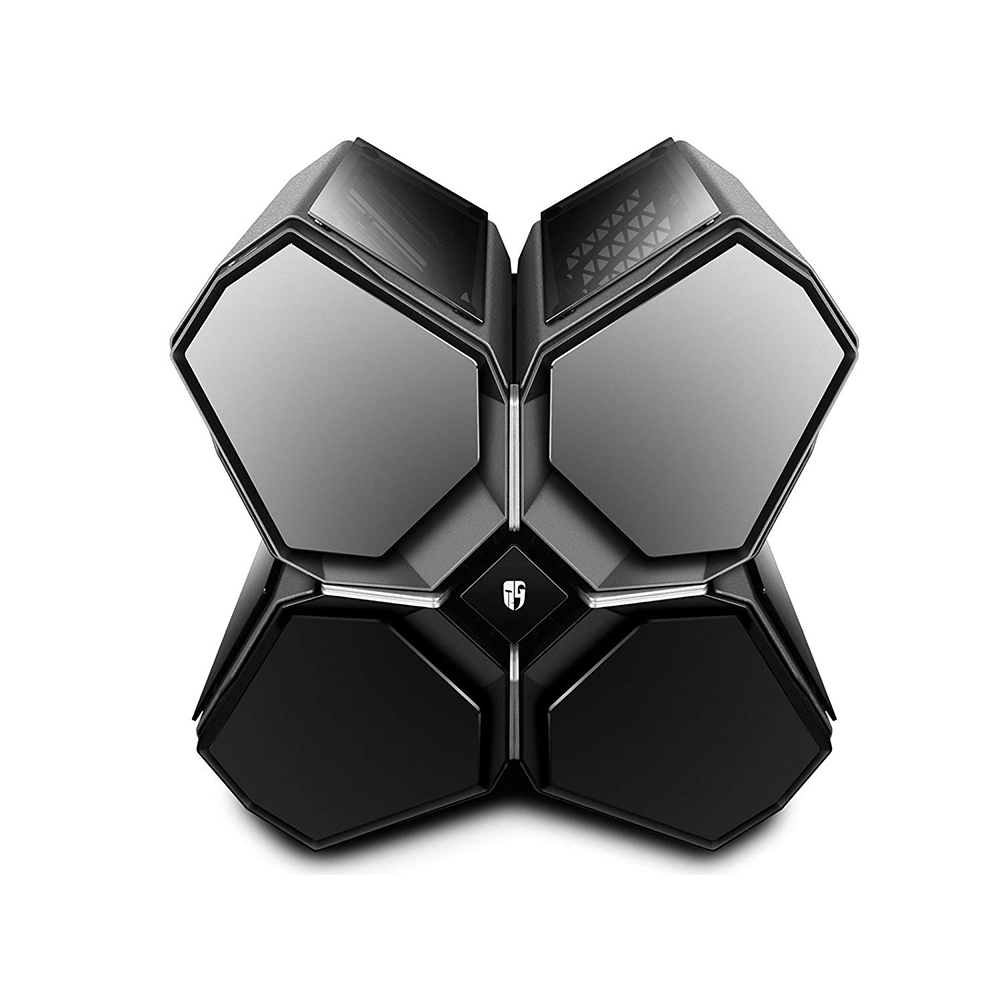

Quadstellar is the world's first smart PC case which has revolutionized conventions by allowing users to customize RGB lighting and heat dissipation system through an APP. This chassis provides a stylish, high-tech housing for ATX motherboards, multiple graphics cards, power supply and cooling components in 4 independent compartments. This eliminates inter-compartment heat dissipation interference to achieve maximum cooling efficiency.

Features:

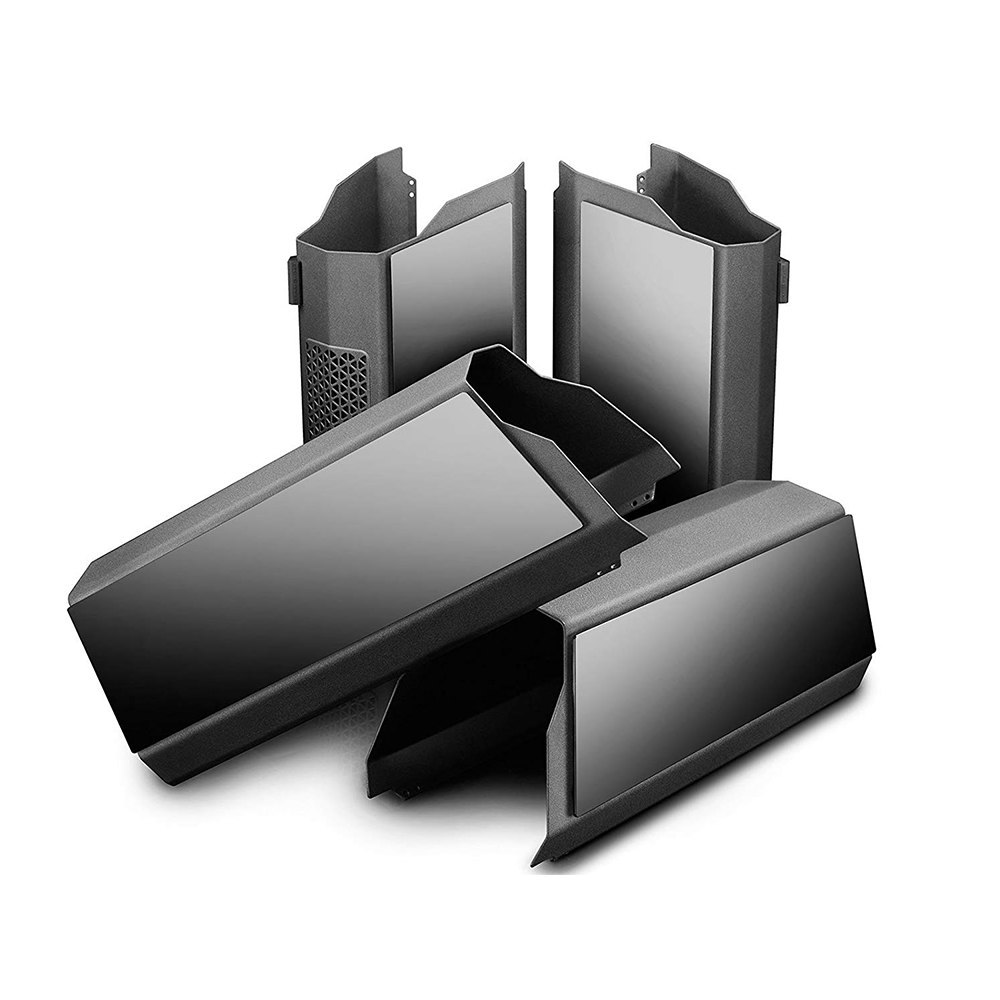

-Outfitted with 4 independent functional compartments to eliminate dissipation
-Smart mobile device APP control for dynamic management of lighting/heat dissipation/active thermal control gates
-Chassis frame crafted using precision engineered cast aluminum technology
-Reserved areas for installing high-end separable water-cooling accessories
-Pre-installed 1 extra PCI-E extension cable (PEC300)

Specifications:
-Motherboards: E-ATX(305x330mm)/ATX/M-ATX/Mini-ITX
-Materials: SPCC, Aluminum, Tempered Glass
-Product Dimensions: 538x483x493mm (LxWxH)
-Net Weight: 14.5kg
-5.25" Drive Bays: 0
-RGB lights: RGB lighting effects controlled by
Quadstellar APP

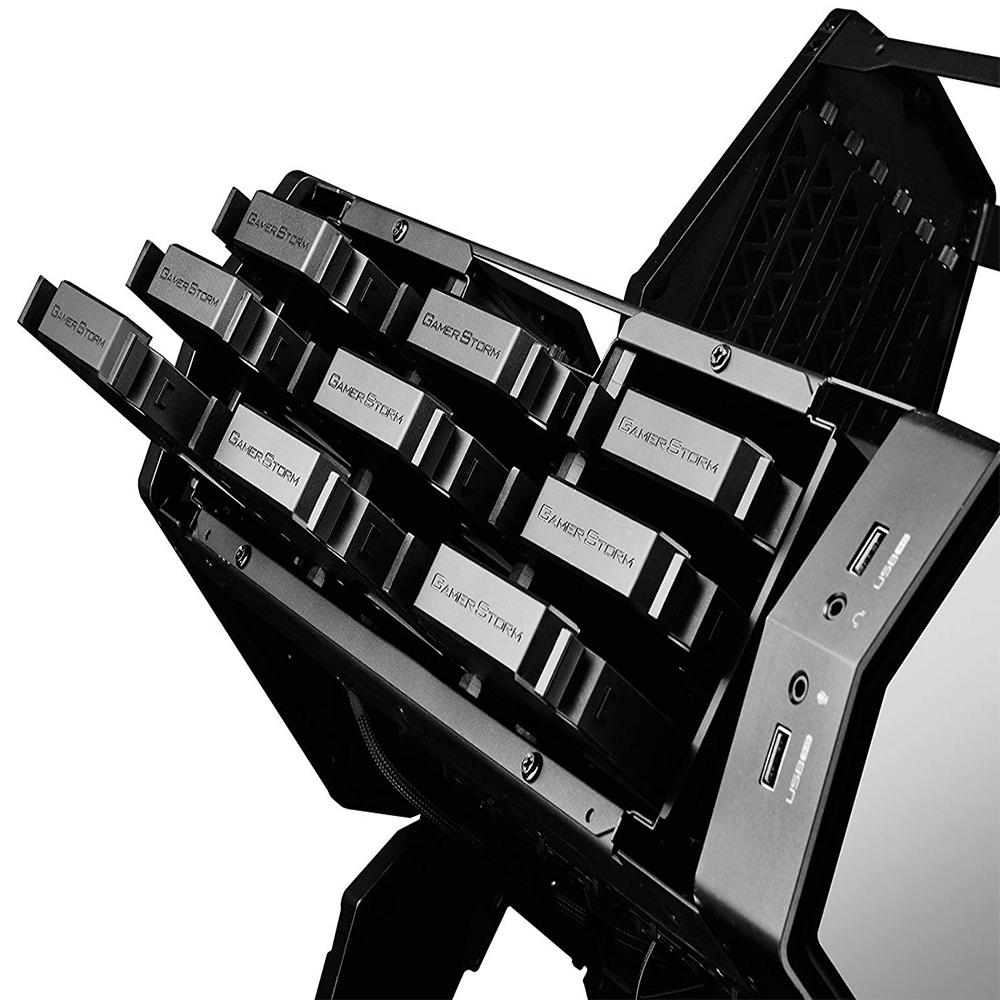

-3.5"/2.5" Drive Bays: 8
-2.5" Drive Bays: 5
-Expansion Slots: 8+6
-Power Supply Type: ATX PS2(300mm length max)
-Graphic Card Compatibility: 380mm max
-Carton Dimension:
-598x565x567mm (LxWxH)

I/O Panel:
-USB3.0 x 2
-Auido(HD) x 1
-Mic x 1

Cooling Fans:
-Pre-installed Patented TF120 Fanx x 5
-Rear: 120mm x 1
-Front: 120mmm x 4
Optional:
-Front: 120mm x 6
-Rear: 120mm x 1/80mm x 2
-Side: 120mm x 2

CPU Cooler Compatibility: 110mm height max
Liquid Cooler:
-Front: 120/240/360mm
-Bottom: 120/240(28mm thickness MAX)
