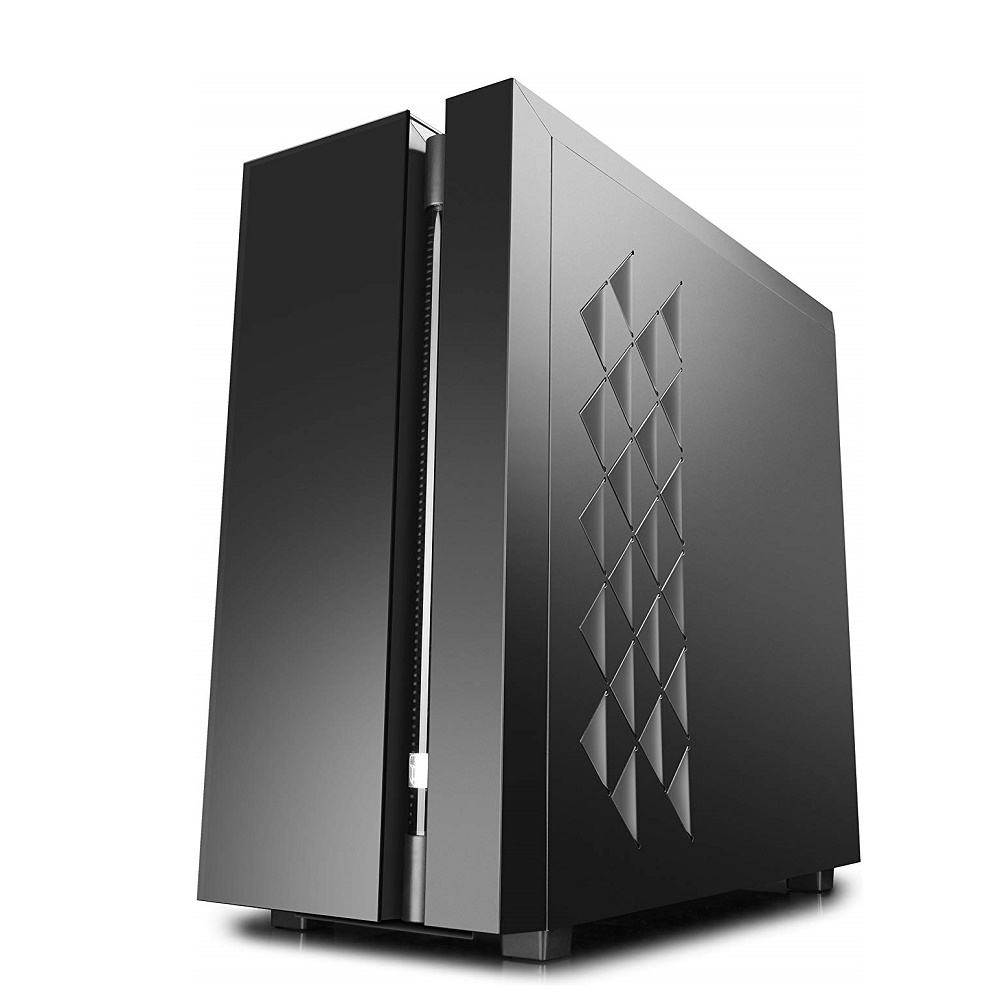

DEEPCOOL NEW ARK 90MC W/TG+RGB E-ATX CASE BLACK
New Ark 90MC is an E-ATX case with integrated liquid cooling with visible external flow systems, designed for users with a special preference for water-cooling solutions for their rigs. The tower is a perfect integration of extreme minimalist designs, glass panels, and RGB lighting to provide a unique visual aesthetics.
Features:
-Motherboard Control RGB SYNC

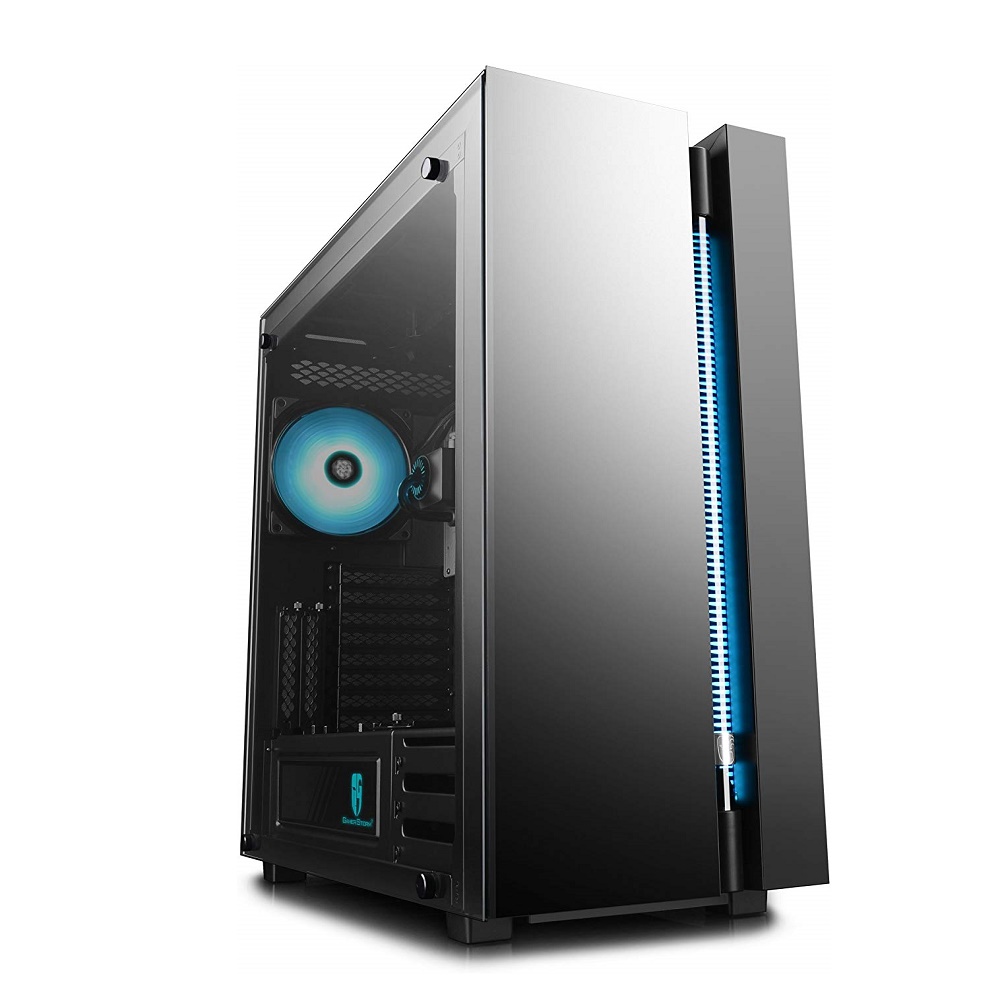

-Tempered glass sections on top, front and whole left side panel

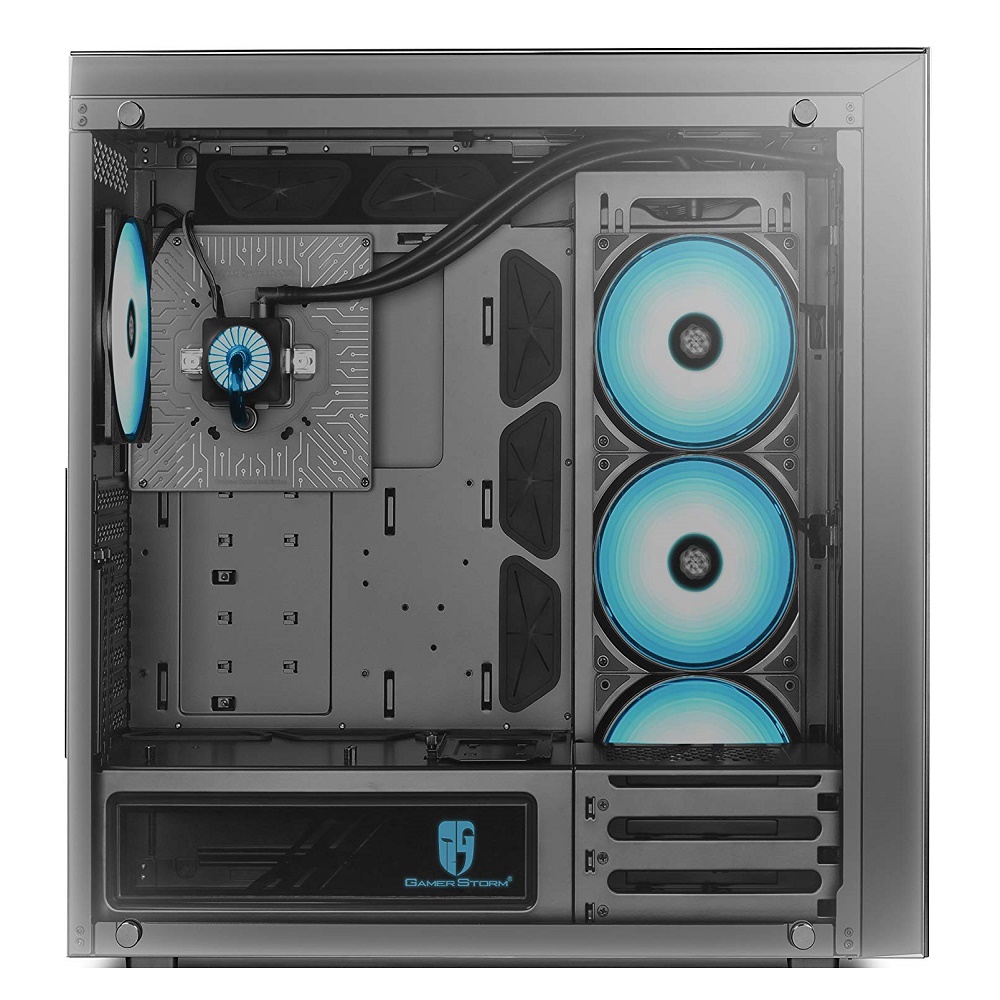

-280mm Liquid Cooler pre-installed
Specifications:
Application For:
-Intel: LGA20XX/LGA1366/LGA1200/1151/1150/1155
-AMD: AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
-Motherboard Support: E-ATX/ATX/M-ATX/Mini-ITX (MAX 305×276mm)
-Materials: SGCC+Plastic (ABS)+Tempered Glass (Panel thickness: 0.8~1.0mm)

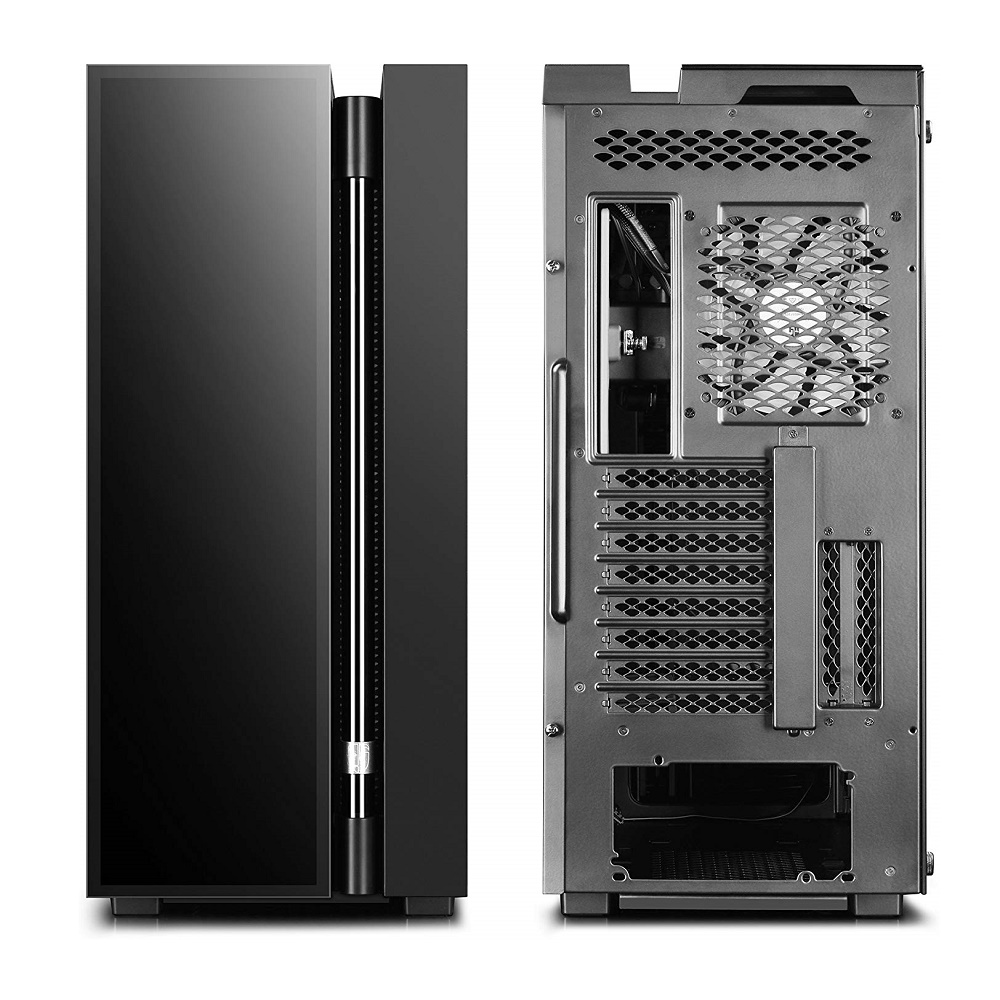

-Expansion Slots: 8+2(2 extra slots for vertical VGA card installation)
-Power Supply Support: ATX PS2 (maximum length: 200mm)
-GPU Clearance: 310mm(Horizontal mounting)/400mm(Vertical mounting)
Drive Bays:
-5.25": 0
-3.5": 3
-2.5": 3+3
I/O Panel:
-USB3.0 x 2
-Audio(HD) x 1
-Mic x 1
-Manual Controller for RGB x 1
Cooling Fans Support:
-Pre-Installed:
-- 1×140mm RGB fan at rear
--3x140mm RGB fan at side panel
-Optional:
--Top: 3×120mm fan
--Front: 3x120mm fan
CPU Cooler Compatibility: 186mm height limit
-Radiator in Front: 120/240/360mm
-Radiator on Top: 120/140/360mm
-Radiator at Rear: 120/140mm
Fan Specs:
-Dimensions: 140*140*25mm RGB Fan x 4
-Speed: 500±200-1800±10%RPM (4Pin)
-Air Flow: 90.14 CFM (MAX) Each 140mm Fan
-Noise Level: 17.6~35.3dB(A)
-Bearing Type: Hydro Bearing
-Rated Voltage: 12VDC
-Rated Current: 0.44±10%A(MAX) Each Fan (Including RGB lights)
-Power Consumption: 5.28W Each
Pump Specs:
-Connector: 3pin
-Operating Voltage: 6~13.8VDC
-Rated Voltage: 12VDC
-Speed: 2300±10%RPM
-Current: 0.2A(MAX)
-Power Consumption: 2.4W
**Note:
-For AMD motherboards, rotate cooler for the best position when installing. Avoid overstretching the hoses.
Package Specs:
-Weight: 14.34kg
-Dimensions(L*W*H): 53*23.2*54.55cm
