Specification

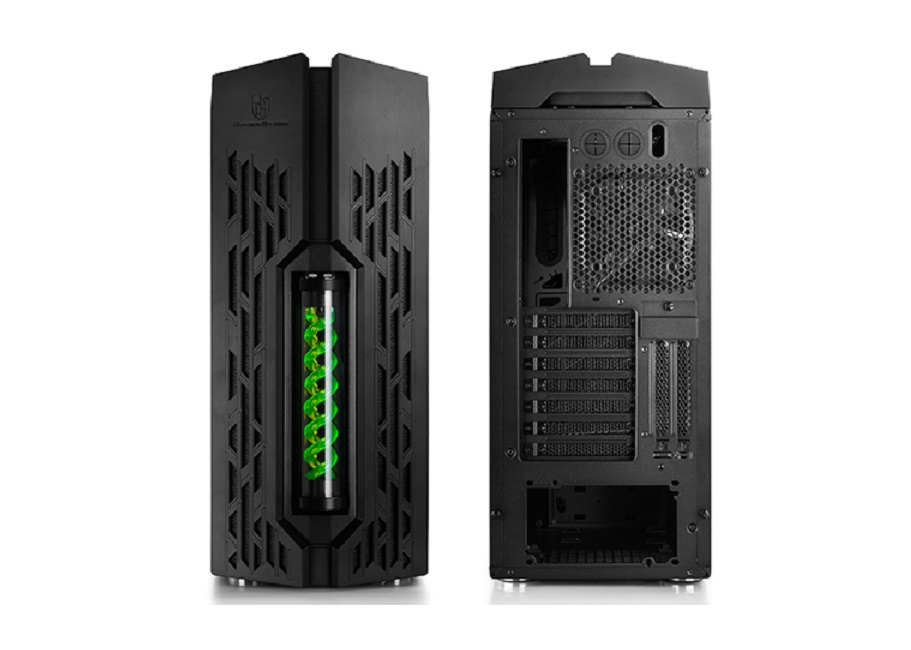

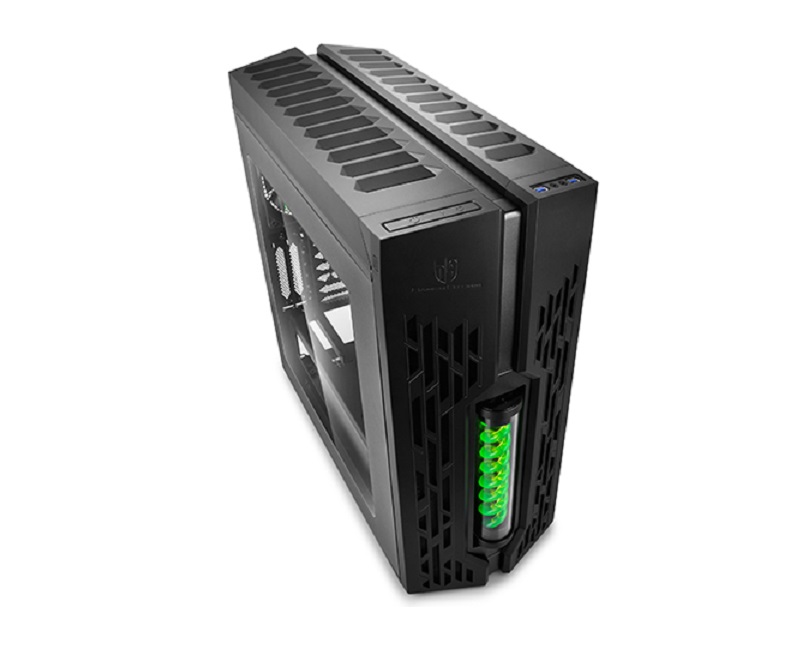

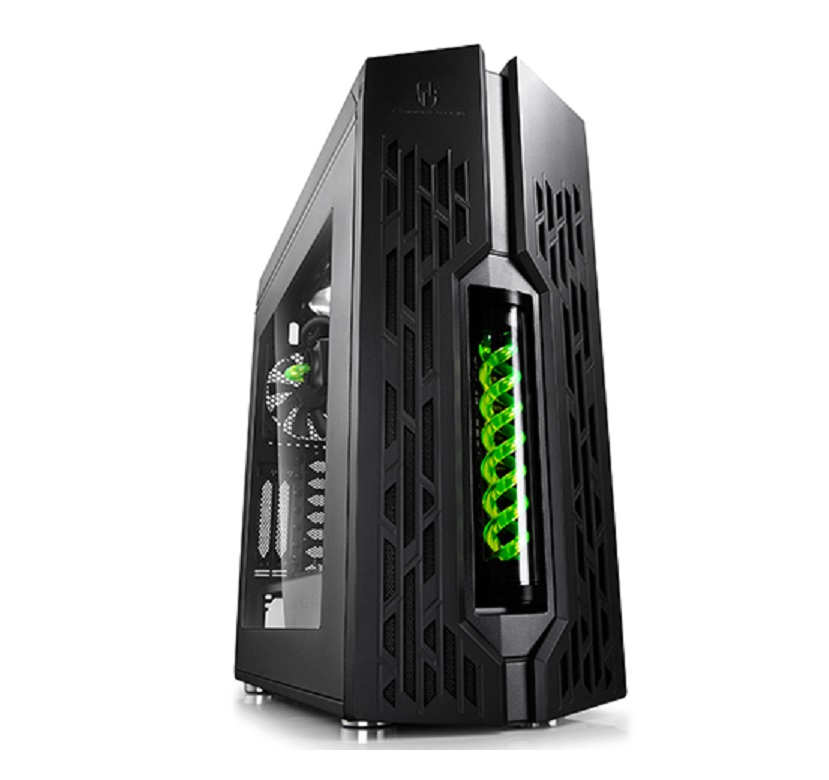

DEEPCOOL GENOME ATX Chassis
Features:

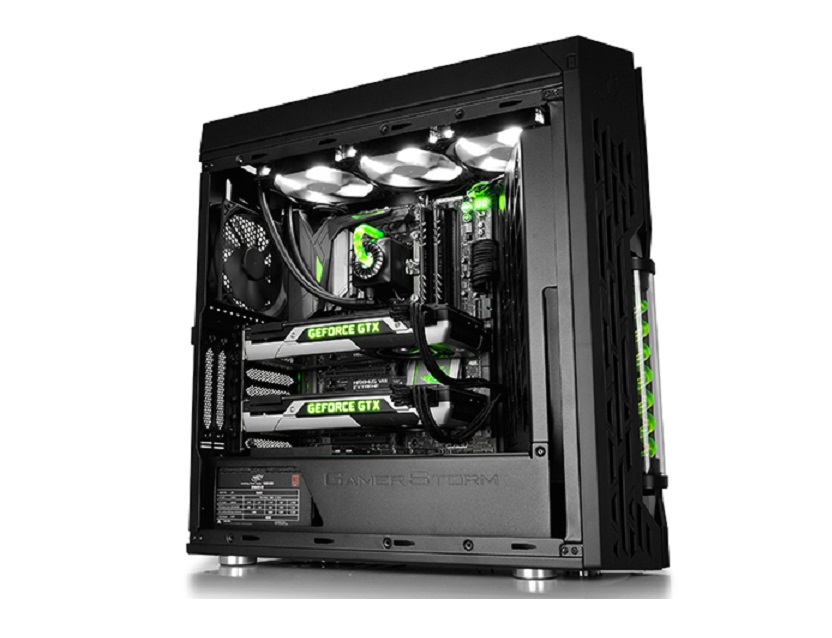

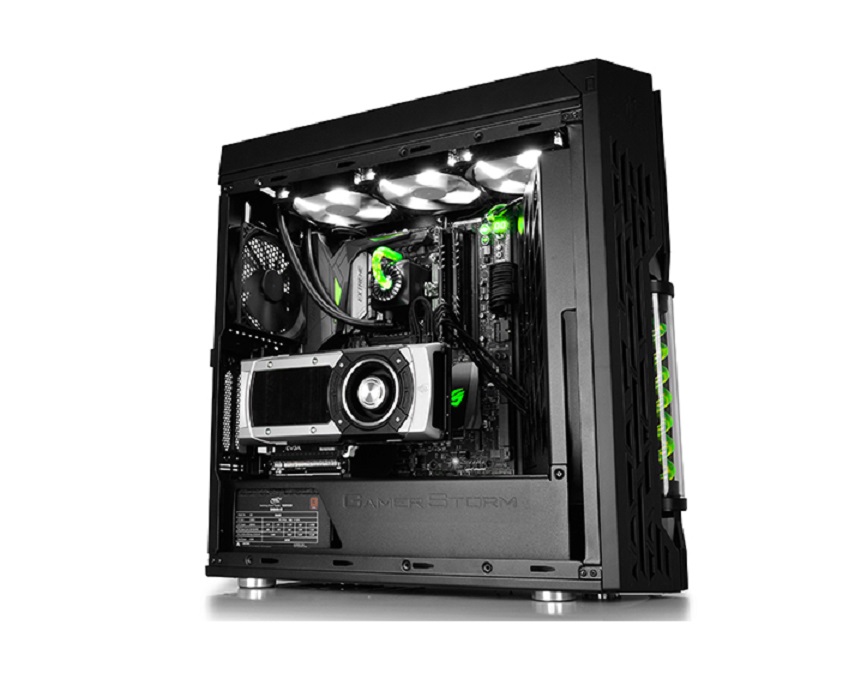

Extreme liquid cooling solution that incorporates the ATX PC case and an integrated liquid cooling system
Pre-installed 360mm radiator, 3x PWM LED fans, reservoir, and double helix
Innovative structure with compartmentalized functional areas for expansion support
Enhanced cable management for system neatness and better cooling
LED light (white) for liquid cooling fans, water pump, and front glass tube
Extra space reserved for DIY water cooling system
Unique top panel shape for enhanced cooling
Extra slots for vertical GPU installation (PCI-E extension cable not included)
Wider cutout to facilitate CPU cooler installation
2x USB3.0 ports
PSU rubber buffer and dust filter
Application For
Intel Socket 150W
LGA2011-v3/2011/1366/1156/1155/1151/1150
High End Desktop i7
Core i7 Extreme/i7/5/3
Pentium G
Celeron G
AMD Socket 220W
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Ryzen
APU A10/8/6/4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class
Technical Spec:
Motherboards: (MAX:305×275MM)ATX-L/ATX/MICRO ATX/MINI-ITX
Materials SGCC+PLASTIC: (ABS)(Panel thickness: 0.8mm)
Product Dimension: (LxWxH) 506×210×505 MM
Net Weight: 9.77 kg
Gross Weight: 12.09 kg
3.5" Drive Bays: 2
2.5" Drive Bays: 4
I/O Panel: 2×USB3.0/Audio(HD)×1/Mic×1
Expansion Slots: 7
(plus 2 extra slots for vertical VGA card installation)
Cooling Fans Pre-installed: Rear: 1×120mm fan; Optional: Front: 2×120mm, Top: 3×120mm/2×140mm
Power Supply Type:
ATX PS2
VGA Compatibility: 330mm
Carton Dimension: 575×285×600 mm
Color of LED: Lights White
