DEEPCOOL - DC-EARLKASE-RGB

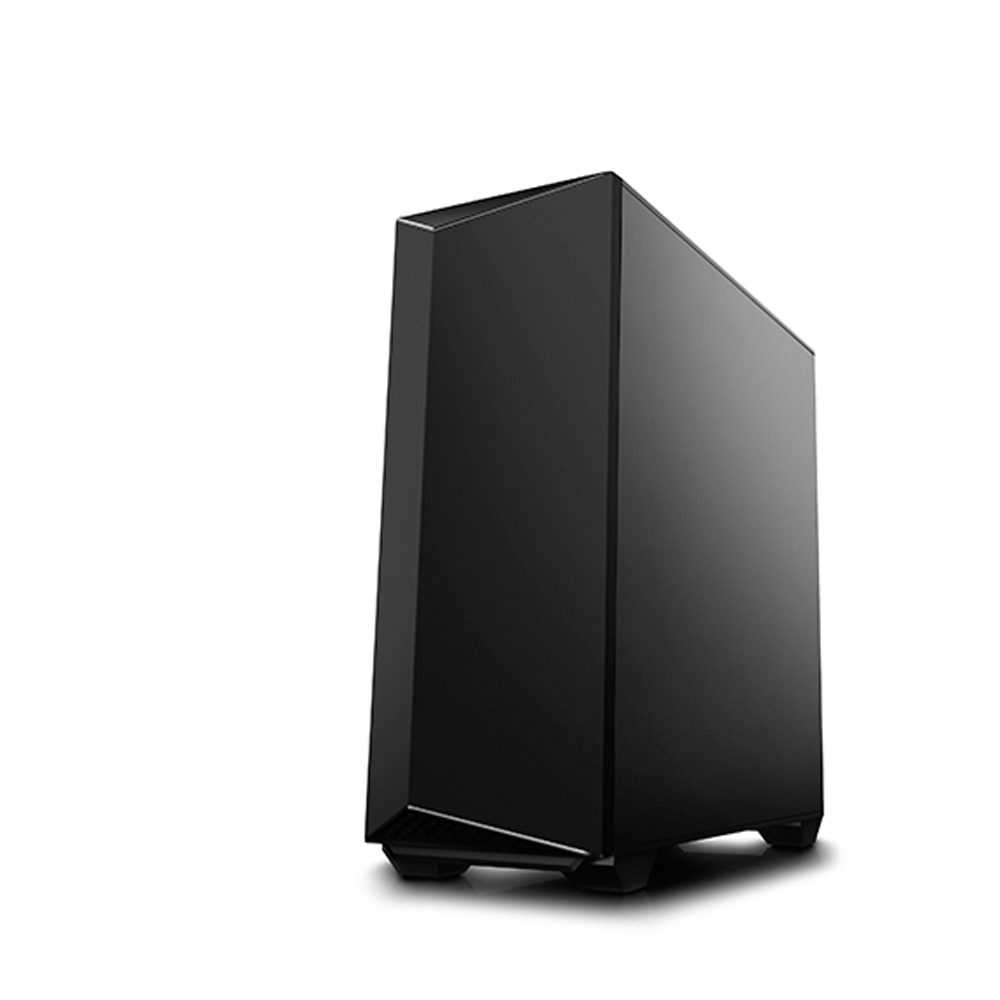

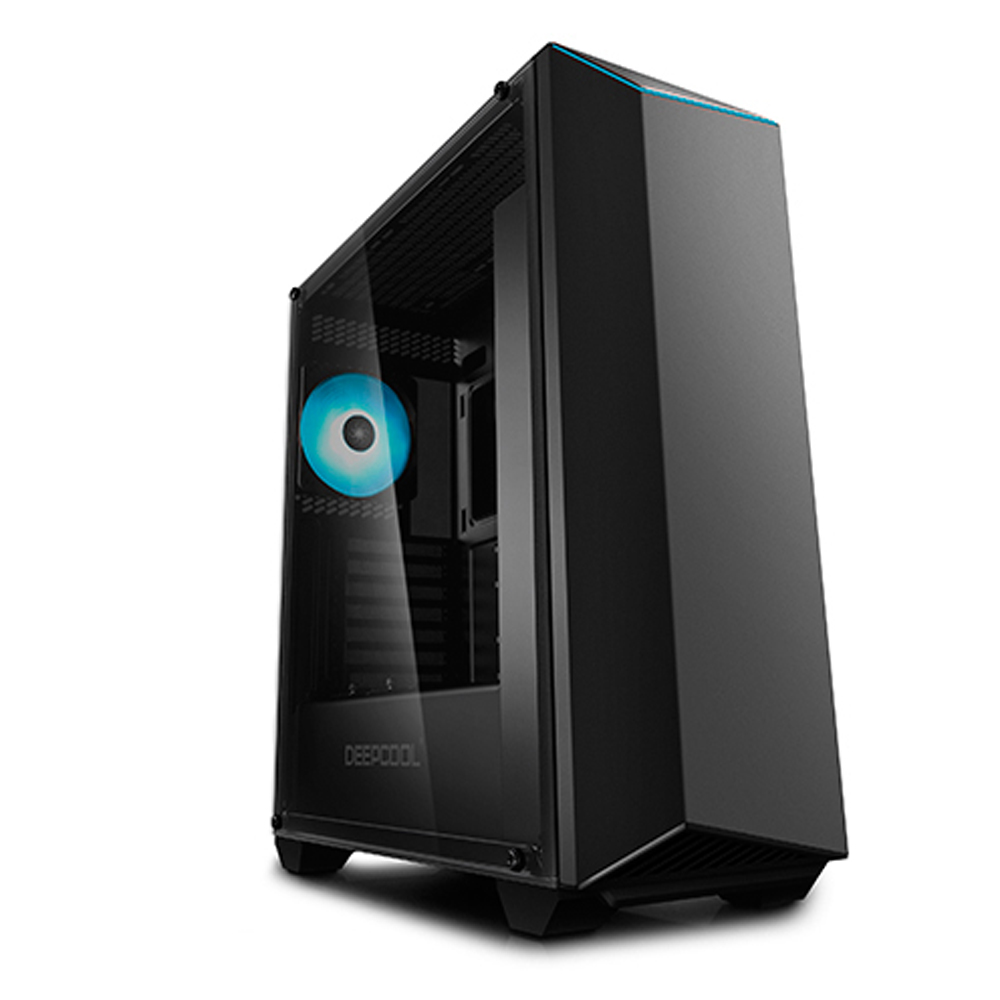

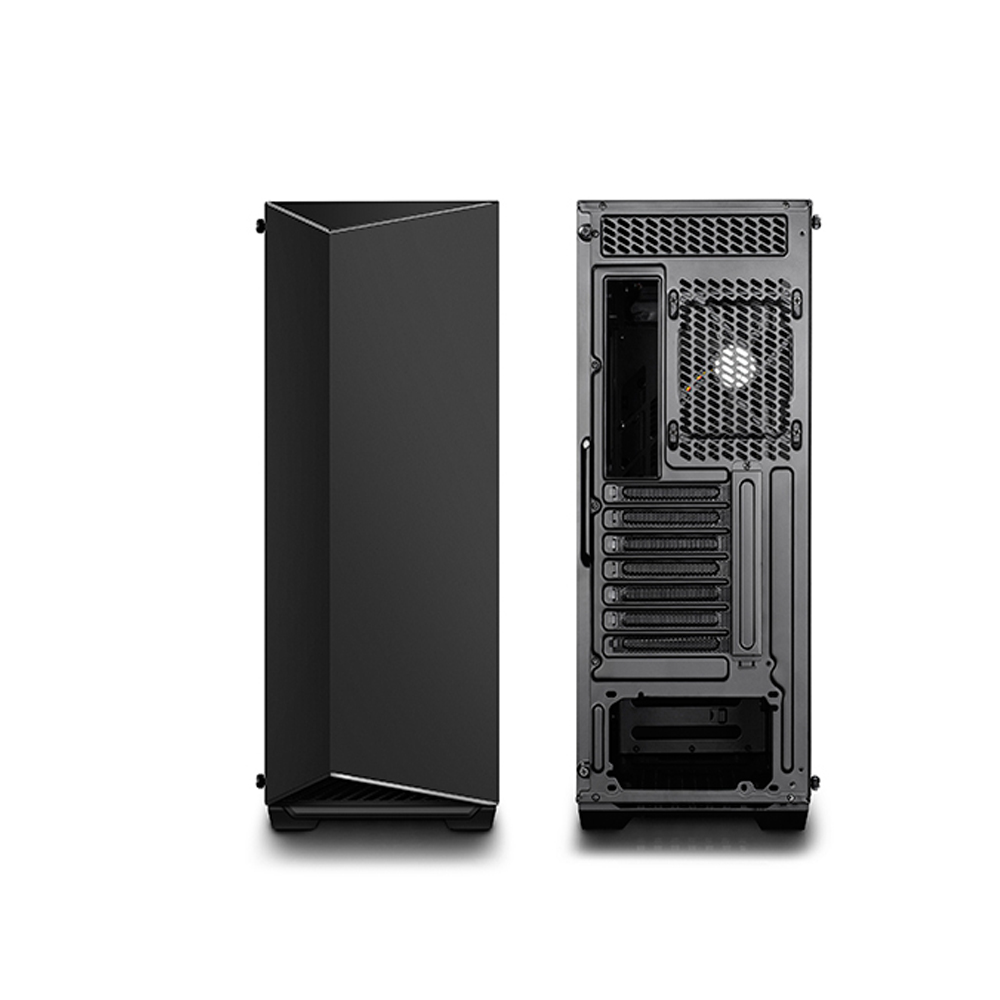

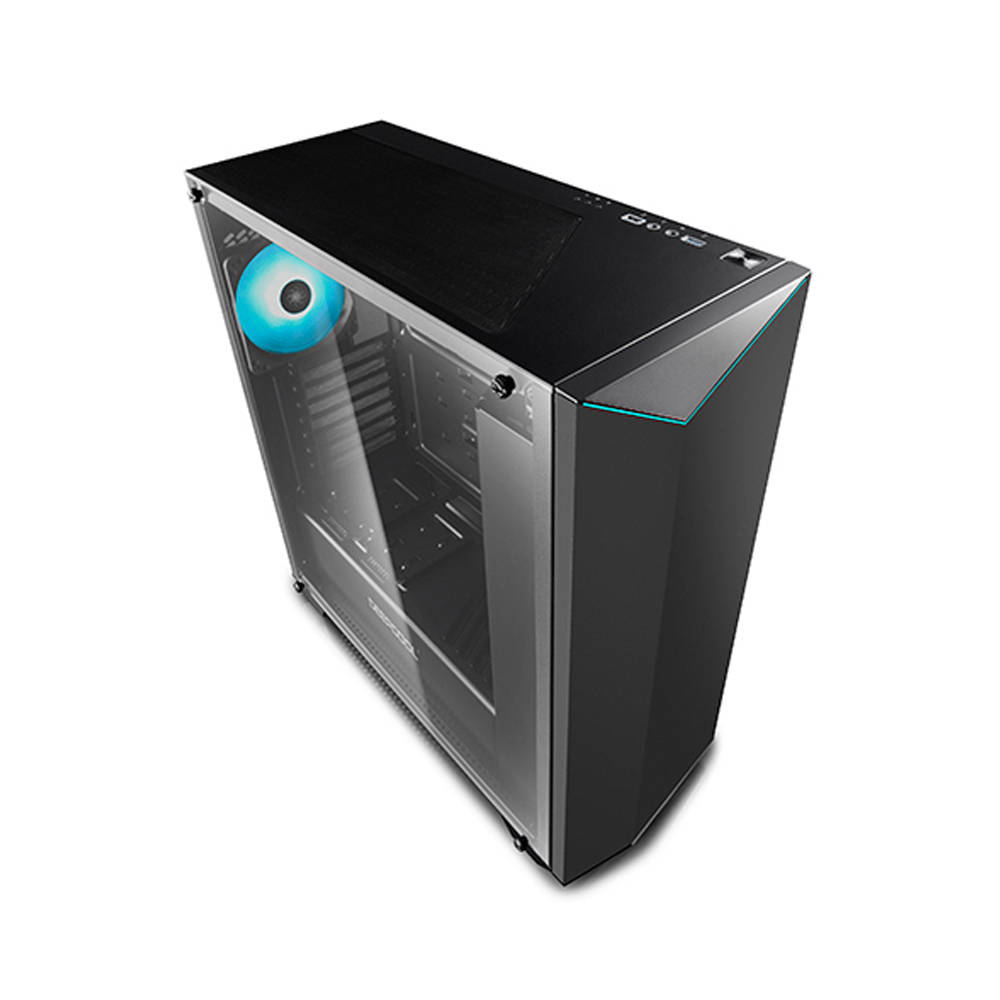

DEEPCOOL EARLKASE RGB ATX CHASSIS

Description

EARLKASE RGB V2 includes an expandable RGB lighting, system with RGB V-Shaped strip at front, 120mm RGB Fan at rear/2 extra RGB headers. 1.0mm-thick all-metal front panel has a powered coating finish, offering a unique scratch-resistant.


Specification

DEEPCOOL EARLKASE RGB V2 CASE

Features:
With RGB Lighting System: Manual controller + RGB V Strip at front + RF120 RGB Fan at rear + 2 extra ports for expansion; also supports Motherboard 4Pin RGB_HEADER SYNC Control
1.0mm thickness all-metal front panel
Full-size tempered glass side panel
Magnetic dustproof net at top, easy for cleaning
Supports installation of 120/140/240mm radiator liquid cooling system at Front
Lighted I/O Ports, can be found easily even in darkness
Movable HDD Cage, extra space available for longer PSU
Specially designed air-taking slot-holes to lead airflow from front to your Graphic Card
One 120mm RGB fan (RF120) and one 120mm black fan pre-installed at rear and front
Supports the installation of split-type Liquid Cooling System, mounting holes preset for the installation of water pump or tank
Remarks: The RGB lighting system is originally controlled by the Manual Controller, users can use the extra cable to switch to Motherboard 4Pin RGB_HEADER control as another option. These two options cannot be used at the same time if you want to keep all RGB devices' color changed synchronously!

Specifications:
Motherboards: ATX/Micro ATX/Mini-ITX
Materials: SPCC+PLASTIC (ABS)(Panel thickness: 0.7mm)+ Tempered Glass
Product Dimensions (L×W×H): (L)500 x (W)203.5 x (H)510.5mm
Net Weight: 8.1 kg
Gross Weight: 9.38 kg
RGB Lighting System: 1*120mm RGB Fan+ Front Panel RGB Strip + Manual Controller; 2 extra ports for RGB devices expansion; Extra cable ready for MB 4Pin RGB_HEADER Control
3.5"/2.5''Drive Bays: 2
2.5" Drive Bays: 4
I/O Panel: 1×USB3.0/1×USB2.0/Audio(HD)×1/Mic×1
Expansion Slots: 7 (slot covers fixed by screw for reuse)

Cooling Fans:
Pre-installed: Rear: 1×120mm RGB fan
Front: 1×120mm normal black fan
Optional: Front: 3×120mm or 2×140mm; Top: 2×120mm or 2×140mm

Power Supply Type: ATX PS2
CPU Cooler Compatibility: 165mm height max
Liquid Cooler Compatibility: 120/240/140/280mm radiatorat Top,120mm radiator at Rear, 120/140/240mm radiator at Front
Graphic Card Compatibility: 340mm Max
Carton Dimension: 560 x 266 x 560mm
