Specification

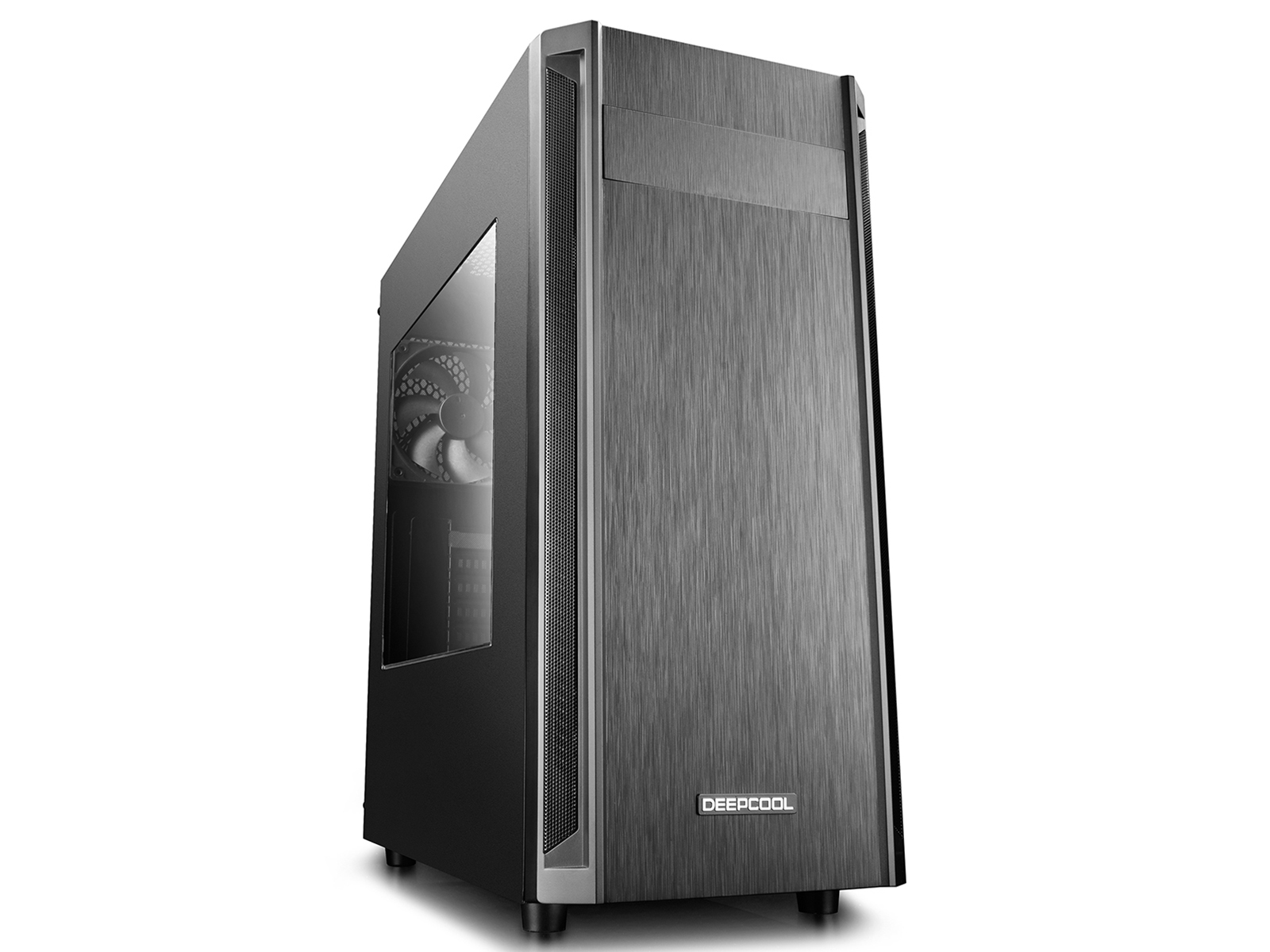

DEEPCOOL D-SHIELD ATX Chassis
Features:
A compact ATX computer case
Supports installation of 120/140/240/280/360mm radiator liquid cooling system at front (280/360mm radiator without CD-ROM installed)
Supports installation of 120/140/240/280mm radiator liquid cooling system at top (240/280mm without CD-ROM)
Supports installation of 120mm radiator liquid cooling system at rear
Supports 370mm (MAX) long Graphic Card installation
Magnetic dust filter at top, easy for cleaning
User-friendly internal design for easy installation and cable management
Specifications:
Motherboards: ATX/ Micro ATX/ Mini-ITX
Materials: ABS+SPCC (Panel thickness: 0.6mm)
Case Type: Middle Tower
Product Dimension: 438(L) x 210(W) x 477(H) mm
Carton Dimension: 532(L) x 285(W) x 520(H) mm
Net Weight: 5kg
5.25" Drive Bays: 1 3.5" Drive Bays: 2 2.5" Drive Bays: 2+2
I/O Panel: 1xUSB3.0/ 2xUSB2.0/ 1xAudio(HD)/1xMic
Expansion slots: 7
Cooling Fans:
Pre-installed: 1x120mm (Rear)
Optional: 3x120mm (Front) or 3x140mm (Without CD-ROM installed); 2x120mm or 2x140mm (With CD-ROM installed); 2x120/140mm (Top)
Liquid Cooler Support:
Front: 120/140/240/280/360mm (280/360mm without CD-ROM)
Top: 120/140/240/280mm (240/280mm without CD-ROM)
Rear: 120mm
CPU Cooler Height Limit: 168mm
VGA Length Limit: 370mm
Power Supply Type: ATX PS2 (Lenth less than 170mm)
Cable Management: 25mm
