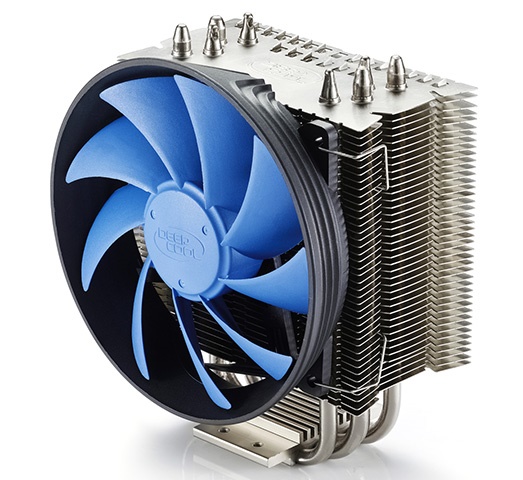

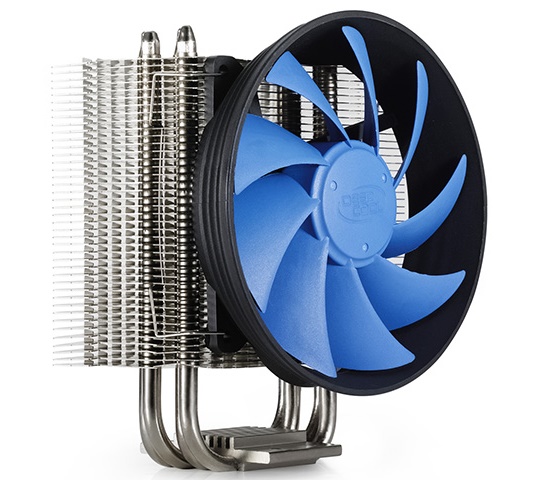

DEEPCOOL GAMMAXX S40 CPU Cooler

Features:
AMD AM4 Ready (NOTE: Refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 for the manuals)
Equipped with multiple clips to support Intel 2011/1366/1156/1155/1151/1150/775 and AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2
120x120x25mm pWM-capable fan offers perfectly balances powerful airflow and reduced noise
Double Airflow Channel (DAC) technology brings more cool air for cooling surrounding components such as the MOS

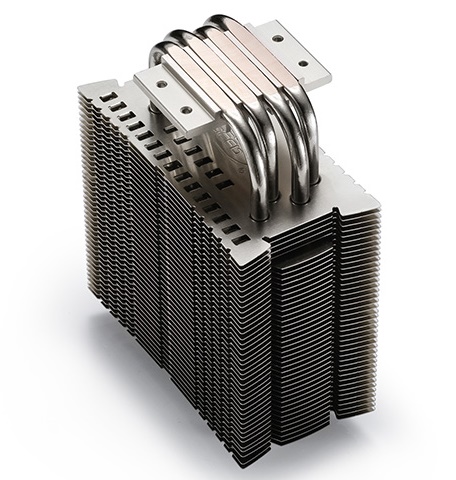

4 pieces of 6x6mm heatpipes and Core Touch Technology achieves perfect contact with the CPU surface

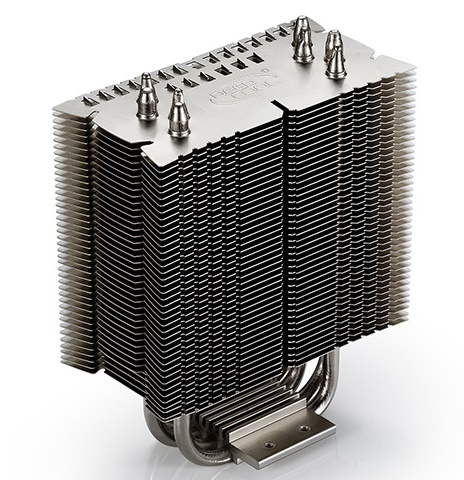

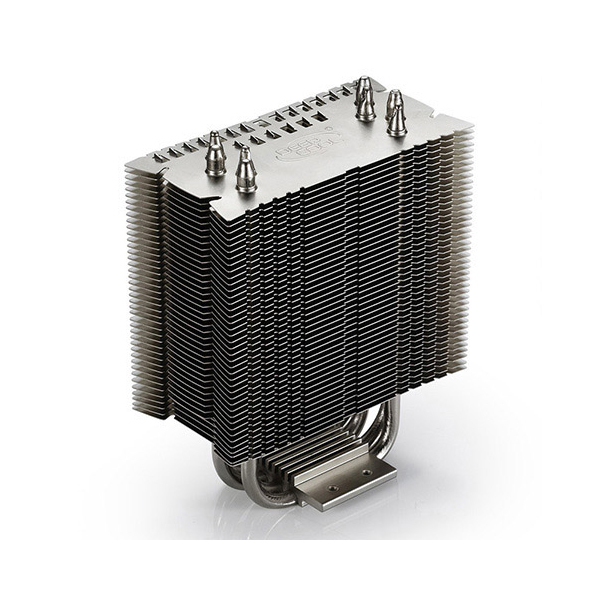

Nickel-plated heatsink set to enhanced gaming aesthetics
Vibration-eliminating designs to maximize operation noise absorption

Application For:
Intel Socket 130W:
LGA2011/LGA1366/LGA1156/LGA1155/LGA1150/LGA775
High End Desktop i9/7
Core i7 Extreme/i7/5/3
Core 2 Extreme/Quad/Duo
Pentium/Pentium G
Celeron/Celeron G

AMD Socket 125W:
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
(NOTE: Manuals for AM4, please refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2)
Ryzen
APU A12/10/8/6/4
FX 8/6/4-Core
Phenom II X6/4/3/2
Athlon II X4/X3/X2
Athlon X4

Specification:
Overall Dimension: 120X81.3X143mm
Fan Dimension: 120X120X25mm
Net Weight: 610g
Bearing Type: Hydro Bearing
Rated Voltage: 12VDC
Operating Voltage: 10.8~13.2VDC
Started Voltage: 7VDC
Rated Current: 0.13±10%A(MAX)
Power Input: 1.56W
Fan Speed: 900±150-1600±10%RPM
Max. Air Flow: 54.25CFM
Noise: 17.8~26.1dB(A)
