Specification

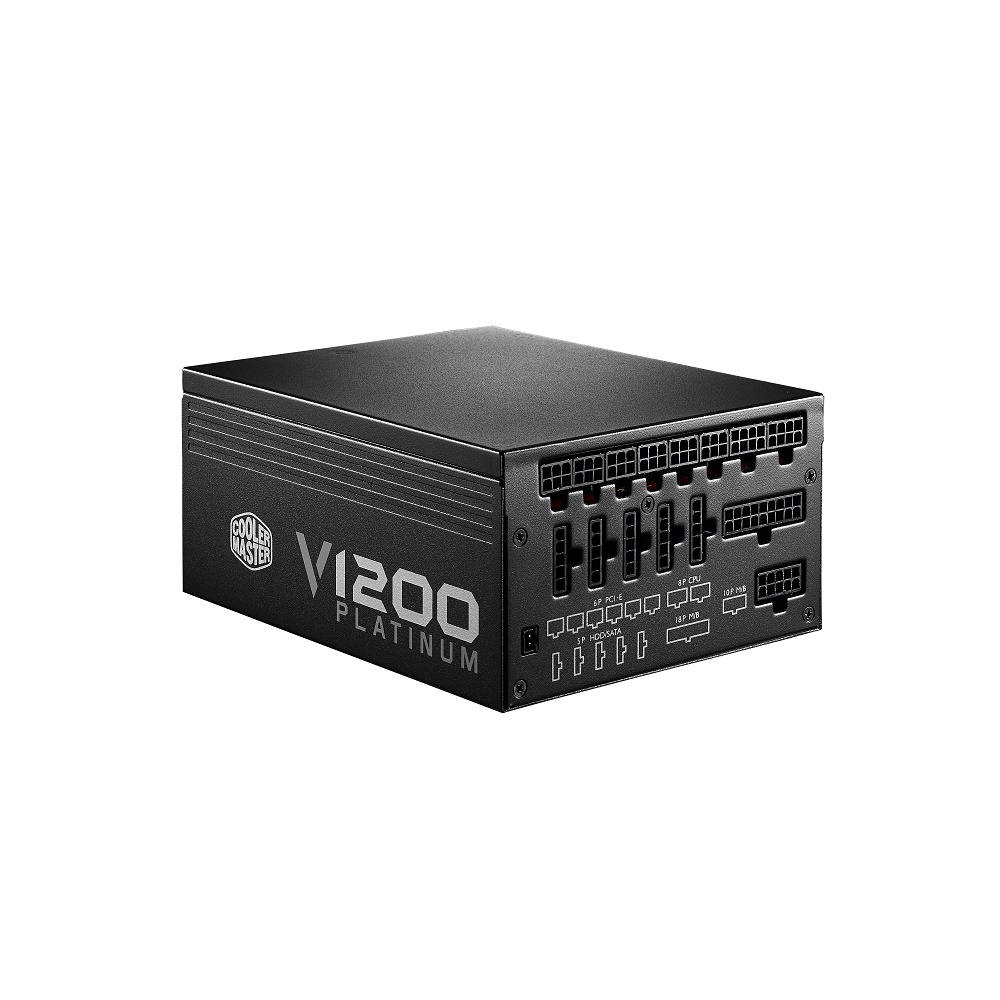

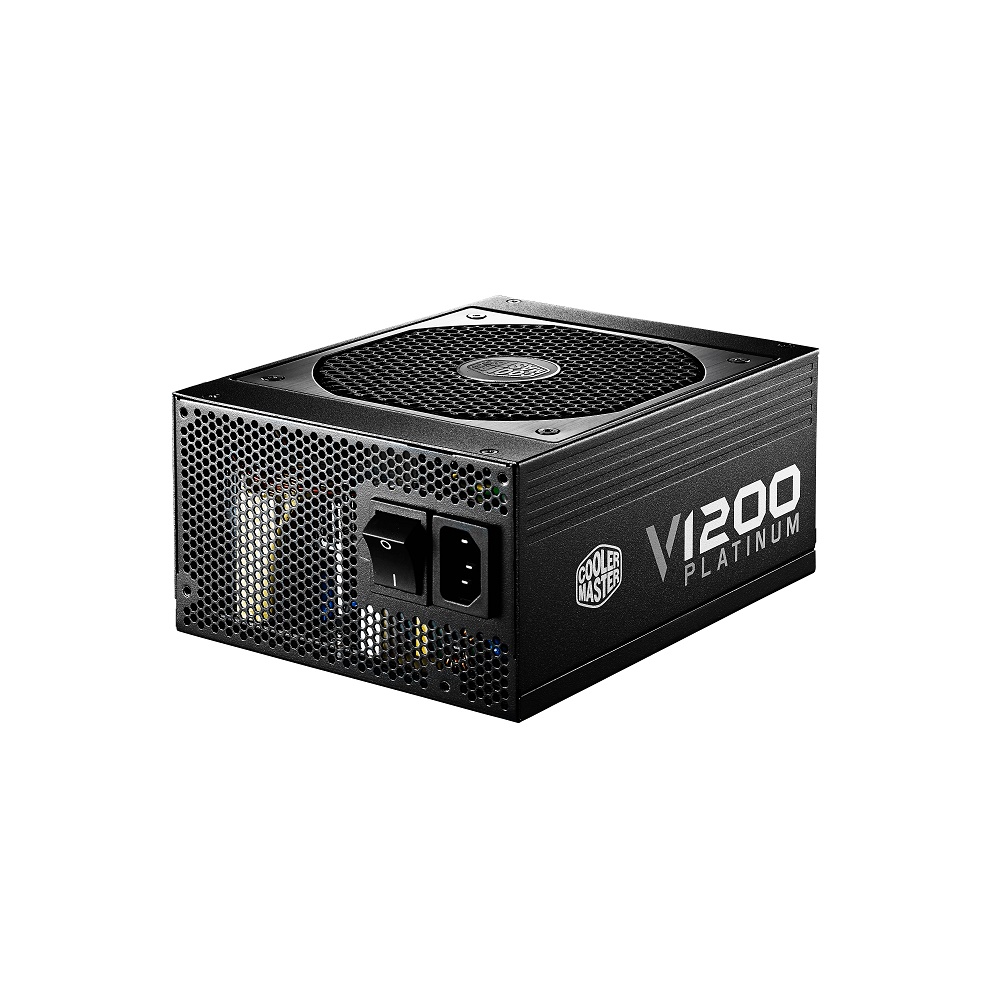

COOLER MASTER V1200W 80+ PLATINUM FULLY MODULAR ATX PSU BLACK
The V1200W 80+ Platinum ATX offers a full modular design that provides more flexible neccessity for the user's needs. This PSU comes with a 135mm FDB silent fan generates more airflow and less noise. Japanese capacitors offers more stable quality and longer lifespan.
Features:
-Fully modular cable design for easy installation and cable management
-100% high quality Japanese electrolytic and solid capacitors esnure performance and reliability

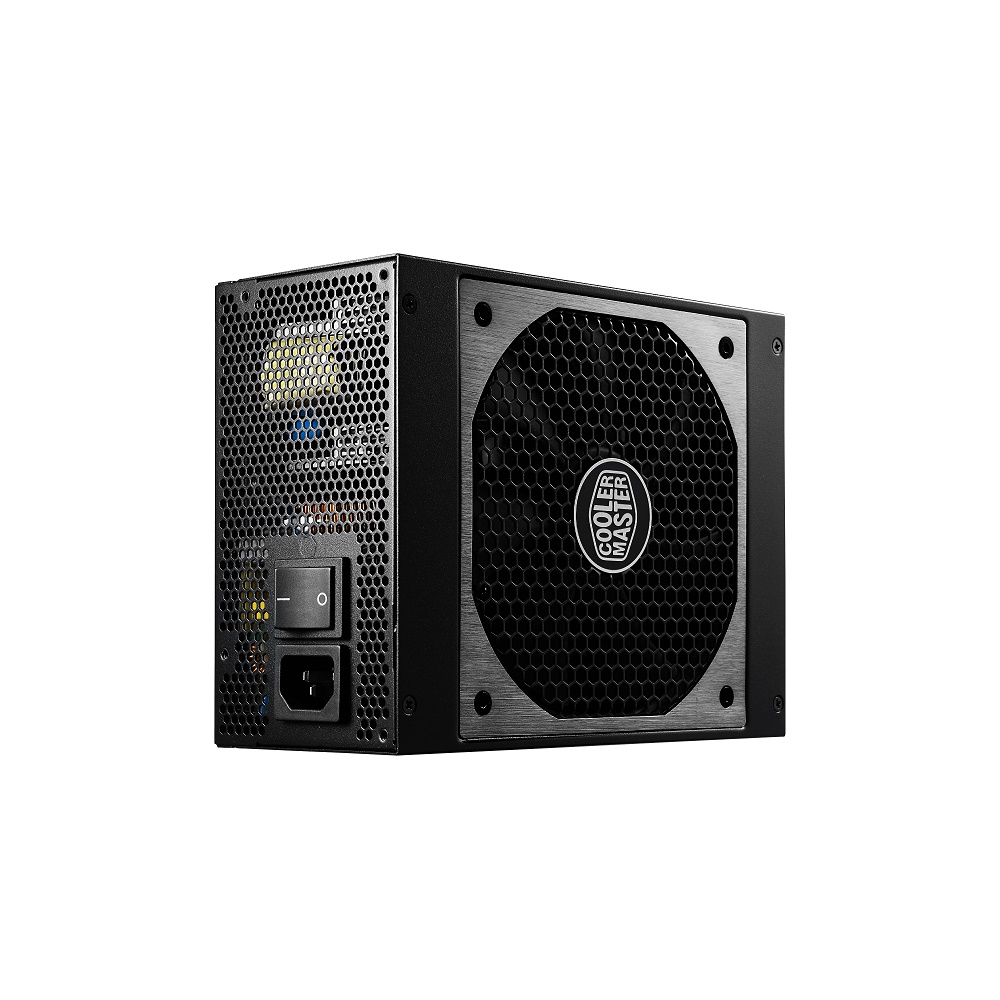

-135mm FDB silent fan default as hybrid mode, equipped with hybrid fan controller, easy switch mode
-Zero dBA fanless mode silent operation
-80+ Platinum certified: up to 93% efficiency @50% load
-Powerful single +12V rail, capable of delivering up to 100A
-Excellent output voltage stability ensures total voltage regulation under 1%
-12 PCI-E 6+2pin connectors for 4way SLI & high-end solution builds
Specifications
-Type: Intel Form Factor ATX 12V V2.31
-Dimensions: 150*190*86mm
-Input Voltage: 100-240Vac
-Input Current: 15-7.5A
-Input Frequency Range: 60-50Hz
-PFC: Active PFC(>0.9)
-Power Good Signal: 100-500ms
-Hold Up time: >17ms
-Efficiency: 93% Typical
-MTBF: >100,000 hours
-Protection: OVP / UVP / OPP / OTP / OCP / SCP
-Output Capacity: 1200W
-Operation Temperature: 0-40?
-Regulatory: CE/TUV/TUV-SUDNRTL/FCC/EAC/CCC/BSMI/RCM
-Fan: Silent FDB 135mm

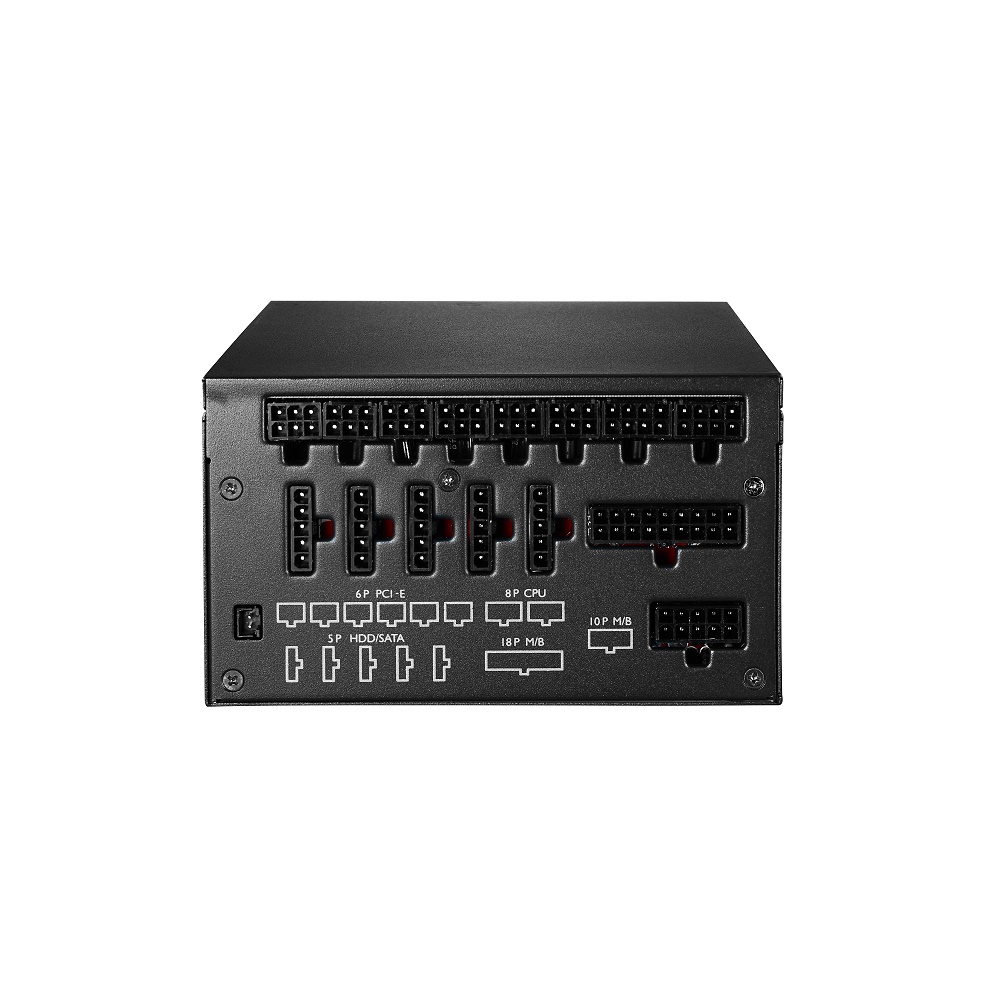

Connectors:
-M/B 20+4pin x 1
-CPU 4+4pin x 2
-PCI-e 6+2pin x 12
-SATA x 12
-4pin peripheral x 9
-4pin floppy x 1
