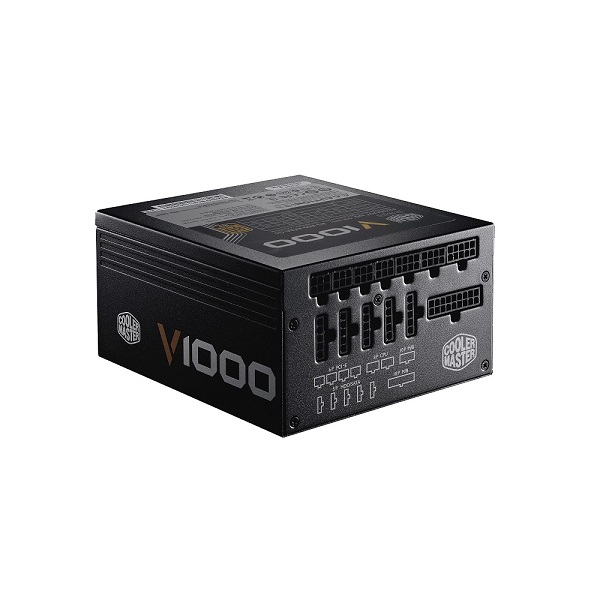

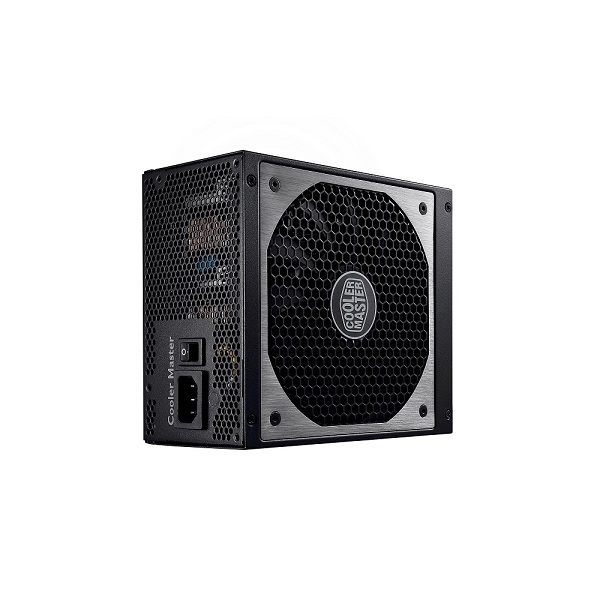

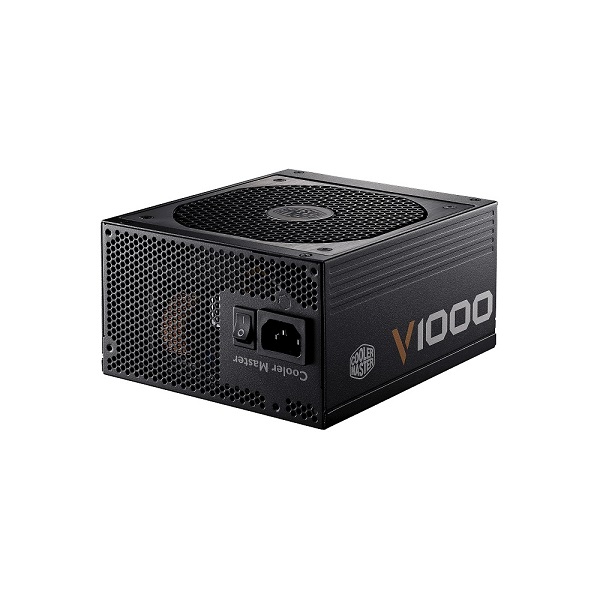

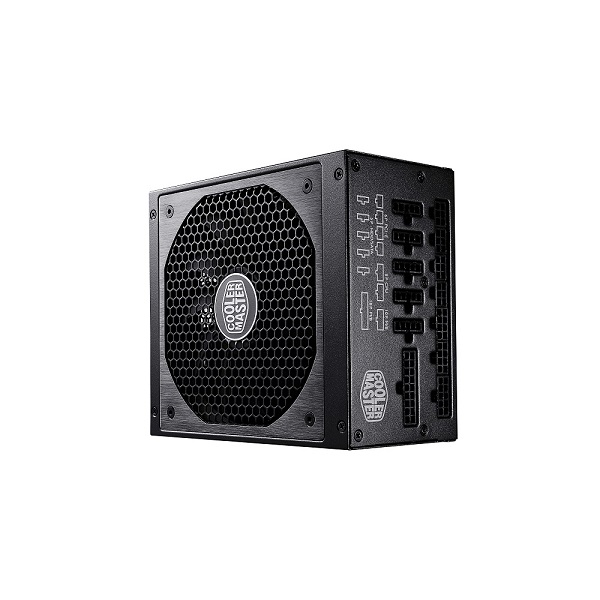

COOLER MASTER V1000W 80+ GOLD FULLY MODULAR ATX PSU BLACK
V Series are fully modular PSU with a compact and quiet engineering, maintain whisper-quiet operation through the addition of the high performance Silencio FP fan, 3D circuit design delivers more power in a smaller package.
Features:
-Fully modular cable design incorprates a single 1000W +12V output delivers up to 83A
-80+ Gold certified: up to 93% efficiency @50% load
-Silent 135mm FDB fan for lower noise and longer lifespan
-Eight PCI-E 6+2 pin connectors, support high end GPUs
-100% high quality Japanese capacitor ensures performance and reliability
Specifications:
-Type: Intel Form Factor ATX 12V V2.31
-Input Voltage: 90-264Vac (Auto Range)
-Input Current: 12-6A
-Input Frequency Range: 60-50Hz
-PFC: Active PFC (>0.9)
-Power Good Signal: 100-500ms
-Hold Up Time: >17ms
-Efficiency: 90% Typical
-MTBF: >100,000 hours
-Protection: OVP/UVP/OPP/OTP/SCP
-Output Capacity: 1000W
-Operation Temperature: 0-40 C
-Quality Certificates: CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC
-Fan: Silent FDB 135mm
Connectors:
-M/B 20+4 pin x 1
-CPU 4+4 pin x 2
-PCI-e 6+2 pin x 8
-Sata x 9
-4 pin peripheral x 4
-4 pin floppy x 1
