Specification
WEB LINK: https://www.sonicinformed.co.za/catalogue/catalogue-automation-intelligent-systems-industrial-computer-peripherals-power-supplies-cooler-master-desktop-psu/mpx-8505-afag-beu

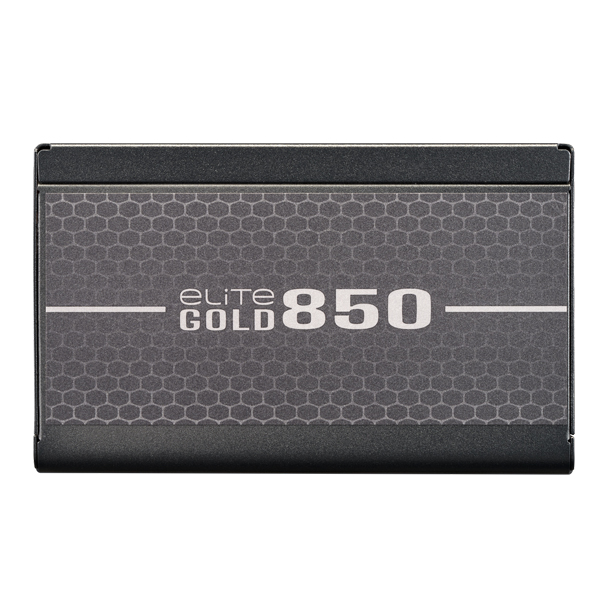

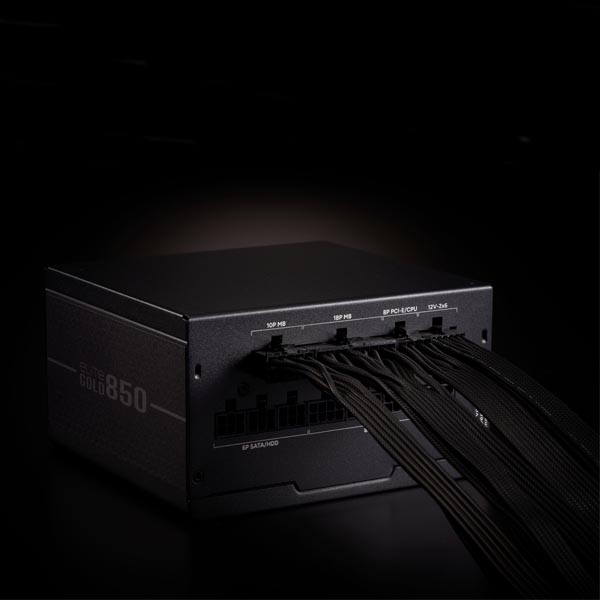

Cooler Master Elite Gold 850W ATX 12V V3.1 80Plus Gold Certified Fully Modular Power Supply with EPS Connector, Supports PCIe Gen 5.1 Standards, Active PFC And 120mm Silent Fan – Black Colour
Features:

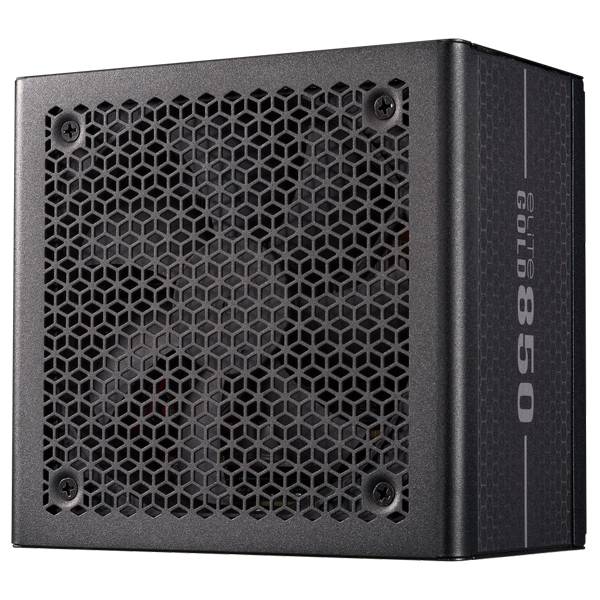

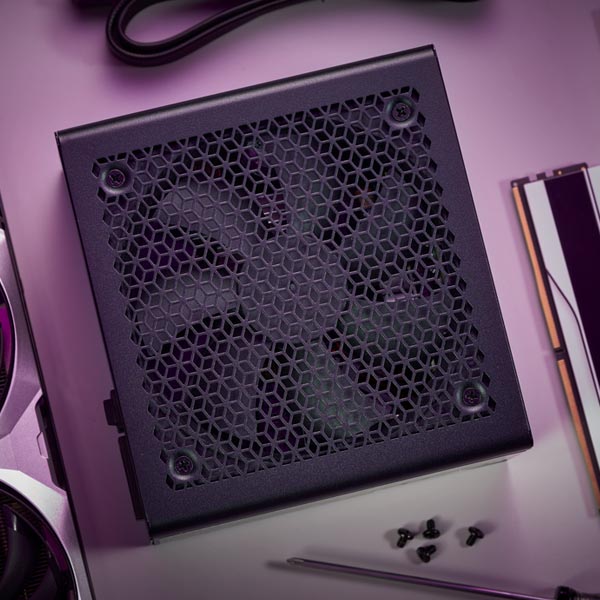

-120mm quiet cooling fan
-High Temperature Resilience up to 40°C

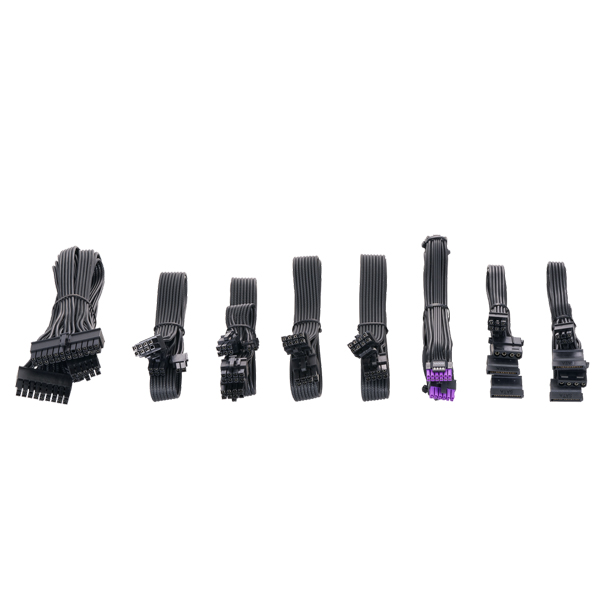

-Fully Modular Design with Flat Black Cables
-Compact Design Form Factor at 150mm or less
-Compatible with ATX 3.1 & PCIe Gen 5.1 standards
-Easy installation across wide range of case up to 150mm or less
-80 Plus Gold Certified achieves over 90% efficiency at typical loads
Specifications:

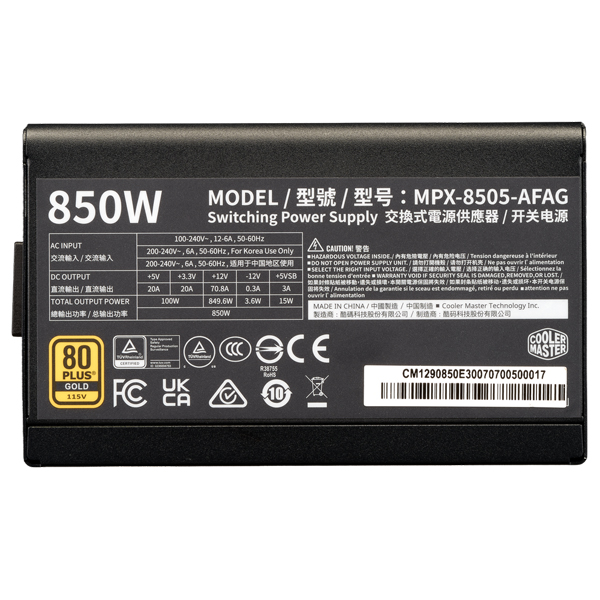

-Product Name: Elite Gold 850
-Product Number: MPX-8505-AFAG-BEU
-ATX Version: ATX 12V Ver. 3.1
-PFC: Active PFC
-Input Voltage: 100-240V
-Input Current: 6~12A
-Input Frequency: 50-60Hz
-Dimensions: (L)140 x (W)150 x (H)86mm

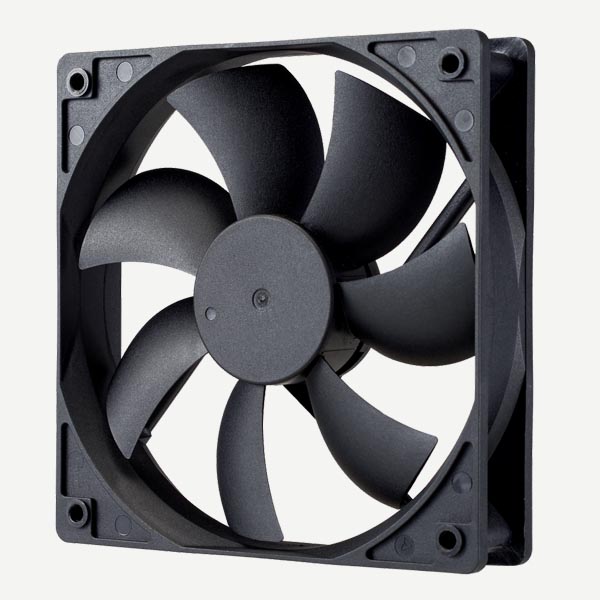

-Fan Size: 120mm
-Fan Bearing: Rifle bearing
-Efficiency: >90% @ Typical Load
-80 Plus Rating: 80 Plus Gold
-ErP 2014 Lot 3: Yes
-Operating Temperature: 0~40C
-Power Good Signal: 100-150ms
-Hold Up Time: >11ms @ 100% Load
-MTBF: >100,000 hours @ 25C ambient
-Protections: UVP/OVP/OPP/OTP/SCP
-Regulatory: cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0, REACH

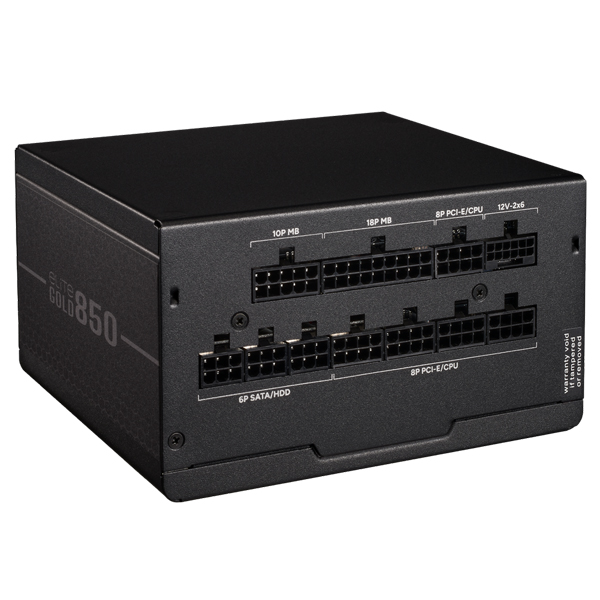

Connectors:
-1x (500mm) ATX 24 Pin x1
-1x (600mm) EPS 4+4 Pin x1
-1x (600mm) EPS 8 Pin Connector x1
-2x (400+120+120mm) SATA X4 & Peripheral 4 Pin Connector X2
-1x (500+120mm+500mm) PCI-e 6+2 Pin Connector x3

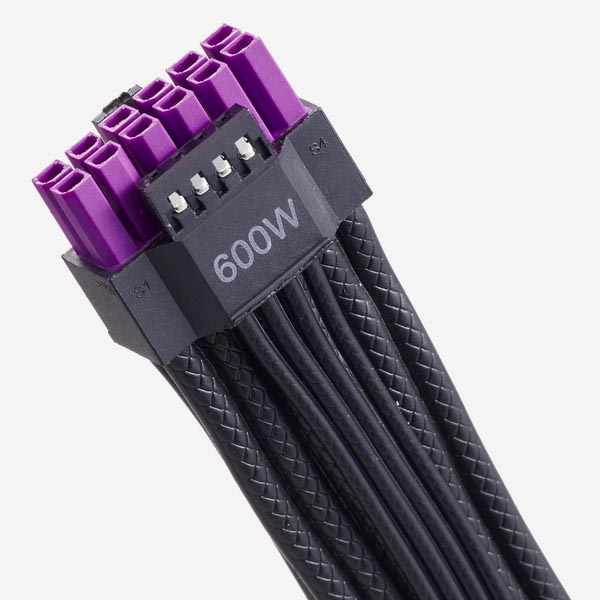

-1x (650mm) 12+4 Pin Connector x1
-Weight: 2700g
-Dimensions: (L)10.5 x (W)33 x (H)20cm
What’s in the box:
-1x Cooler Master Elite Gold 850W Power Supply
