COOLER MASTER - MPE-A501-AFCAG-WO



CM MWE 1050W ATX V2 80+GOLD W/ F/MOD PSU

Description

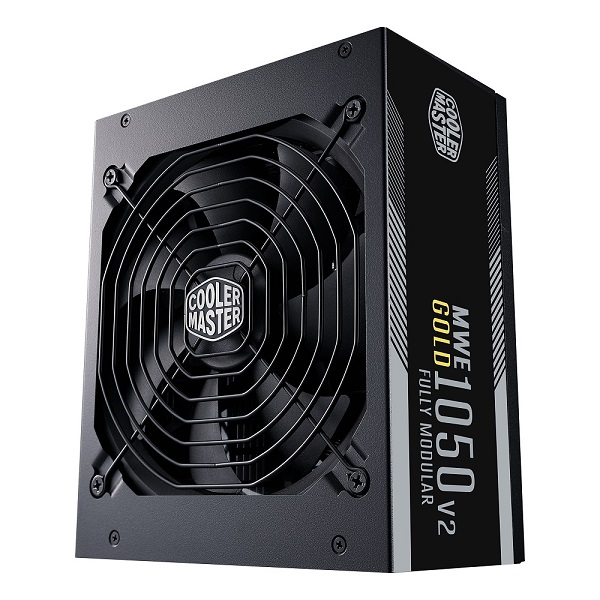

Cooler Master MWE 1050W EU 230V INTEL ATX 12V V2 80Plus Gold Certified Power Supply With 2 EPS Connectors, Active PFC, 140mm Hydro Dynamic Bearing Fan And Full Modular Flat Cables - Black Colour


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/automation-intelligent-systems-industrial-computer-peripherals-power-supplies-cooler-master-desktop-psu/mpe-a501-afcag-wo;

Cooler Master MWE 1050W EU 230V INTEL ATX 12V V2 80Plus Gold Certified Power Supply With 2 EPS Connectors, Active PFC, 140mm Hydro Dynamic Bearing Fan And Full Modular Flat Cables - Black Colour

Features:
-Operate safely at up to 50 degrees

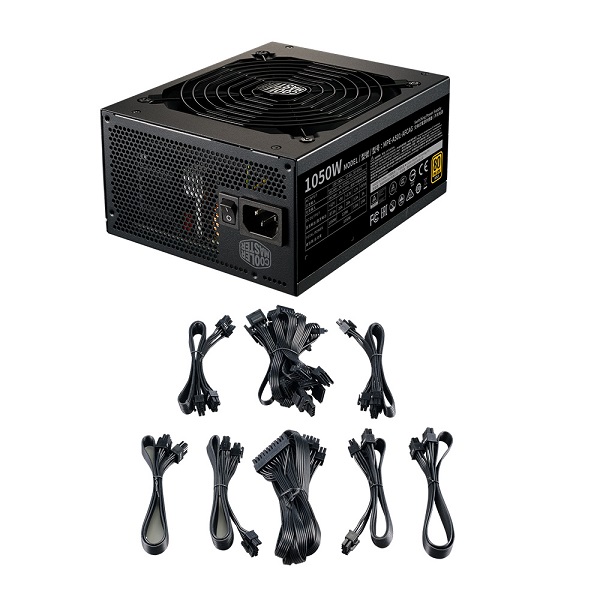

-Fully modular flat, black cables for increased airflow
-80 PLUS Gold Certification with a minimum efficiency of 90%
-2 EPS connectors for universal current generation M/B compatible

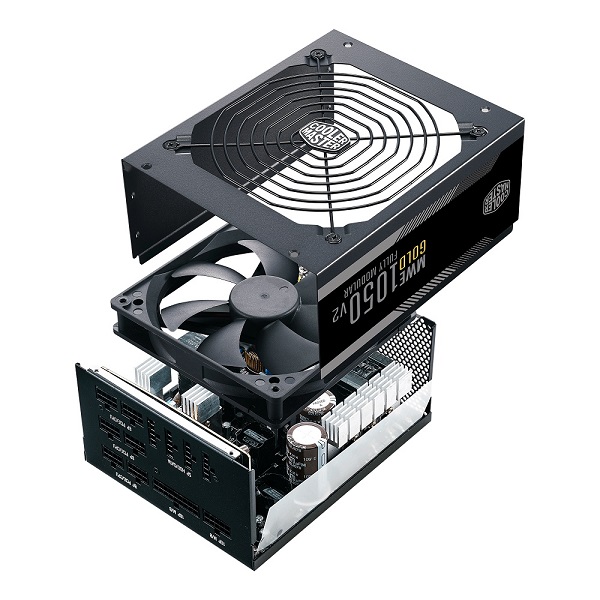

-140mm Fluid Dynamic Fan bearing for improved cooling and Noise reduction

Specifications:
-Product Name: MWE Gold 1050 - V2 (Full Modular)
-Item Code: MPE-A501-AFCAG
-ATX Version: ATX 12V 2.52
-PFC: Active PFC
-Input Voltage: 100 - 240V
-Input Current: 13 -6A
-Input Frequency: 47~63Hz
-Dimensions: (L)180 x (W)150 x (H)86 mm
-Fan Size: 140mm
-Fan Bearing: FDB (Fluid Dynamic Fan)
-Fan Speed: 2200 RPM
-Fan Noise @ 20%: 0dB(A)
-Fan Noise @ 50%: 14.9dB(A)
-Fan Noise @ 100%: 27.3dB(A)
-Efficiency: ?90% @ Typical Load
-80 PLUS Rating: 80 PLUS Gold
-ErP 2014 Lot 3: Yes
-Operating Temperature: 0~50°C
-Power Good Signal: 100~150 ms
-Hold Up Time: >20ms at 100% Load
-MTBF: >100,000 hours
-Protections: IVP / UVP / OPP / OTP / SCP / OCP
-Regulatory: TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA

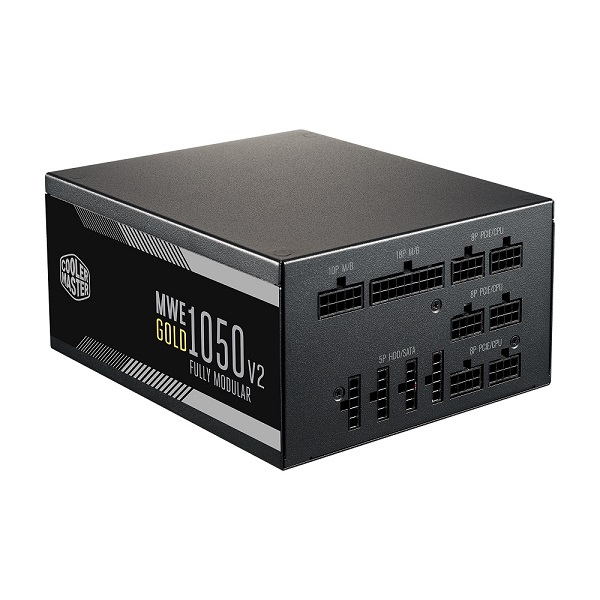

Connectors:
-1x ATX 24 Pin
-1x EPS 4+4 Pin
-1x EPS 8 Pin
-12x SATA
-4x Peripheral 4 Pin
-6x PCI-e 6+2 Pin

-Weight: 2017g
-Dimensions: (L)31 x (W)19.7 x (H)12.2 cm

What's in the box:
-1x MWE Gold 1050W V2 (Full Modular) PSU
-1x User Manual
