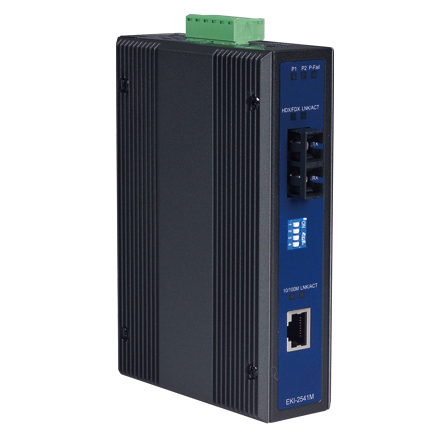

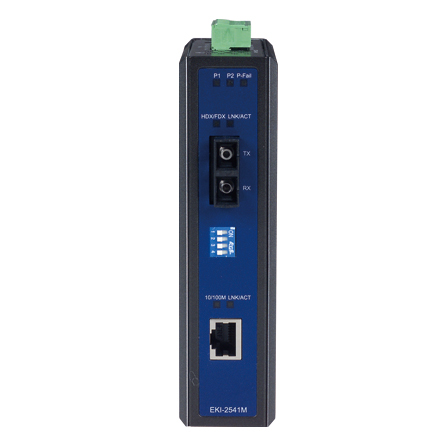

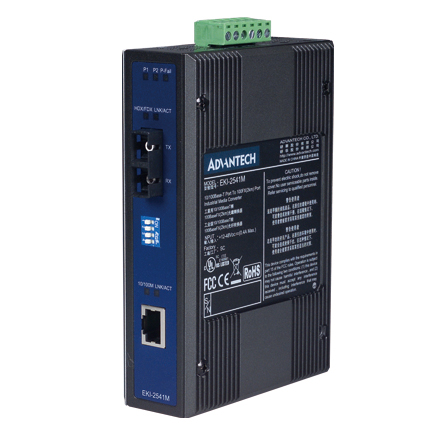

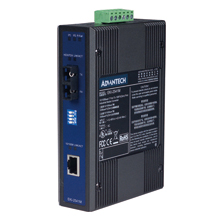

EKI-2541M/2541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmissions.Therefore, EKI-2541M/2541S is an ideal solution for “fiber to building” applications at central offices or local sites. EKI-2541M/2541S supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-2541M/2541S can work normally from -10 to 60°C and accepts a wide voltage range from 12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.

Link Fault Pass-Through (LFP)
EKI-2541M/2541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile EKI-2541M/2541S also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable the LFP function, then EKI-2541M/2541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.


EKI-2541M-AE Specs

I/O/Transmission DistanceEthernet: Up to 100m Multi-mode Fiber:Up to 2 km
I/O/Transmission SpeedUP to 100 Mbps
Power Supply/Power Input12~ 48 VDC, redundant dual inputs
Power Supply/Power Connector6-pin removable screw terminal
Operating System/Temperature (Operating)-10 ~ 60°C (14 ~ 140°F)
General/Power Consumption2.7W max. @ 48VDC
General/Power Input12 ~ 48 VDC, redundant dual inputs
General/Ethernet Connectors1 x RJ-45 and 1 x SC type fiber connector
General/MountingDIN-rail, Wall
Interface/Ports Number2
