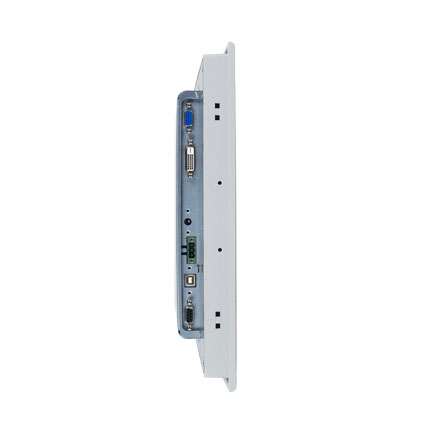

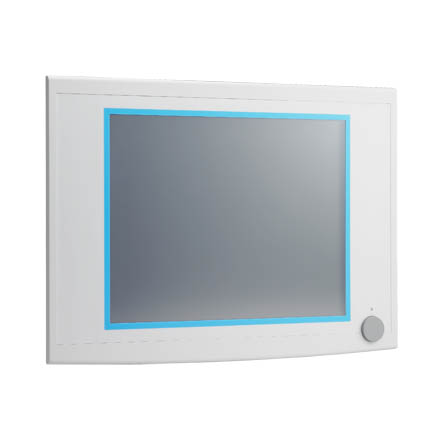

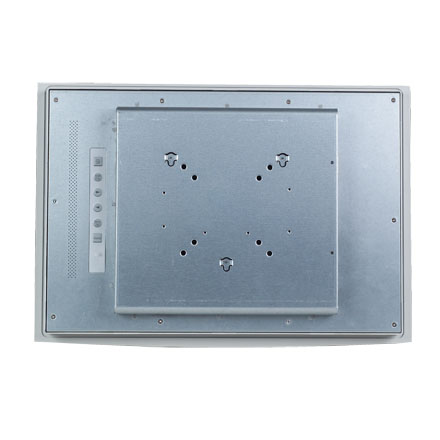

The FPM-5000G series provides 15", 17" and 19" color TFT LCD with LED backlight flat panel monitors specifically designed for industrial applications. With a viewing size from 15" to 19", they present ample display areas as well as vivid and sharp images. It features Direct-VGA & DVI-D signal transmission, which allows VGA control cards to be used in your system. The onscreen display allows users to adjust the images on the screen with two user-defined settings. The front access USB connector provides easy access the controller, and the industrial 10-30 VDC wide range power support makes this product an excellent option for Factory and Machine Automation display solutions.


FPM-5151G-R3BE Specs

Display/Display Size15"
Display/Display Type15" XGA
Display/Max. Colors16.7 M
Display/Max. Resolution1024 x 768
Display/Backlight MTBF(hrs)50,000
Display/Luminance (cd/m2)400
Display/Viewing Angle (H/V°)160/140
General/CertificationsBSMI, CCC, CE, FCC Class A, UL
General/Dimensions 449.92 x 315.63 x 50.5 mm
General/Power Input Voltage10-30v
General/Video PortVGA/DVI
General/Weight (Net) 6kg
General/Operating SystemWindows XP, Vista, 7,8, XPe, CE and Linux
General/OSD(onscreen display)On rear side with lockable function
Environment/Operating Temperature0 ~ 50°C (32 ~ 122°F)
Environment/Storage Temperature-20 ~ 60°C (-4 ~ 140°F)
Touchscreen (Optional)/Touch Operation SystemPenMount 6000
Touchscreen (Optional)/TouchscreenCombo
