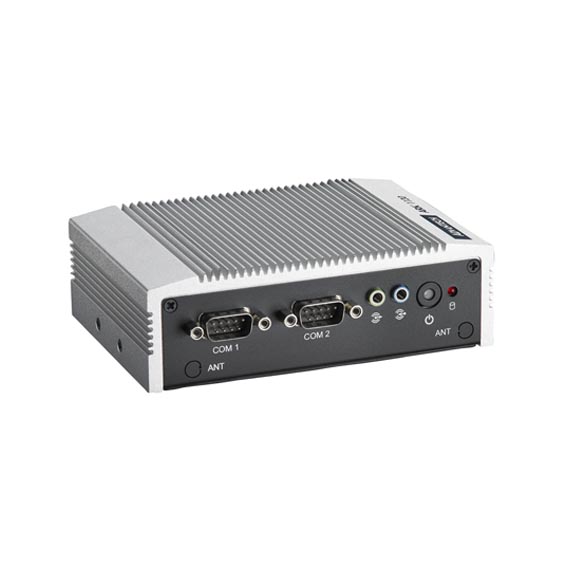

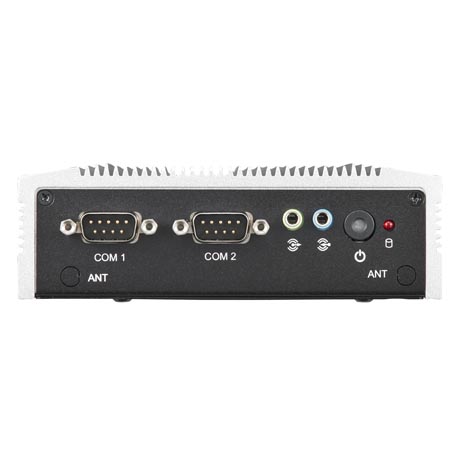

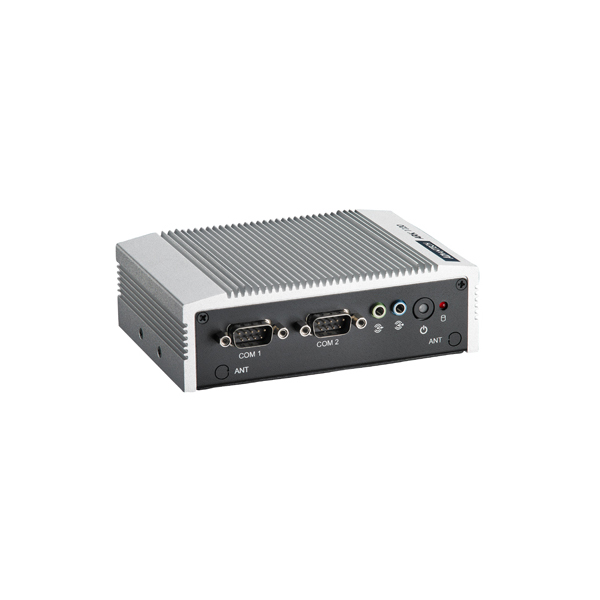

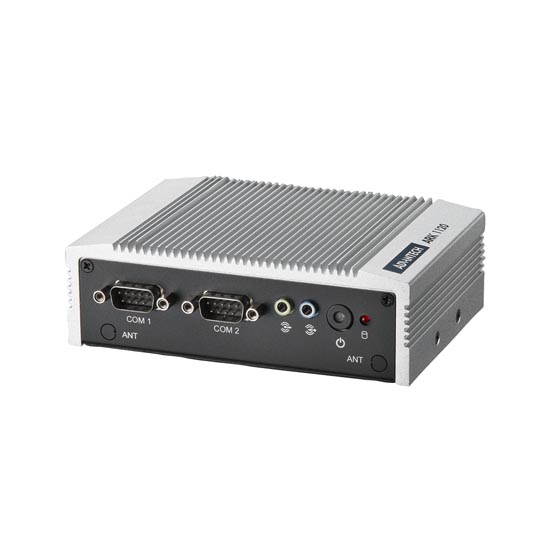

ADVANTECH - ARK-1120L-N5A1E



ADV ATOM N455 1.66GHZ 2COM+USB+LAN+AUDIO

Description

ADVANTECH ATOM N455 1.66GHZ WITH 2COM,4USB, LAN, AUDIO


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/automation-fanless-embedded-box-pcs-ark-series/ark-1120l-n5a1e;

ADVANTECH ATOM N455 1.66GHZ
WITH 2COM,4USB, LAN, AUDIO

Features:
-Intel Atom processor N455 1.66 GHz + ICH8M, DDR3 memory support

-Palm-size design: 133.8 x 43.1 x 94.2 mm

-Supports 2.5" SATA HDD

-Low-power-consumption, total power consumption < 10W

-One half mini-PCIe socket expansion

-Supports SUSIAccess and Embedded Software APIs

-Optional VESA/Wall/Din Rail Mount
-Lockable DC jack design
-Supports SUSIAccess and Embedded Software APIs

Specifications:
Processor:
-CPU: Intel Atom processor N455
-Core Number: 1
-Frequency: 1.66 GHz
-L2 Cache: 512 KB
-Chipset: Intel ICH8-M
-BIOS: AMI 16Mbit Flash BIOS

Memory:
-Technology: DDR3 667MHz
-Max. Capacity: 2 GB
-Socket: 1 x 204 pin SO-DIMM

Graphics:
-Chipset: Intel ICH8-M
-Interface: CRT interface, up to 1600 x 1200 (SXGA)

Ethernet:
-LAN: 1 x 10/100/1000 Mbps Intel 82567V GbE, Support Wake on LAN

Audio:
-Interface: Realtek ALC892, Line-out, Line-in

I/O:
-Serial port: 2 x RS-232
-USB: 4 x USB ports, USB 2.0 Compliant

Others:
-Watchdog timer: 255 levels timer interval, setup by software

Expansion:
-Mini PCIe: 1 x half-size miniPCIe supports WIFI only

Storage:
-HDD: Support one SATA 2.5" HDD Bay (support 9.5mm height only)
-SSD: Supports CompactFlash socket for type I/II CompactFlash disk (only available for T-Parts and CTOS service)

Software Support:
-Microsoft Windows: Windows 7, XP Professional, XP Embedded, WinCE 6.0
-Linux: Ubuntu v10.04.1

Power:
-Power Type: ATX
-Input Voltage: 12 VDC
-Power Adaptor: AC to DC, DC12 V/3 A, 36 W, support DC locker design
-Consumption: Typical 9.12 W, Max. 10.80 W

Mechanical:
-Construction: Aluminum housing
-Mounting: Support VESA/DIN Rail/Wall mounting (Optional)
-Dimensions: 133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")

Environment:
-Operating Temperature: 0 ~ 40° C (32 ~ 104° F) with 0.7m/s air flow and standard temperature HDD
-Storage Temperature: -40 ~ 85° C (-40 ~ 185° F)
-Relative Humidity: 95% @ 40° C (non-condensing)
-Vibration during Operation: With CompactFlash disk: 3Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1hr/axis.
-Shock During Operation: With CompactFlash disk: 30Grms, IEC 60068-2-27 , half sine, 11 ms duration

Certifications:
EMC: CE/FCC Class A, CCC, BSMI
-Safety: CB, UL, CCC, BSMI

-Weight: 1000g
-Dimensions: (L)25 x (W)18 x (H)16cm
