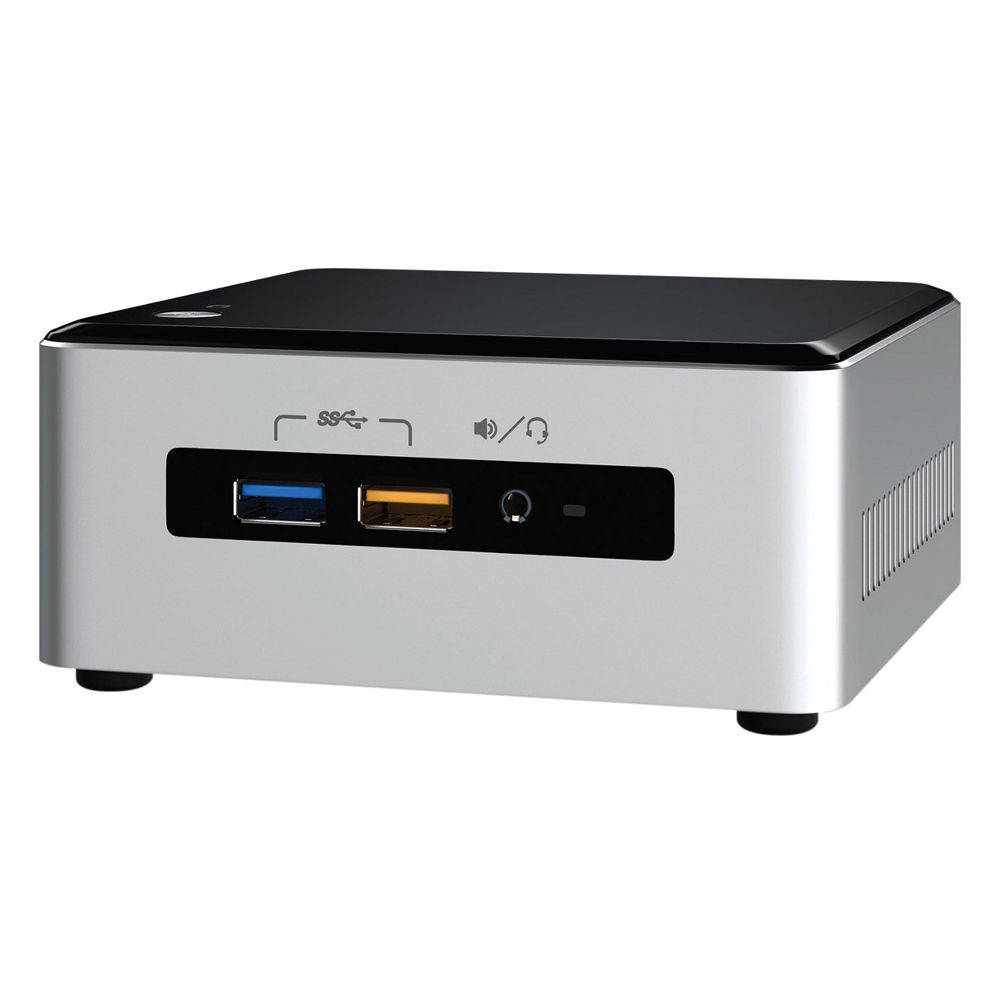

INTEL - NUC-I-6I3SYH



INTEL I3-6100U 2.3GHZ,1X DDR4, HDMI, MDP

Description

Intel NUC Kit NUC6i3SYH is equipped with Intel's newest architecture,the 6th generation Intel Core i3-6100U processor, With 7.1 surround sound and a full-sized HDMI* port for brilliant 4K resolution.


Specification

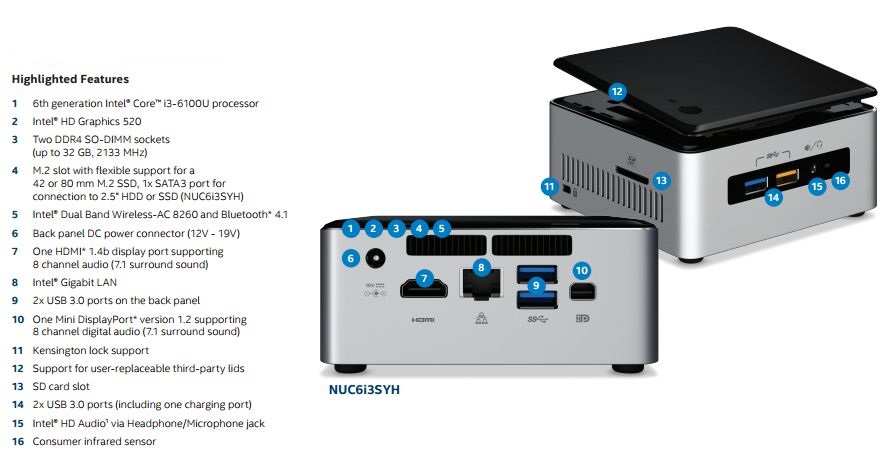

INTEL NUC Kit NUC6I3SYH

Support for user-replaceable 3rd party lids
NFC and AUX_PWR headers
OS certs: Windows 10 and Windows 8.1 Loge
OS compatibilty: Ubuntu, Linux Mint, Fedora, OpenSUSE
Low-acoustics active cooling design
Kensington lock with base security
12-19V DC power input

Specifications:
Processor: 6th generation Intel Core i3-6100U processor (2.3 GHz Dual Core, 3 MB cache, 15W TDP)
Memory: Dual-channel DDR4 SODIMMs / 1.2V, 2133MHz, 32GB maximum
Graphics: Intel HD Graphics 520
Audio: Up to 7.1 surround audio via HDMI and Mini DisplayPort / Headphone / Microphone jack on the front panel

Peripheral connectivity:
2x USB 3.0 ports on the back panel
2x USB 3.0 ports on the front panel (1x charging capable)
2x Internal USB 2.0 via header
Consumer infrated sensor on the front panel

Storage:
Internal support for M.2 SSD card (22x42 or 22x80)
Internal SATA3 support for 2.5" HDD/ SSD (up to 9.5mm thickness)
SDXC slot with UHS-I support on the side

Networking:
Intel 10/100/1000Mbps network connection
Intel Wireless-AC 8260 M.2 soldered-down, wireless antennas (IEEE 802.11ac, Bluetooth 4.1, Intel Wireless Display 6.0)

Enclosure:
Silver with black top and diamond cut around the top
Aluminum and plastic
Dimensions: 115mm x 111mm x 48mm

Power adapter:
19V, 65W wall-mount AC-DC power adapter
Multi-country plugs (IEC types A/C/G/I)
