Specification

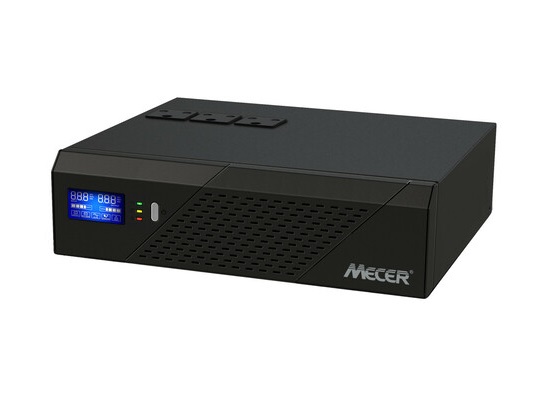

Mecer 2400VA Inverter
Features:
Simulated sinewave inverter
Wide input voltage range
12VDC or 24VDC available
Overload and short circuit protection
LCD display for comprehensive information
Optional solar charger
Specifications:
Model: IVR-2400LBKS
Capacity: 2400VA/ 1440W
Output:
Efficiency (Peak): 85%
Battery & AC Charger:
Battery Voltage: 24 VDC
Floating Charge Voltage: 27.4 VDC ±2%
Low Battery Alarm Voltage: 20.4Vdc ±2%
Shutdown Voltage: 19.8Vdc ±2%
Overcharge Protection: 30.0Vdc ±2%
Solar Charger (Optional):
Solar Charge controller not included, will request to purchase separately
Maximum PV Array Open Circuit Voltage: 60 VDC
Operating Voltage Range: 30¬32 VDC
Protection: Full protection: Overload, short circuit and polarity reserve protection
Physical:
Net Weight (kgs): 4.6
Operating Environment:
Humidity: 0 to 90% Relative Humidity (Non-condensing)
