Specification

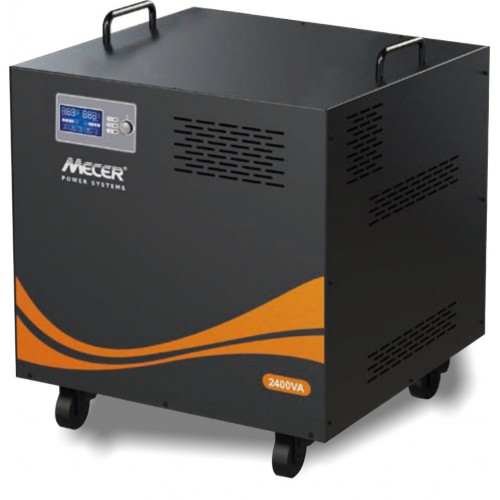

MECER 2.4KVA/1440W INVERTER WITH HOUSING AND WHEEL EXCLUDING BATTERY
Features:
Simulated sine wave inverter
Wide input voltage range
10 A and 20 A standard AC charging current
LCD display for comprehensive information
Overload, short circuit and reverse polarity protection
Specifications:
Model: BBONE-024S
Capacity: 2400VA/ 1440W
Input Voltage: 230 VAC
Input Acceptable Voltage Range: 90-280 VAC
Input Frequency: 50 Hz/60 Hz (Auto sensing)
Output AC Voltage Regulation (Batt. Mode): ± 10%
Output Efficiency (Peak): 85%
Transfer Time: 20 ms typical
Output Waveform (Batt. Mode): Simulated sine wave
Battery Type and Numbers: 12 V 100Ah x 2 (not included)
Full Protection: Overload, short circuit and polarity reserve protection
Dimension: 345(D) x 400(W) x 450(H) mm
Operating Environment:
Humidity: 0 to 90% Relative Humidity(Non-condensing)
Operating Temperature: 0 C to 40 C
Storage Temperature: -15 C to 50 C
