HIKVISION - SUR-HK-DS-2CE56C0T



HIKVISON 720P OUTDOOR EYEBALL 20M IR 3.6

Description

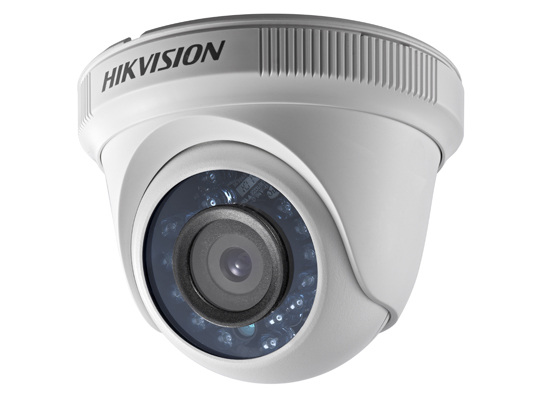

HIKVISION 720P OUTDOOR EYEBALL 20M IR 3.6MM LENS - DS-2CE56C0T-IR


Specification

HIKVISION 720P OUTDOOR EYEBALL 20M

- 1.0 Megapixel high-performance CMOS
- Analog HD output, up to 720P resolution
- True Day/Night
- DNR, Smart IR
- Up to 20M IR distance
- IP66 weatherproof

Specifications:
Image Sensor: 1MP CMOS Image Sensor
Signal System: PAL/NTSC
effective Pixels: 1296(H0x732(V)
Min. IIumination: 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 3.6mm (2.8mm, 6mm optional), Angle View: 70.9 Degree(2.8mm), 56.7 (6mm)
Lens Mount: M12
Adjustment Range:
Pan: 0-360 Degree
Tilt: 0-75 Degree
Rotation: 0-360 Degree
Day & Night: IR cut filter with auto switch
Video Frame Rate: 720p@25fps/720p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB

General:
Operating Conditions: -40-60 Degree Celcius
Humidity: 90% or less (non0condensing)
Power Supply: 12 VDC 15%
Power Consumption: Max. 4W
Weather Proof: IP66
IR Range: Up to 20m
Dimensions: 89.5 x 69.8mm
Weight: 260 g
