Specification

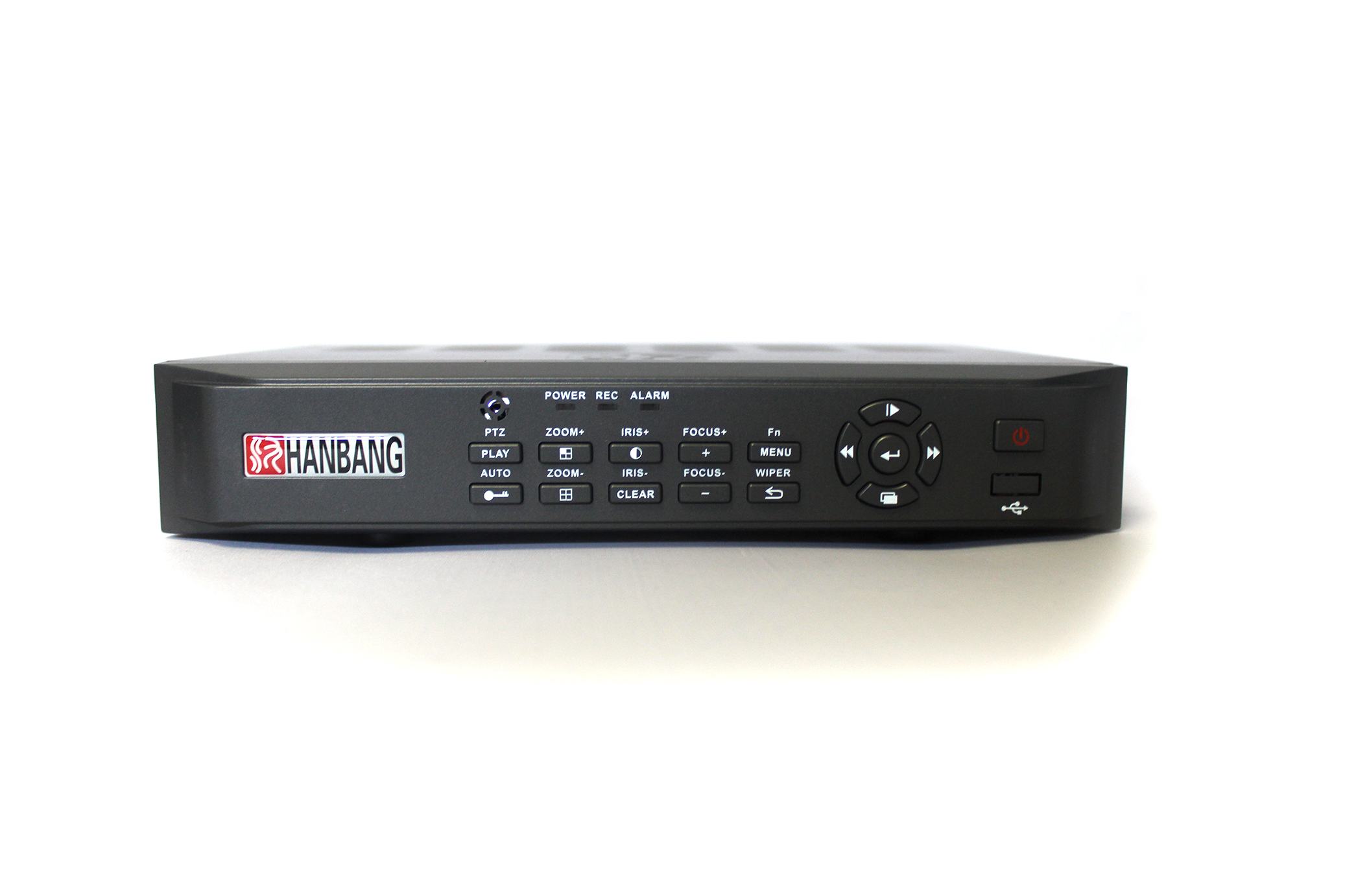

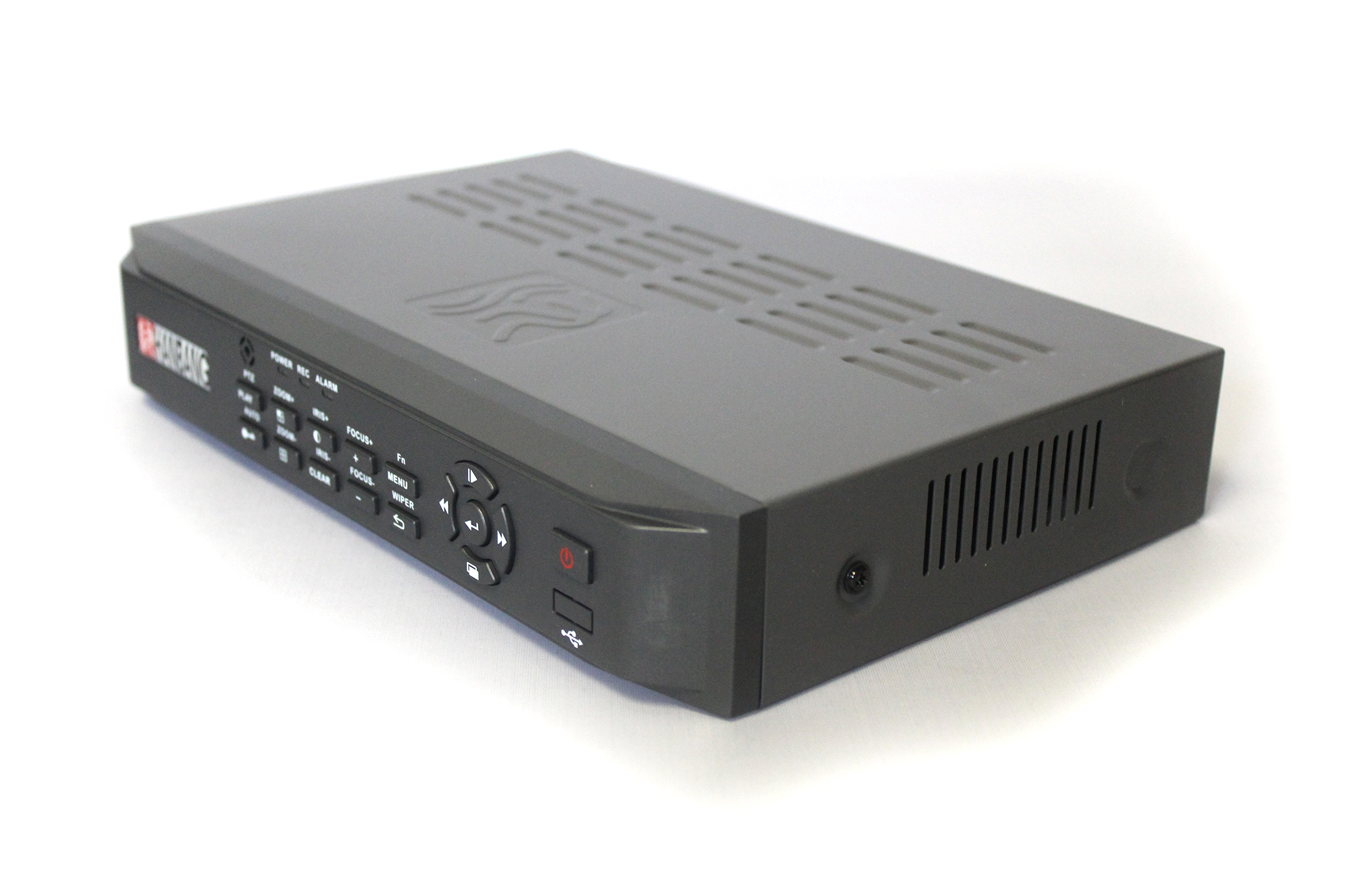

Hanbang 8/16 Channel 960H/D1 1U Standalone DVR
8/16 channel 960H/FD1 video input 1U DVR
Support 1 HDD, HDD Group, HDD R/W Control, Max 8T Each
8/16 full channel realtime playback
Support Icon Interface, User Friendly & Easy-Operate
Support Snapshot, Record Lock, Record Cutting, AVI Backup
Quick Backup when Playback
Support 3G Network Access
Max 8 Network Accessing Users
Support Eliminating Bad Disk, HDD Record Storage Group, HDD R/W Control
Support HDMI/VGA/BNC Simultaneous Output
Support PTZ, Manual Alarm, Alarm In/Out
Support CMA, Web View and Mobile View
Model: 7108X3-LH
Housing: 1U
Operation System: Embedded LINUX
Video:
Compression: H.264
Input: 8*BNC
Ouput: HDMI+VGA+CVBS
Dual Stream: Support
Audio:
Compression: G.771A
Input: 2*RCA
Ouput: 1*RCA
Bidirectional Talk: 3.5mm MIC Input Interface
Alarm:
Input: 4ch
Output: 1ch
Preview:
Resolution: FD1: PAL(704×576), NTSC(704×480)/ 960H: PAL(928×576), NTSC(928×480)/ VGA:1920*1080
Display: 1ch/ 4ch/ 8ch/ 9ch
Sequence: Yes
Privacy Masking: 4 zones Maximum, On DVR
Recording:
Resolution: 8ch FD1/CIF/960H/Q960H
Recording Mode: Manual, Schedule, Motion, Alarm
Recording Quality: CBR, VBR
Recording Interval: Pre-record: 5~30 sec,/ Post-record: 0~180sec.
Playback:
Channel: 4ch
Search Mode: Time,Date,Record Mode
Privacy Masking: 4 zones Maximum
Network:
Connection Way: Support 3G
Remote Operation: WEB( IE, Chrome, Firefox, Safari)
Email: Test and send
Mobile: Support (IPhone, Andorid, Ipad)
Backup: USB devices & Network download
HDD: 2 HDD(Max support 4TB each)
External Interface:
Network Interface: 1 RJ-45 10/100M/1000M adaptive Ethernet Interface
USB Interface: 2 Interfaces( Mouse control & Backup)
Auxiliary Interface: 1 RS-485(HDX)
General:
Power Supply: 220±30% V,50±3% Hz
Power Consumption (Full Load): 27W
Working Environment: -10?~+45? / 15%~85%RH
Dimension: 324mm×245mm×47mm (W×D×H)
Weight: 1.5KG (without HDD)
