Specification
AVERMEDIA CM311-H HDMI MINI-PCIE 1080P 60FPS VIDEO CAPTURE CARD

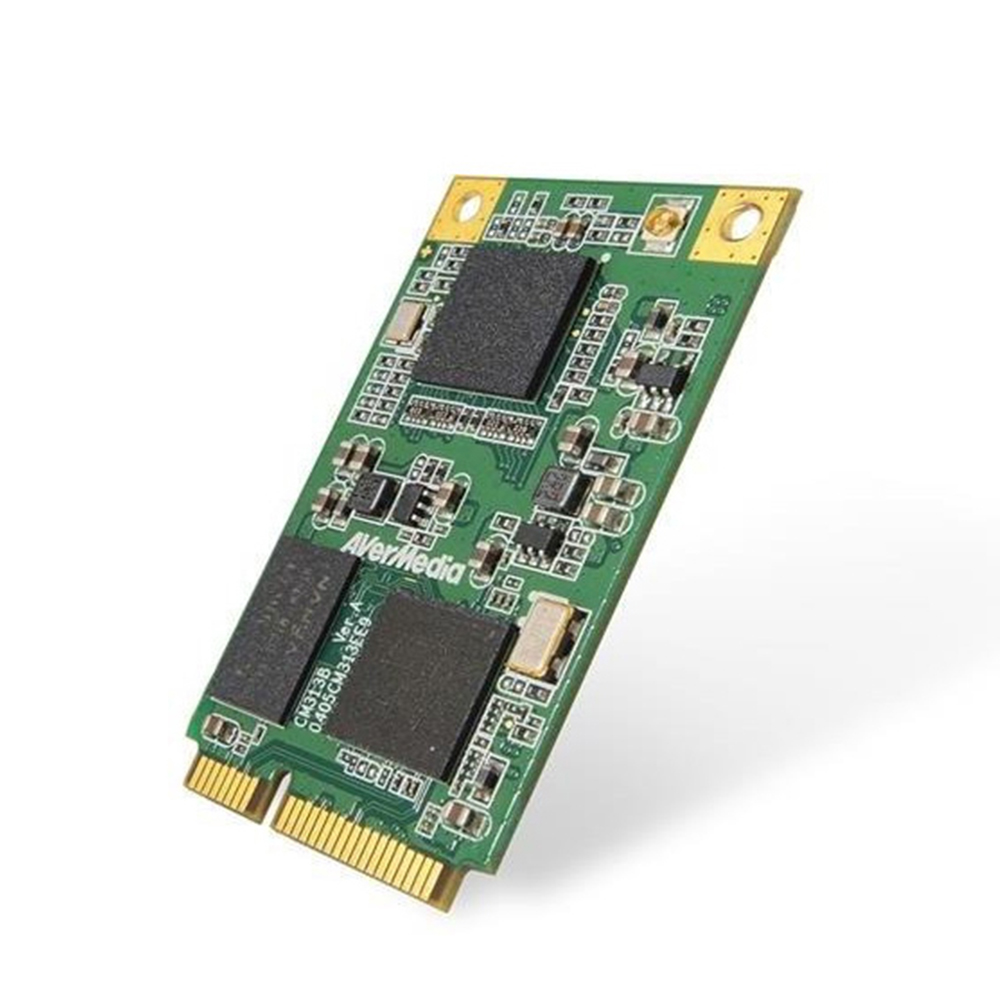

CM311-H is a Mini-PCIe HDMI frame grabber capable of capturing videos up to 1080p@60. With AVerMedia Video Engine technology inside, it can perform various video processing tasks such as frame rate conversion, de-interlacing, scaling and so on without consuming the computing power of the target platform.
Features:
-Mini PCI Express form factor
-HDMI 1.4a input
-Max capturing/recording up to 1920x1080 60fps
-AVerMedia Video Engine technology inside
Specifications:
-Host Interface: PCI Express Gen2 x1
-Audio Interface: HDMI 1.4a
-Audio Format: HDMI embedded audio
-Audio Sampling Rate: 32KHz, 44.1KHz, 48KHz
-Connector Type: SHLD 30 pin connector
-Video Input Interface: HDMI
-Video Format:
YUV444: IYU2, AYUV, V410, Y410, YUV422: YUY2, YUYV, UYVY, V210, -Y210, YUV420: I420, NV12, YV12
-RGB: RGB565, RGB555, RGB24, RGB32, ARGB
-Colour Depth: 8-bit /10-bit
-Channel No.: 1 CH
-Input Resolution: 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60 fps, 1920x1080i @ 50/59.94/60 fps, 1280x720p @ 50/59.94/60 fps
720x576 @ 50 fps, 720x480p @ 59.94/60 fps, 640x480p @ 59.94/600fps
-Record Resolution: 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60 fps, 1280x720 @ 50/59.94/60 fps, 720x576 @ 50 fps, 720x480 @ 59.94/60 fps, 640x480 @ 59.94/60 fps
-Encoding Mode: Software Encoding
-Multi-Card Support: Yes
-Supported OS: Windows 7/8.1/10 (32/64bit)
-Form Factor: Mini PCIe
-Dimension: 50.80(L) x 30(W) mm
-Power Consumption: ~ 4.0W
-Operating Temperature: 0C~50C (by simulation)
-Operating Humidity: 5%~80% Relative Humidity

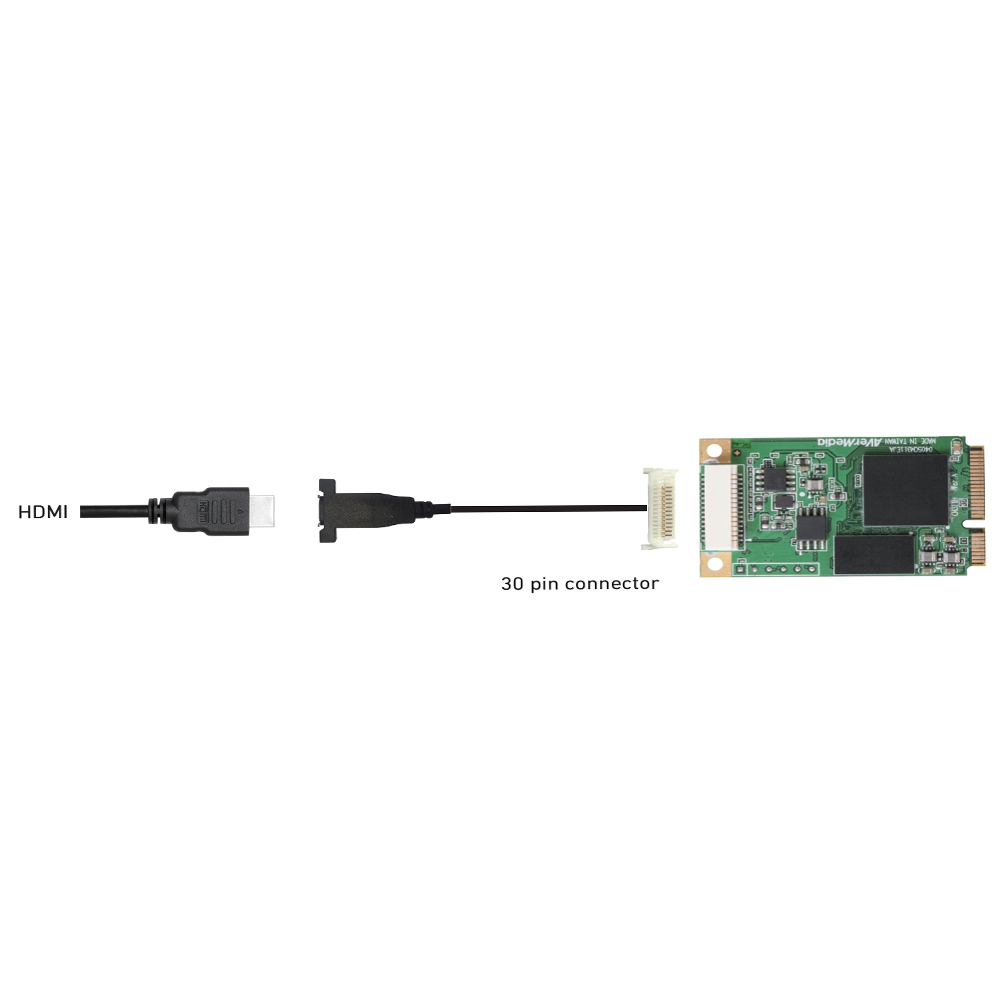

-Accessories: 30 pin to HDMI adapter cable, Thermal pad
-SDK kits: SDK Basic, Pro, and Premium Add-on Kits
