Specification

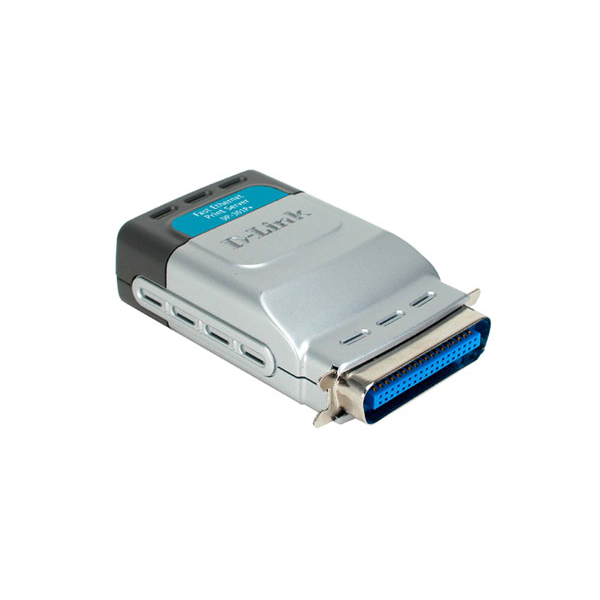

D-Link DP301P+ Parallel Print Server
Standards:
IEEE 1284
IEEE 802.2
IEEE 802.3
IEEE 802.3u
USB 2.0/1.1
Device Interface:
10/100Mbps Fast Ethernet
Two IEEE 1284 Parallel Ports
USB 2.0 Port
Data Transfer Rate: 10/100Mbps
Transport Protocol:
TCP/IP
NetBEUI
AppleTalk/EtherTalk
TCP/IP Protocols Supported:
BOOTP
SNMP
Telnet
TFTP
FTP
LPD
RARP
DHCP
Management: SNMP
MIBs: MIB-II (RFC 1213)
Diagnostic LEDs:
Power
Link/Activity
USB
LPT1
LPT2
Power Input:
External Power Supply
DC 5V, 2.5A
Dimensions:
Item (WxDxH): 4.60 x 7.59 x 1.22
Weight; 0.64 lbs (292g)
Temperature:
Operating: 32°F to 122°F (0° to 50°C)
Storage: -13°F to 131°F (-25° to 55°C)
Operating Humidity: 5% ~ 95% Maximum (Non-condensing)
Minimum System Requirements:
Computer with:
300MHz Processor
64MB Memory
Ethernet Adapter with TCP/IP Protocol Installed
Windows Vista®, Windows® XP SP2, Windows 2000 SP4**, or Mac OS® X (v10.2/v10.3)***
Printer with USB 2.0/1.1 Port or Parallel Port Connector
Package Contents:
Fast Ethernet 3-Port Print Server
Power Adapter
Quick Installation Guide
CD-ROM**** with:
Product Documentation
** Computer must adhere to Microsoft’s recommended System Requirements. Please contact Microsoft for details.
**Mac OS X 10.4.3 or higher required.
**Latest Software and Documentation are available at D-Link Tech Support site.
