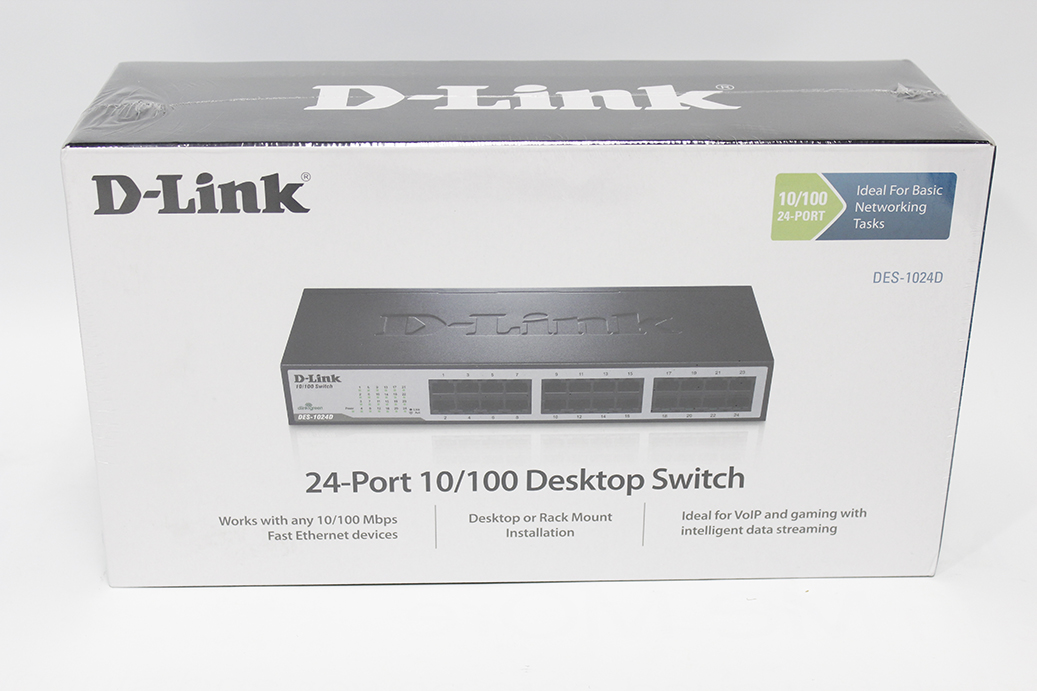

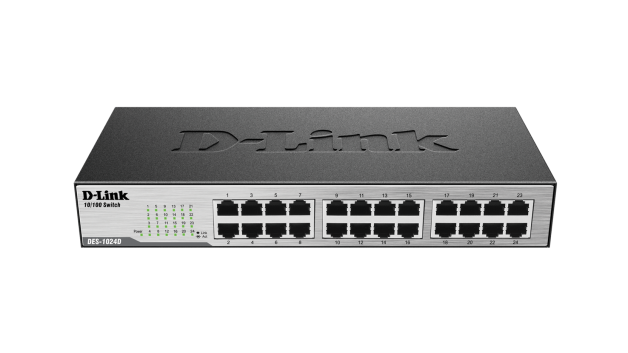

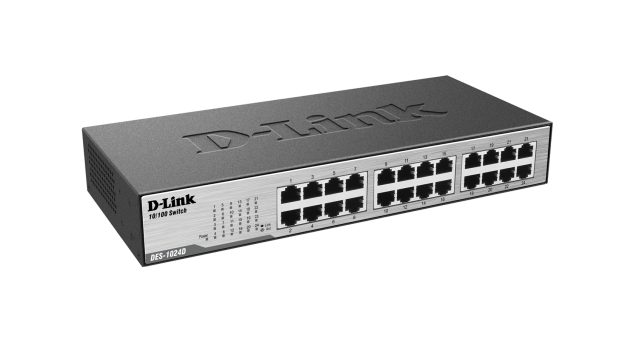

D-Link DES-1024D 24Port 10/100Mbps Unmanaged Desktop

Ideal for Basic Networking Tasks
Auto-Sensing 10/100 Ports
Flow Control for Secure Transmission
Quality of Service
Save on Energy Costs

General:
Standards:
IEEE 802.3 10BASE-T Ethernet (twisted pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control

LAN:
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX compliance
IEEE 802.3x Flow Control support

Data Transfer Rates:
Fast Ethernet
100 Mbps Half-Duplex
200 Mbps Full-Duplex
Ethernet
10 Mbps Half-Duplex
20 Mbps Full-Duplex

Functionality:
Switching Capacity: 4.8 Gbps
Number of Ports: 24 10/100Mbps Fast Ethernet ports

Network Cables:
10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange: Auto MDI/MDIX adjustment for all ports
MTBF: 810,880 hours

LED Indicators:
Per port: Link/Activity
Per device: Power

Transmission Method: Store-and-forward
MAC Address Table: 8K entries per device
MAC Address Learning: Automatic update

Packet Filtering /Forwarding Rates:
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port

Topology: Star
Protocol: CSMA/CD

Physical:
Dimensions: 11.0 x 5.0 x 1.7 inches(280 x 125.8 x 44 mm)
Weight: 3.652lbs(1.66kg)

Power Consumption:
Power On (Standby):
DC input: 1.33 Watts
AC input: 2.39 Watts
Maximum:
DC input: 5.50Watts
AC input: 8.07Watts

Heat Dissipation:
Power On (Standby):
AC input: 8.16 BTU/h
Maximum:
AC input: 27.54 BTU/h

Temperature:
Operating: 32 to 104 °F (0 to 40 °C)
Storage: 14 to 158 °F (-10 to 70 °C)

Humidity:
Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing

Certifications:
CE
FCC
ICES-003
C-Tick
cUL
CB
