Specification

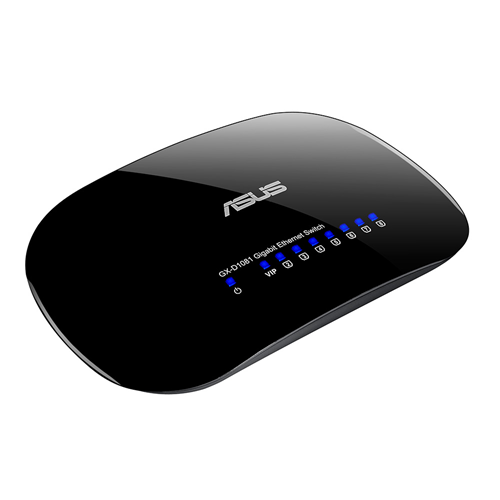

Asus 8Port Base-T Gigabit Switch
No software needed for configuration- which makes installation easier and faster
Built-in VIP Ports facilitate lag-free VoIP transmission by prioritizing voice data traffic
Embedded energy conservation through link down standby mode, save up to 70% power consumption
Specifications:
Port Attributes:
RJ-45 for 8 x 10/100/1000 Mbps Ethernet ports
LAN1 default VIP, Top Priority Port
Standard:
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control
IEEE 802.1p Priority Queuing
Performance:
MAC Address: Up to 8 K
Forwarding Rate: (10Mbps Port): 14,800packets/sec/(100Mbps Port): 148,800packets/sec/(1000Mbps Port): 1,488,000packets/sec
Switch Fabric: 16 Gbps
Buffer Memory: 128 Kbits
Jumbo Frame: up to 9 KB
LED Indicator: Power LED and Link/Activity indicators for per port
Data Rate:
Ethernet: 10Mbps (Half-duplex)
Ethernet: 20Mbps (Full-duplex)
Fast Ethernet: 100Mbps (Half-duplex)
Fast Ethernet: 200Mbps (Full-duplex)
Gigabit Ethernet: 2000Mbps (Full-duplex)
Transmission Method: Store-and-forward
Power Supply:
External Adapter: DC 5 V / 1 A switching adaptor
Power Consumption: 5.07 Watts Max.
Environmental:
Operating Temperature: 0 °C to 40 °C (32 °F to 104 ºF)
Storage Temperature: -20 ° to 70 ° C (-4 °F to 158 °F)
Operating Humidity: 10 % to 90 % (Non-condensing)
Storage Humidity: 5 % to 90 % (Non-condensing)
Dimensions:
165 x 103 x 34 ~ cm (WxDxH)
