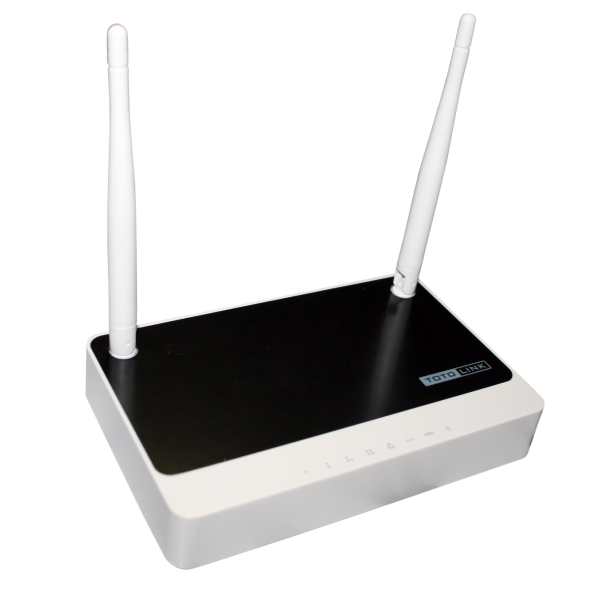

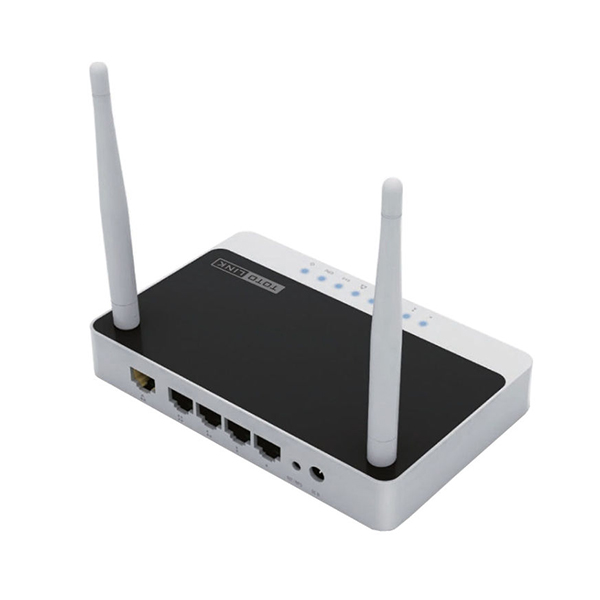

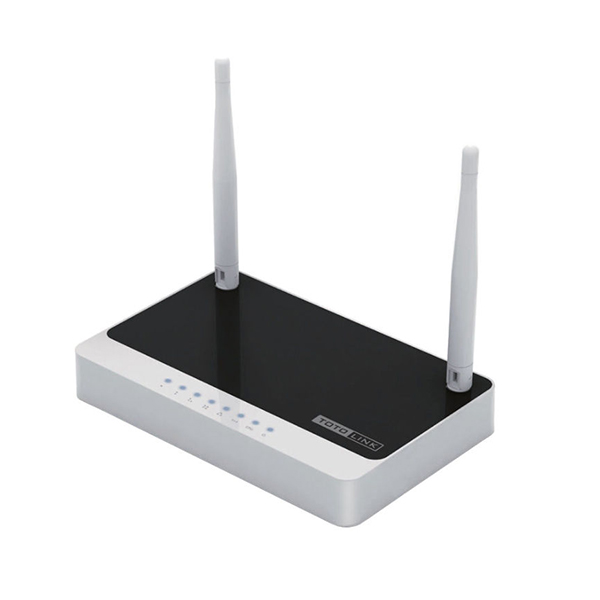

TOTOLINK WIFI N ROUTER

Specification:
Hardware Features:
Interface:
- 4*100BaseTX (Auto MDI/MDIX) LAN Ports
- 1*100BaseTX (Auto MDI/MDIX) WAN Port

Dimensions: 147.3mm x 94.7mm x 25mm (L x W x H)
Power Supply: 9V DC/0.5A
Antenna: 2*4dBi fixed antennas
LED Indicators: 1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN
Button: Reset & WPS two-in-one button

Environment:
Operation Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: 40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Wireless Features:
Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
RF Frequency: 2.4~2.4835GHz
Wireless Security: 64/128-bit WEP, WPA/WPA2 (AES/TKIP)
Output Power: < 20dBm (EIRP)
Channels: 1-11 (North America), 1-13 (General Europe), 1-14 (Japan)
Modulation Type: BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)

Data Rate:
802. 11n: up to 300Mbps
802.11g: Up to 54Mbps (dynamic)
802.11b: Up to 11Mbps (dynamic)

Reception Sensitivity:
270M: 65 dBm@10% PER
135M: 65 dBm@10% PER
54M: 68 dBm@10% PER
11M: 85 dBm@8% PER
6M: 88 dBm@10% PER
1M: 90 dBm@8% PER

Software features:
Network:
Internet Setup: PPPoE/DHCP/Static IP
LAN/DHCP Setup: DHCP Server/DHCP Static Lease

Wireless:
- Wireless Basic Setup
- Multiple BSS
- Multibridge(Repeater): Wireless Bridge/Wireless WAN
- MAC Authentication
- WDS
- WPS
- Advanced Setup

NAT/Routing:
- Port Forwarding
- DMZ/Twin IP
- Port Trigger
- Routing Table

Firewall:
Internet Access Control:
- IP/MAC Address filtering
- Net Detector
- Remote/Internal access list

Utility:
- VPN Setup
- DDNS
- WOL
- Host Scan

Traffic:
- Connection Control
- Wired Port Setup

Management:
- System Log
- Admin Setup
- Firmware Upgrade
- System Time
- Configuration backup/restore
