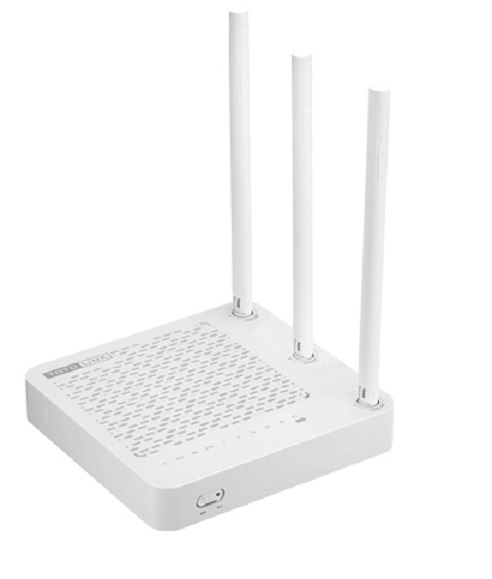

Totolink AC750 Dual Band Gigabit Router

Features:
Complies with 802.11ac/a/b/g/n standards
300Mbps on 2.4GHz and 433Mbps on 5GHz band simultaneously
Three fixed high gain antennas with advanced MIMO technology
Supports PPPoE, DHCP and Static IP broadband functions
Five Gigabit Ethernet Ports ensure ultrafast data transmission rate
Multi-SSID allows user to create multiple SSIDs according to their needs
Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security
Connects to secure network easily and fast using WPS
Supports IP, MAC, URL filtering and Port Forwarding
Universal repeater and WDS function for easy Wi-Fi extension
The VPN server can not only protect the privacy of your information, but also simplify network management

Specifications:
Hardware Features:
Interface:
4 *1000Mbps LAN Ports
1 *1000Mbps WAN Port
Power Supply: 9V DC/0.8A
Antenna: 2 *5dBi fixed antenna(2.4GHz), 1 *5dBi fixed antennas(5GHz)
Button: 1 *RST/WPS Button
LED Indicators: 1 *Power, 1 *CPU, 1 *2.4G, 1 *5G, 1 *WAN, 4 *LAN

Wireless Features:
Standards: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
RF Frequency: 2.4¬2.4835GHz/5GHz
Data Rate:
2.4GHz: Up to 300Mbps
5GHz: Up to 433Mbps
EIRP:
2.4GHz < 20dBm
5GHz < 23dBm
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Reception Sensitivity - 2.4GHz:
11b 11M: 85 dBm
11g 54M: 72 dBm
11n HT20 MCS7: 69 dBm / HT40 MCS7: - 66 dBm
Reception Sensitivity - 5GHz:
11a 54M: 70 dBm
11ac HT80 MCS7: 53 dBm
11n HT20 MCS7: 67 dBm / HT40 MCS7: 64 dBm

Software Features:
Network:
Internet Setup: PPPoE/DHCP/Static IP
LAN/DHCP Setup: DHCP Server/DHCP Static Lease
Wireless(2.4GHz & 5GHz):
Multiple BSS
Multibridge(Repeater): Wireless Bridge/Wireless WAN
MAC Authentication
WDS
WPS
NAT/Routing:
Port Forwarding
DMZ/Twin IP
Port Trigger
Routing Table
Firewall:
Internet Access Control: IP/MAC Address filtering
Net Detector
Remote/Internal access list
Utility: VPN Server, DDNS, WOL, Host Scan
Traffic:
QoS Setup
Connection Control
Wired Port Setup
Management:
System Log
Administrator Setup
Firmware Upgrade
System Time
Configuration backup/restore

Environment:
Operating Temperature: 0 C¬40 C (32 F¬104 F)
Storage Temperature: -40 C ¬70 C (-40 F¬158 F)
Operating Humidity: 10%¬90% non-condensing
Storage Humidity: 5%¬90% non-condensing
