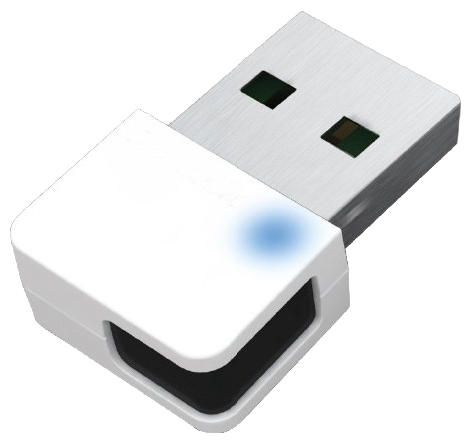

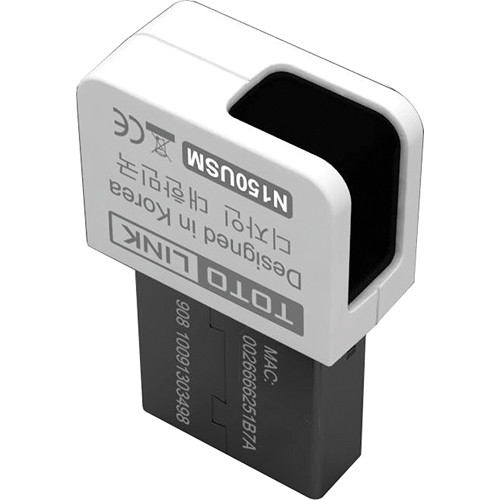

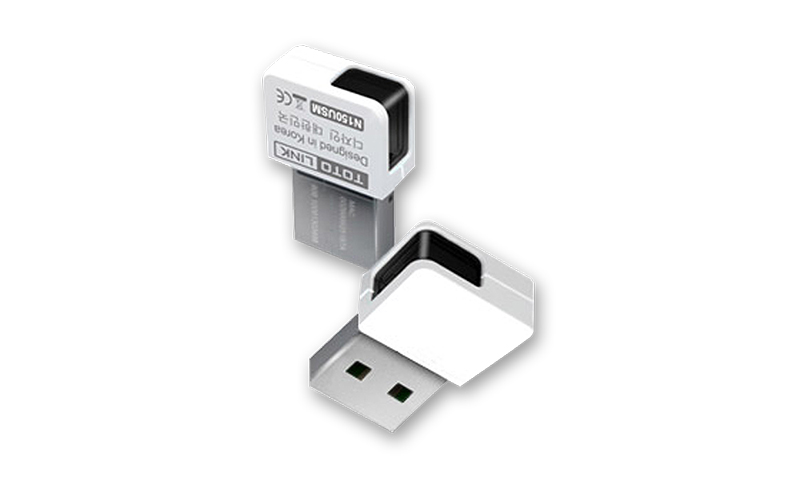

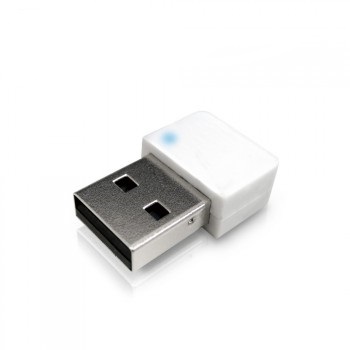

TOTOLINK - ZC-N150USM



TOTOLINK 802.11N/B/G 150M W/LESS USB MIN

Description

TOTOLINK N150USM, 150Mbps Wireless N Mini USB Adapter, complies with IEEE 802.11n and IEEE 802.11g/b standards for 2.4GHz wireless LAN, mini size design-portable for users, supports Windows XP, Vista, Win 7/Win 8, Linux and Mac OS.


Specification

Totolink 150Mbps Wireless N Mini USB Adapter

Features:
Complies with IEEE 802.11n/g/b standards for 2.4GHz Wireless LAN
Up to 150Mbps data rate for Wi-Fi network
Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK encryption
Supports infrastructure and Ad-Hoc network modes
Mini size design, portable for users
Supports Windows 10/8/7/XP/Vista (32/64-bit) and Linux

Specification:
Hardware features:
Interface: USB 2.0
Antenna: 1*internal antenna
LED Indicators: Status
Dimensions: 24.0mm * 15.6mm * 7.6mm

Environment:
Operation Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: 40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Wireless features:
Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
RF Frequency: 2.4~2.4835GHz
Data Rate:
802. 11n: up to 150Mbps
802.11g: Up to 54Mbps (dynamic)
802.11b: Up to 11Mbps (dynamic)
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Output Power: < 20dbm (EIRP)
Channels: 1-11 (North America), 1-13 (General Europe)
Modulation Type: DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)

Reception Sensitivity:
135M: 65 dBm@10% PER
54M: 68 dBm@10% PER
11M: 85 dBm@8% PER
6M: 88 dBm@10% PER
1M: 90 dBm@8% PER
