Specification

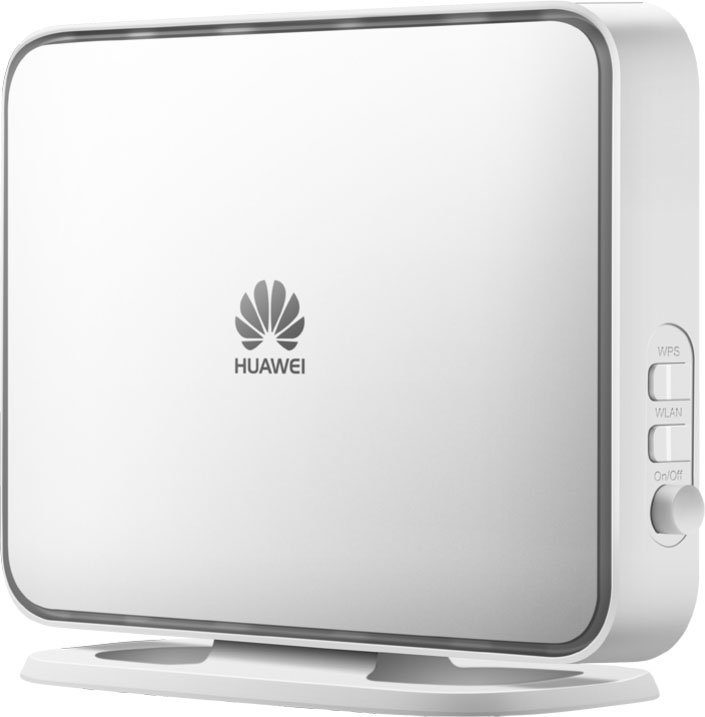

Huawei ADSL WiFi Router
Wireless:
Wi-Fi 802.11n 2T2R MIMO technology
Transmission rate up to 300Mbps
Backward compatible with 802.11 b/g
Multiple SSID's
Wi-Fi Protected Setup
2.4GHz band
Two high performance external antennas
Security: WEP, WPA, WPA2, AES and TKIP
Ports:
One ADSL2+ uplink port
Four 10/100Mbps Ethernet LAN ports, compliant with IEEE 802.3 and IEEE 802.3u
One LAN port configurable as an Ethernet uplink port
One USB 2.0 port
Antenna type: Two high performance external antennas
Operating frequency band: 2.4 - 2.4835GHz
Main functions:
Built in firewall
QoS traffic management
WDS
IP-MAC binding
Access control list (ACL)
NAT/NAPT
DHCP server and client
IPv6 supported
3G failover
Operating system requirement:
Windows (98, Me, NT4, 2000, XP, Vista, 7 or above)
MAC OS-X (10.5, 10.6, 10.7 or above)
Linux OS (2.4 or above)
Browser requirement:
Explorer 6.0 or above
Firefox 6.0 or above
Safari 3.0 or above
Benefits:
Ultra stable - Equipped with the latest ADSL chip solution
High speed - Complies with 802.11n Wi-Fi technology and transmission rate of up to 300Mbps
Great coverage - Powerful external antennas increase wireless signal penetration
Safeguard - The built-in firewall function will effectively block malicious attacks, including parental control
Eco-Friendly - Complies with European energy-saving standards
USB2.0 - Supports storage and print sharing
3G Dongle List:
The Huawei HG532f supports the following mobile bradband dongles:
Huawei E153
Huawei E173u-2
Huawei E173s-2
Huawei E367u-2
Huawei E1820
Huawei E353s-2
Huawei E303s-2
Huawei E3131s-2
D-Link DWM-156 A7
D-Link DWM-157
Huawei E3531
Huawei E3272 (LTE)
General:
Product Type: ADSL Router
Description: ADSL WiFi Router with 3G Failover
DSL Compliance: ADSL
Management: QoS, TR-069, WDS (AP+Bridge), WPS
Wi-Fi: Yes
Supported Standards: IEEE 802.11 b/g/n
Number of Antennas: 2 External
Ports:
LAN: 4
ADSL: 1
WAN: 1
USB Link Port: 1
Performance:
Network Protocols and Features: Firewall, QoS
LAN Data Rate: Fast Ethernet
Broadband: 3G
Wireless Data Rate: Up to 300Mbps
Frequency Range: 2.4GHz
Physical DImension:
Width: 103mm
Depth: 60mm
Height: 136mm
Weight: 200 grams
