Specification

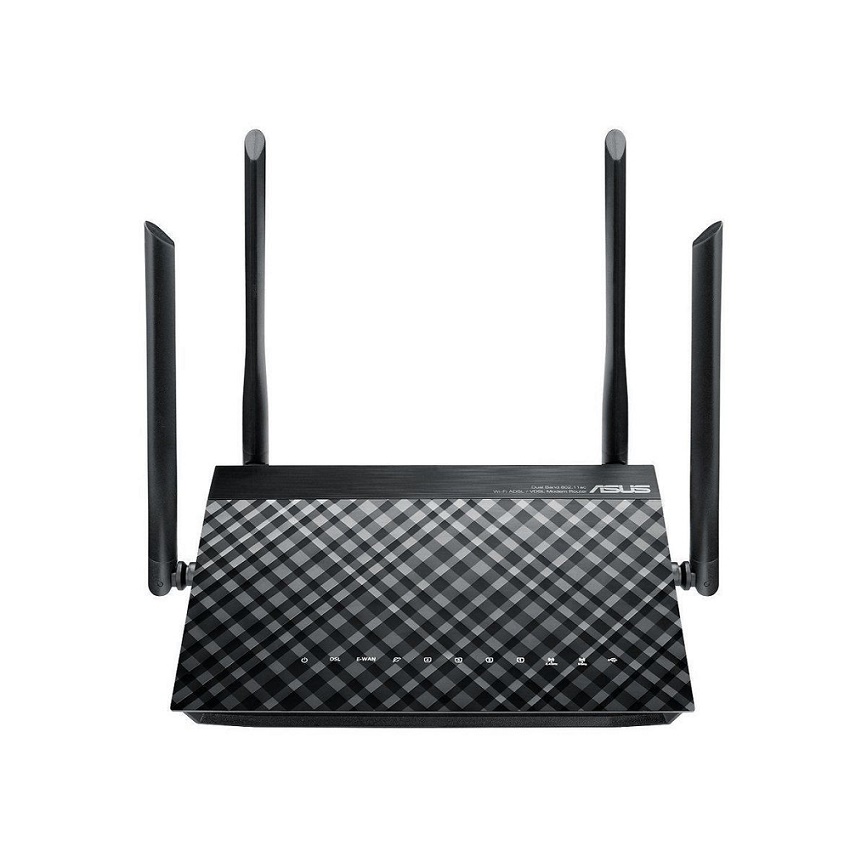

Asus AC52U Dual Band ADSL2/ADSL Router
Dual WAN ports for dual usage - Wi-Fi router and DSL modem
Compatible with ADSL2/2+, ADSL, VDSL2, fiber and cable services
Remote access to your home network via encryption and private connection
Monitor and filter internet activities for your families and children
Supports file sharing, printer sharing and 3G/4G support
Access, sync, share and stream your files anywhere, on any internet-connected device
Specifications:
Network Standard: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6
Product Segment: AC750 complete AC performance : 300+433 Mbps
Wi-Fi Data Rate:
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11ac : up to 433 Mbps
xDSL Data Rate:
VDSL2/ADSL2+/ADSL2/ADSL multimode
Support Annex A/B/I/J/L/M
Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
VDSL2 interface compliance with ITU-T G.993.2
ITU-T G.992.1 (G.dmt), Annex A, and B Compliant
ITU-T G.992.2 (G.lite), Annex A, and B Compliant
ANSI T1.413 Compliant
ITU-T G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
ITU-T G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
ITU-T G.993.2 Compliant, Annex A, B
ITU-T G.993.5 (Vectoring)
ITU-T G.998.4 (G.inp) Improved impulse noise protection
ATM and PTM (dual-priority)
VDSL2 Upstream: 150Mbps, Downstream: 200Mbps
ADSL2+ Upstream: 3.3Mbps, Downstream: 24Mbps
ADSL2 Upstream: 3.5Mbps, Downstream: 12Mbps
Antenna: External dBi antenna x 4
LED Indicator: Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, USB x 1
Button: WPS Button, Reset Button, Power Button, Wireless on/off Button
Ports:
1 x RJ11 for xDSL
4 x RJ45 10/100/1000 BaseT for LAN
1 x RJ45 10/100/1000 BaseT for WAN
USB Ports: USB 2.0 x 1
USB Applications:
Printer Server
FTP Server
Download Master
3G/4G sharing
Router Special Features: 3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
Operating Frequency:
2.4GHz
5GHz
Operation Channel: 13 Europe (ETSI)
Memory: 128MB NAND flash/128MB DDR3
Output Power
ac mode : 17 dBm
b mode : 20.5 dBm
g mode : 18.5 dBm
n mode : 17 dBm
a/n mode : 19 dBm
Security: 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK
Management:
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
UPnP IGD 1.0
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function
Power Adapter:
AC Input : 110 ~240 V(50~60HZ)
DC Output : 12 V/1.5 A
Power Consumption : 18 W Max.
Certificates: CE, Telepermit, RCM
Dimensions: 20.7 x 14.9 x 3.6 ~ cm (WxDxH) (Without Bezel)
OS Support:
Windows® 10
Windows® 8.1
Windows® 8
Windows® 7
Windows® Vista
Windows® 2000
Windows® XP
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
