Specification

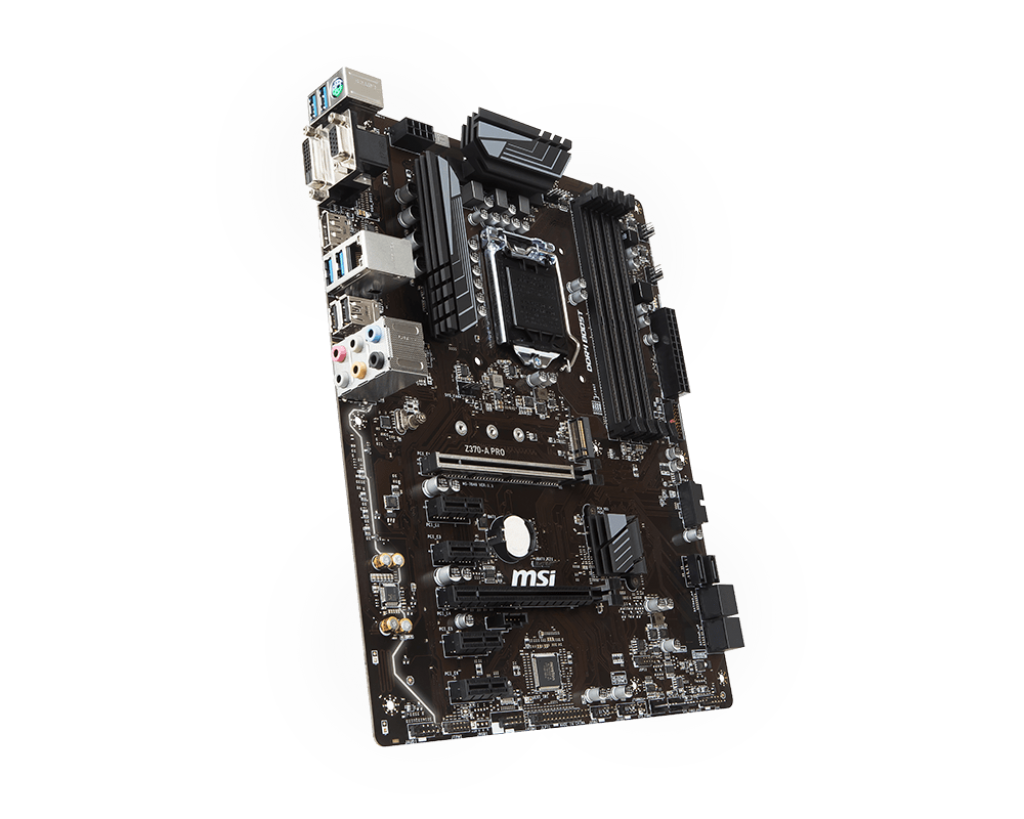

MSI Z370-A Pro Motherboard
Supports 8th Gen Intel Core/Pentium Celeron processors for LGA1151 socket
Supports DDR4 Memory, up to 4000+(OC) MHz
DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance
Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience
Multi-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire
Heavy plated heatsinks: Leading heatsink design, for maximum cooling
EZ Debug LED: Easiest way to troubleshoot
Turbo M.2: Delivering Speeds Up to 32Gbps, Intel Optane Memory Ready
PCI-E Steel Armor: Protecting VGA cards against bending and EMI
X-Boost: Great tool to boost your USB & Storage performance
Double ESD Protection: Double layer grounding motherboard mounting holes
Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favourites and search function
VR Ready: Best virtual reality game experience without latency, reduces motion sickness
Specifications:
CPU: Supports 8th Gen Intel Core processors, and Intel Pentium and Celeron processors for Socket LGA1151
Chipset: Intel Z370 Chipset
Main Memory:
4x DDR4 memory slots, support up to 64GB
Supports 4000+(OC)/3866/3733/3600/3466/3400/3333/3300/3200/3000/2800/2667/2400/2133 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports Intel Extreme Memory Profile (XMP)
Slots:
1x PCIe 3.0 x16 slot (PCI_E1, supports x16 mode)
1x PCIe 3.0 x16 slot (PCI_E4, supports x4 mode)
4x PCIe 3.0 x1 slots
Multi-GPU: Supports 2-Way AMD CrossFire Technology
Onboard Graphics:
1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1x DVI-D port, supports a maximum resoultion of 1920x1200@60Hz
1x Displayport, supports a maximum resolution of 4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz, 1920x1200@60Hz
Storage:
Intel Z370 Chipset
6x SATA 6Gbps ports
1x M.2 slot (Key M)
Supports Intel Smart Response Technology for Intel Core processors
RAID:
Intel Z370 Chipset
Support RAID 0, 1, 5 and RAID 10 for SATA storage devices
USB:
8x USB3.1 Gen1 (SuperSpeed USB) ports
6x USb2.0 (High-speed USB) ports
Audio:
Realtek ALC892 Codec
7.1Channel High Definition Audio
LAN: 1x RTL8111H Gigabit LAN controller
Internal I/O Connectors:
1x 24pin ATX main power connector
1x 8pin ATX 12V power connector
6x SATA 6Gbps connectors
2x USB3.1 Gen1 connectors (Support additional 4 USB3.1 Gen1 ports)
2x USB2.0 connectors (Supports additional 4 USB2.0 ports)
1x 4pin CPU fan connector
4x 4pin water pump fan connectors
4x 4pin system fan connectors
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Serial port connector
1x Parallel port connector
1x Thunderbolt Add-on Card Connector
1x Clear CMOS jumper
Back Panel I/O Ports:
1x PS/2 mouse & keyboard combo port
4x USB3.1 Gen1 Type-A ports
1x VGA port
1x DVI-D port
1x Displayport
1x LAN (RJ45) port
2x USB2.0 ports
6x audio jacks
Dimension:
12.0"x8.9" (30.5cm x 24.4cm)
ATX Form Factor
Mounting: 9 mounting holes
