Specification

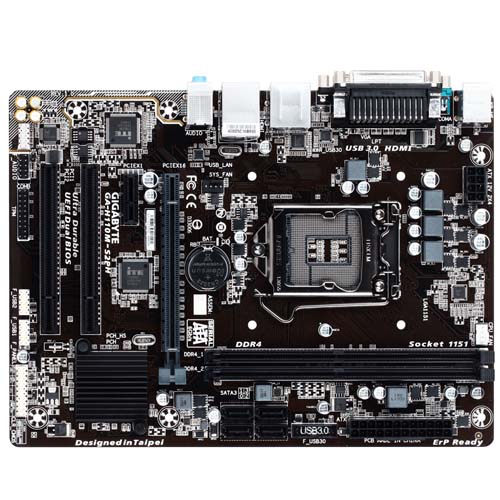

GIGABYTE H110M-S2PH Motherboard
Features:
Supports 6th Generation Intel® Core Processor
Dual Channel DDR4, 2 DIMMs
Fast USB 3.1 with USB Type-C -The World’s Next Universal Connector
8-channel HD Audio with High Quality Audio Capacitors
Audio Noise Guard with LED Trace Path Lighting
HDMI 1.4, DVI-D, D-sub ports for multiple display
Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
All new GIGABYTE APP Center, simple and easy use
Support Intel® Small Business Basics
Specifications:
CPU: Support for Intel® Core i7/ 5/ 3 processors/ Intel® Pentium® processors
L3 cache varies with CPU
Chipset: Intel® H110 Express Chipset
Memory:
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Onboard Graphics: Integrated Graphics Processor
Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
Maximum shared memory of 1024 MB
Audio:
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots:
1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface
Chipset: 4 x SATA 6Gb/s connectors
USB Chipset:
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB3.0/2.0 header
2 x USB2.0/1.1 headers
1 x serial port header
1 x TPM header
1 x Clear CMOS jumper
Back Panel Connectors:
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x parallel port
1 x serial port
1 x HDMI port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller: iTE I/O Controller Chip
H/W Monitoring:
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
BIOS:
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System:
Support for Windows 10/8.1 64-bit
Support for Windows 7 32-bit/64-bit
Form Factor: Micro ATX Form Factor, 24.4cm x 18.0cm
