Specification
ASUS TUF Z390-PRO GAMING ATX MOTHERBOARD
Features:
-SafeSlot, ESD guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability

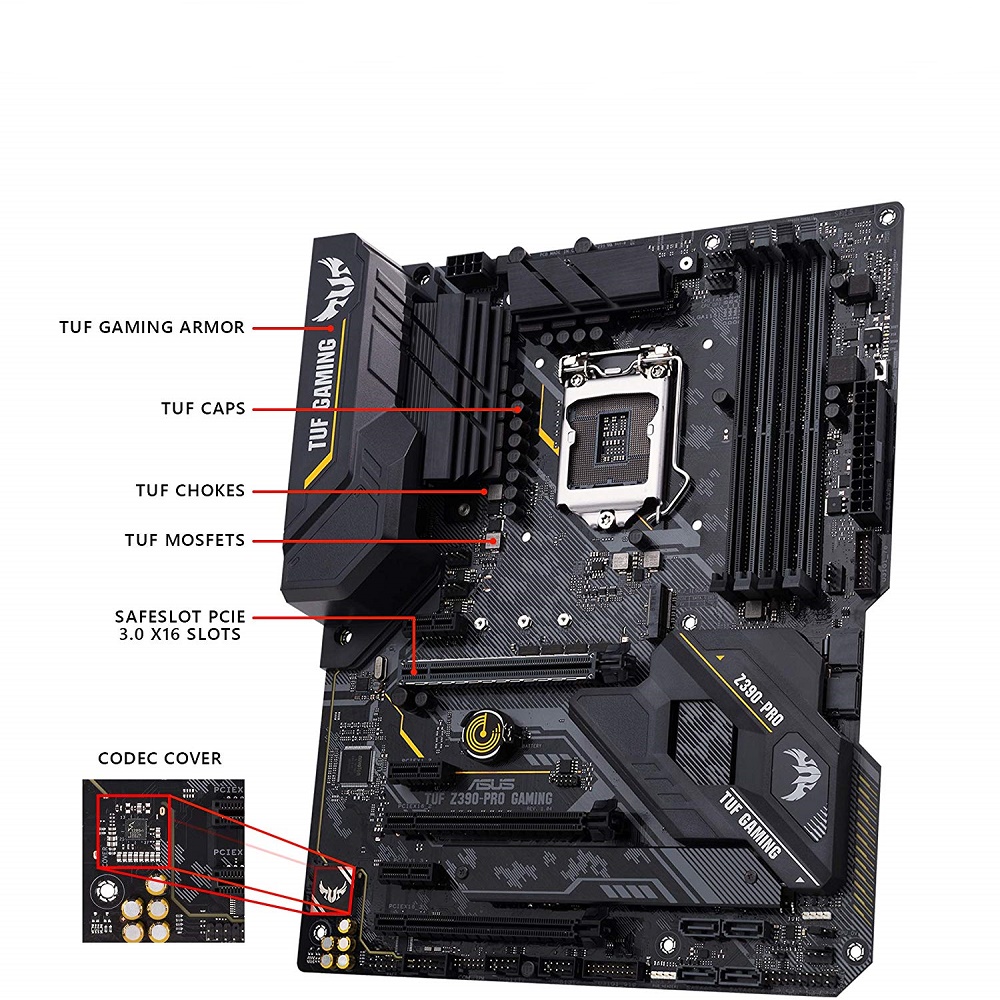

-TUF LANGuard, TUF chokes, TUF capacitors, and TUF MOSFETs for maximum durability
-Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
-Automatically fixes boot failures that arise due to memory overclocking and instability
-Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
-Ensures every fan achieves the best balance of cooling performance and acoustics
-Synchronize LED lighting with a vast portfolio of compatible PC gear
Specifications:
CPU:
Intel® Socket 1151 9th / 8th Gen Intel® Core, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 3.0
Chipset: Intel® Z390
Memory:
4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4133/4000/3866/3733/3600/3466/3400/3333/3300/3200/3000/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Graphic: Integrated Graphics Processor- Intel® UHD Graphics support
Multi-VGA output support: HDMI/DisplayPort ports
Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Multi-GPU Support:
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology
Expansion Slots:
2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**)
1 x PCIe 3.0/2.0 x16 (max at x2 mode)
3 x PCIe 3.0/2.0 x1
Storage:
Intel® Z390 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)
PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card
LAN:
Intel® I219V, featuring Turbo LAN
TUF LANGuard
Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
Audio:

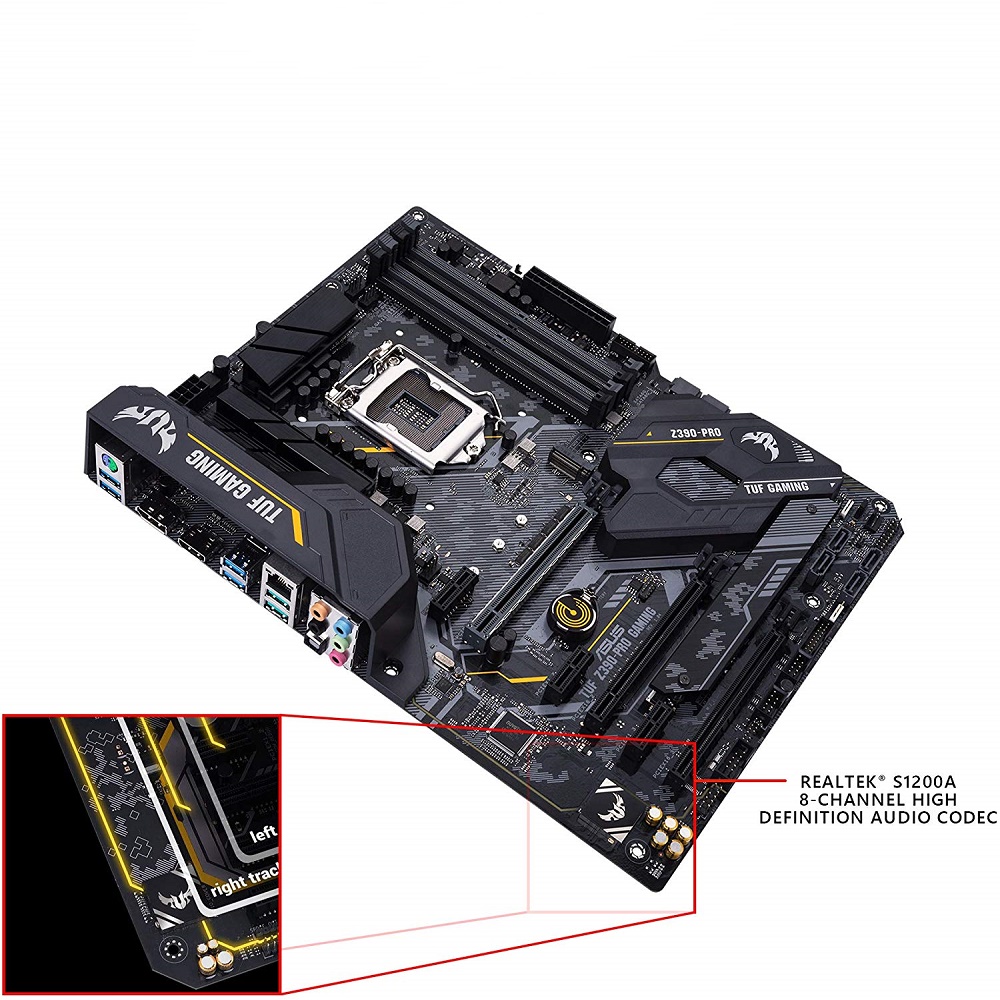

Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
Supports: Jack-detection, Front Panel Jack-retasking
USB Ports:
Intel® Z390 Chipset:
2 x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A)
8 x USB 3.1 Gen 1 port(s) (4 at back panel, Type-A, 4 at mid-board)
4 x USB 2.0/1.1 port(s) (4 at mid-board)
Back I/O Ports:
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A,
4 x USB 3.1 Gen 1 Type-A
1 x Optical S/PDIF out
5 x 8-channel Audio I/O
Internal I/O Ports:
2 x Aura RGB Strip Header(s)
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 1-port connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
3 x Chassis Fan connector(s) (4 -pin)
1 x AIO_PUMP connector
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x MemOK! II switch(es)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x System panel connector
1 x COM port header

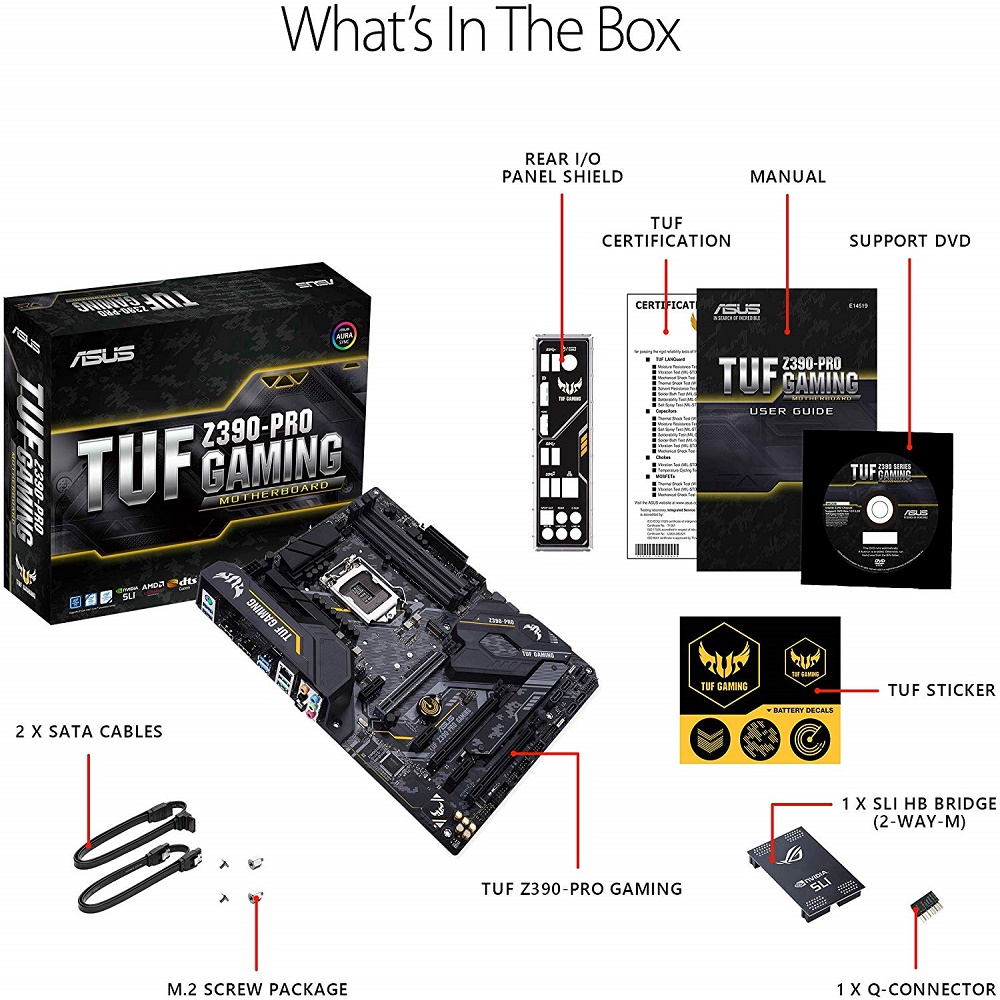

Accessories:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x TUF Gaming Sticker
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x TUF Certification card(s)
1 x SCD (by region)
Operating System: Windows® 10 64-bit
Form Factor: ATX Form Factor; 30.5 cm x 24.4 cm
